Dymax® 5000-EC UV Light-Curing Flood Lamp System
Dymax® 5000-EC UV Light-Curing Flood Lamp System
SKU:ULT-20b489
Experience reliable and efficient UV light-curing with the Dymax® 5000-EC Series Flood Lamp System. Ideal for quick and consistent curing in a compact design.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Dymax® 5000-EC UV Light-Curing Flood Lamp System
$799.99
Quantity: 1
Claim Your Seller Account
Dymax® 5000-EC UV Light-Curing Flood Lamp System
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

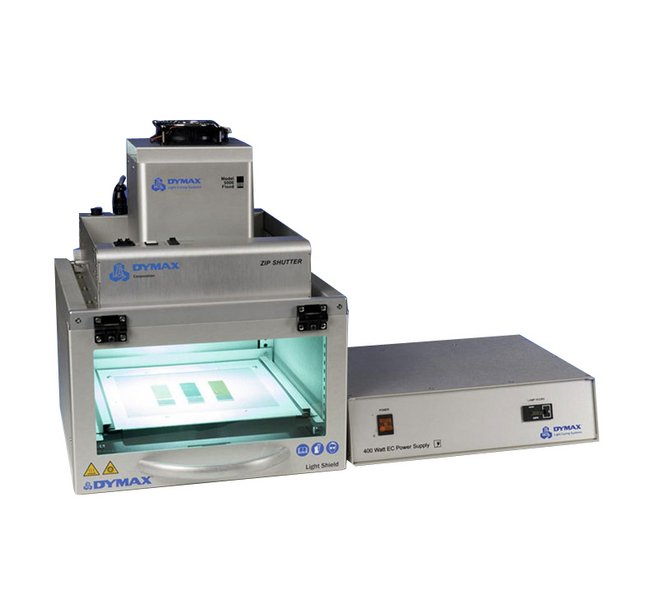

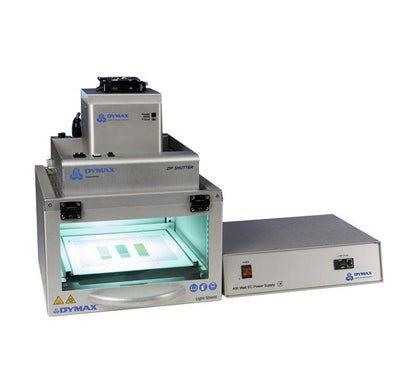

The Dymax® 5000-EC UV Light-Curing Flood Lamp System is engineered for precise curing applications, offering a consistent intensity over its 2,000-hour bulb lifespan. With a powerful output of up to 225 mW/cm², this system provides quick curing in a 5" x 5" or 8" x 8" area. Featuring options for shutters and shielding, versatile power supply, and compatibility with various industry-specific adhesives, this lamp system is ideal for bench-top use or integration into automated assembly processes.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories 0
Item # - 35572Description - Dymax® UV light-curing flood lamps require a five (5) minute warm up and five (5) minutes to cool down. For that reason, it is not practical to control exposure by turning lamps on/off. Shutters, however, can be used to control exposure time. Dymax® offers the "Manual shutter shown open" shutters for use with the 2000-EC and 5000-EC UV-curing flood systems.Low cost louvered shutter. Simple hand turn knob opens and closes shutter.Dimensions Dimensions (L x W x H) - 11.1" x 11.3" x 2.5" (28.2 cm x 28.7 cm x 6.4 cm)Item # - 37863Description - Dymax® UV light-curing flood lamps require a five (5) minute warm up and five (5) minutes to cool down. For that reason, it is not practical to control exposure by turning lamps on/off. Shutters, however, can be used to control exposure time. Dymax® offers the "ZIP⢠shutter shown open" shutters for use with the 2000-EC and 5000-EC UV-curing flood systems.Electronic, curtain-style shutter. Actuated via finger switch, foot pedal, or customer supplied switch (or PLC).Dimensions (L x W x H) - 13.5" x 11.75" x 4.5" (34.3 cm x 29.9 cm x 11.4 cm)Item # - 38071Description - Replacement CurtainDymax® UV light-curing flood lamps require a five (5) minute warm up and five (5) minutes to cool down. For that reason, it is not practical to control exposure by turning lamps on/off. Shutters, however, can be used to control exposure time. Dymax® offers the "ZIP⢠shutter shown open" shutters for use with the 2000-EC and 5000-EC UV-curing flood systems.Electronic, curtain-style shutter. Actuated via finger switch, foot pedal, or customer supplied switch (or PLC).Dimensions (L x W x H) - 13.5" x 11.75" x 4.5" (34.3 cm x 29.9 cm x 11.4 cm)Item # - 38290ECE 2000 Mounting Stand KitDescription - Dymax® offers two shielding options for its UV-curing flood systems, a mounting stand kit and a light shield.A simple and cost effective 3-sided shield that is removed manually. Not compatible with Dymax® shutters.Dimensions (L x W) - ECE 2000: 8.5" x 10.8" (21.6 x 27.4 cm)Item # - 38289ECE 5000 Mounting Stand KitDescription - Dymax® offers two shielding options for its UV-curing flood systems, a mounting stand kit and a light shield.A simple and cost effective 3-sided shield that is removed manually. Not compatible with Dymax® shutters.Dimensions (L x W) - ECE 5000: 7.0" x 6.1" (17.8 x 15.5 cm)Item # - 40785Description - Dymax® offers two shielding options for its UV-curing flood systems, a mounting stand kit and a light shield.360º shielding. Swing up door and slide out shelf. Compatible with Dymax® shutters.Inside Dimensions (W x D x H) - 13.2" x 12.5" x 8.3" (35.53 cm x 31.75 cm x 21.08 cm)Outside Dimensions (W x D x H) - 15.1" x 18.2" x 10.6" (38.42 cm x 46.25 cm x 26.83 cm)
Additional Information 0

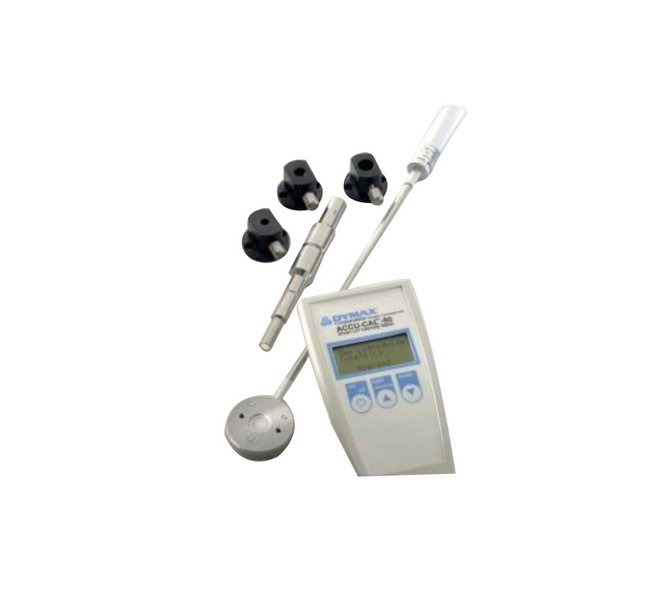

The intensity generated by Dymax® flood systems is very consistent. With continuous use, bulb degradation of less than 20% over the first 2,000 hours is typical. On/off cycles will accelerate bulb degradation.The ACCU-CAL⢠50 radiometer is simple to operate and offers repeatable measurement of UV light. The Dymax® ACCU-CAL⢠50 can measure UV light emitted from lightguides (3 mm, 5 mm, and 8 mm), UV flood systems, and UV conveyors.
Broad Spectrum Flood Lamps 0
Dymax® broad-spectrum flood curing systems use moderate- to high-intensity (105-350 mW/cm2) UV/visible light to cure UV light-curable adhesives, coatings, and inks in as little as 5-30 seconds. Systems are available with 5" x 5" (127 mm x 127 mm) or 8" x 8" (203 mm x 203 mm) curing areas. They come standard with a 400 watt metal-halide bulb but can be outfitted with longwave, shortwave, UV, and visible replacement bulbs to fit unique applications. All bulbs have a long service life and come with a 2,000 hour warranty.
Features 0
Powerful UV light-curing lamps (up to 225 mW/cm²) - Measured with a Dymax® ACCU-CAL⢠50 Radiometer (320-395 nm) at a lamp height of 3" using a standard metal halide bulb.Two bulb options (shortwave or longwave)Large curing area 5" x 5" or 8" x 8" (12.7 cm x 12.7 cm) or (20.3 cm x 20.3 cm)Adjustable lamp heightTypical cure times of 5-30 secondsBulbs are warranted for 2,000 hoursShutter that can be actuated by foot pedal or PLC100% shielding with safety interlock available
Housing Dimensions Housing Height
7.5 in | 19.1 cm
Housing Dimensions Housing Length
9 in | 22.9 cm
Housing Dimensions Housing Width
10.5 in | 26.7 cm
Illuminated Dimensions Illuminated Area Length
1 in | 2.5 cm
Illuminated Dimensions Illuminated Area Width
6 in | 15.2 cm
Light Emitting Diode Led Flood Curing Systems 0
Dymax® LED flood lamp systems use high-intensity LEDs to cure a 5" x 5" (12.7 cm x 12.7 cm) area. Because these flood systems use a high-intensity LED as the curing source they produce faster cure times, more consistent frequency and intensity output, a cooler curing environment for thermally sensitive substrates, and longer bulb life than conventional arc lamps. Systems are available in three different wavelength arrays (365, 385, and 405 nm) so users can fully optimize the curing process between their light-curable material and the curing system.
Manufacturing Notes 0
Intensity readings vary widely depending on the make and model of the radiometer. These intensities were measured with the ACCU-CAL⢠50 radiometer.
Replacement Bulb Model Numbers 0

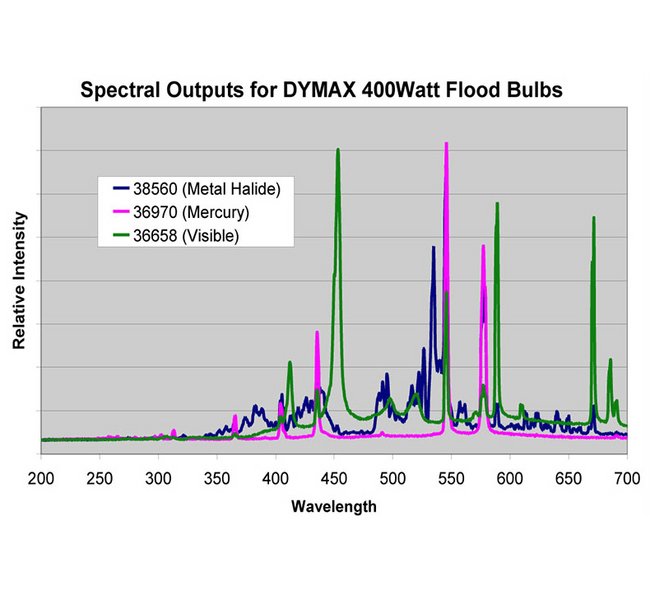

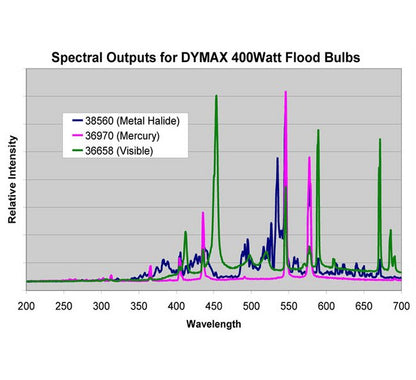

Item # - 38560Metal Halide (Standard, UVA, Longwave)Item # - 36970Mercury (UVB, Shortwave)Item # - 36658Visible
Specifications Bulb Options
36658 : Visible | 36970 : Mercury (UVB, Shortwave) | 38560 : Metal Halide (Standard, UVA, Longwave)
Specifications Curing Area
5 x 5 in | 12.7 cm
Specifications Housing Weight
3.4 lb | 1.5 kg
Specifications Industry Standards
European Conformity
Specifications Input Frequency
47 to 63 Hz
Specifications Output Power
400 W
Specifications Power Supply
90 to 264 V
Specifications Power Supply Height
4.25 in | 10.8 cm
Specifications Power Supply Length
12 in | 30.5 cm
Specifications Power Supply Weight
12.25 lb | 5.6 kg
Specifications Power Supply Width
16 in | 40.6 cm
Specifications Reflector Housing Height
20.3 cm | 8 in
Specifications Reflector Housing Length
17.2 cm | 6.75 in
Specifications Reflector Housing Width
17.2 cm | 6.75 in
Specifications System Options
With Mounting Stand
Specifications Type
5000-EC UV Light-Curing Flood System
Specifications Degradation
< 20 %
Specifications Intensity Output
225 mW/cm²
Specifications Ultraviolet A Uva Range
320 to 390 nm
Specifications Working Distance
5.08 to 15.24 cm | 2 to 6 in
