Dymax® Model 485 Series 1 Gallon Mountable Dispenser
Dymax® Model 485 Series 1 Gallon Mountable Dispenser
SKU:ADH-566390
Precision fluid dispensing with stroke adjustment for accurate volumes. Ideal for medical-device manufacturing.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Dymax® Model 485 Series 1 Gallon Mountable Dispenser
$699.99
Quantity: 1
Claim Your Seller Account
Dymax® Model 485 Series 1 Gallon Mountable Dispenser
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

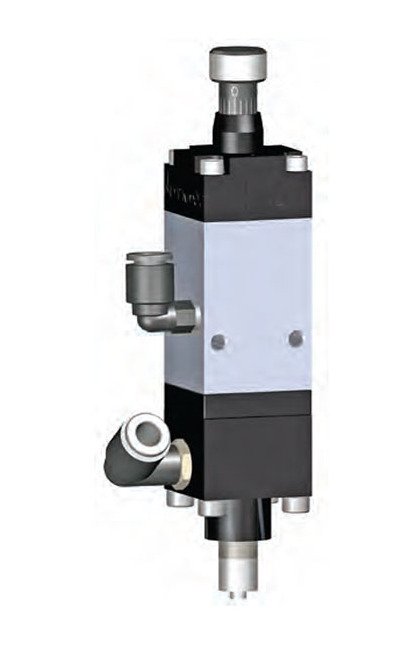

The Dymax® Model 485 Series 1 Gallon Mountable Dispenser is a precision-engineered dispensing system designed for delivering precise dots or fine beads of low- to high-viscosity fluids. With stroke adjustment for volume control and consistent deposits, this dispenser ensures accuracy in applications like glob-top and UV adhesive dispensing. Paired with the Dymax® DVC-345 bench-top valve controller and a 1-gallon cartridge reservoir, this dispenser is versatile for various setups, offering ease of use and reliability for medical-device manufacturing and beyond.
Product Specifications
Dimensions Depth
1.13 in | 2.87 cm
Dimensions Height
5.14 in | 13.06 cm
Dimensions Width
1.13 in | 2.87 cm
Features 0
Stroke adjustment for precise control over dispensing volumesShot-to-shot consistency when used with the DVC-345 controllerLightweight, easy to handle and mount in automated or bench-top systemsAble to dispense from pressurized cartridges, bottles, and pails (requires appropriate reservoir hardwareCompatible with most stand fluid packages and delivery systems
Specifications Activation
DVC-345 valve controller or 3-way solenoid valve
Specifications Alternating Current Ac Electrical Supply Controll
110 V | 220 V
Specifications Cartridge Reservoir Capacity
1 gal | Up to 3.8 L
Specifications Construction Materials
Stainless Steel (SS) (Wetted Path); Silicone (Wette Valve Seals) | Stainless Steel (SS), Anodized Aluminum (Body); Acetal
Specifications Industry Standards
European Conformity
Specifications Maximum Air Pressure
80 psi | 5.5 bar
Specifications Operating Air Pressure
60 to 80 psi | 4.1 to 5.5 bar
Specifications Valve Air Inlet Thread
10 to 32
Specifications Valve Fluid Inlet National Pipe Thread Npt
1/8 in | 3.2 mm
Specifications Valve Type
Normally Closed | Pneumatic Needle
Specifications Warranty
1 year
Specifications Weight
7.2 oz | 0.2 kg
