Dymax® UV Flood Light Shield for 1200-EC, 2000-EC, 5000-EC

Name: Dymax® UV Flood Light Shield for 1200-EC, 2000-EC, 5000-EC
Brand: Dymax Corp.
SKU: ULT-3efeff
Price: 299.99 USD
Availability: OutOfStock

Optimize UV curing with 360º protection & easy access.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

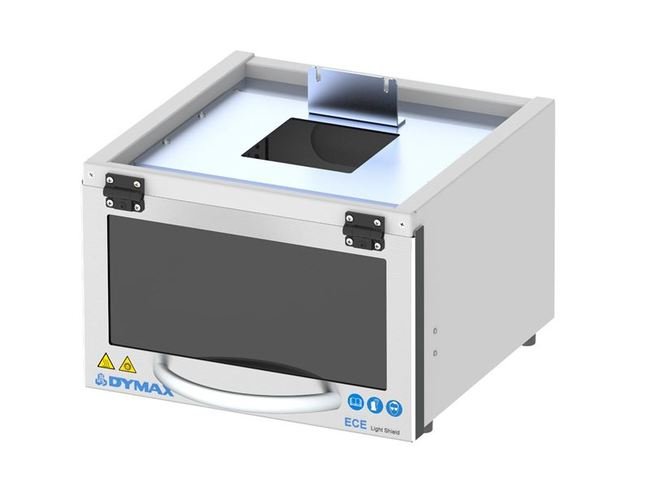

Enhance the performance of your UV light-curing flood lamp systems with the Dymax® UV Flood Light Shield. This shield offers 360º protection with a lifting door and sliding curing shelf, ensuring optimal UV exposure while maintaining safety standards. Compatible with Dymax® Shutters for added functionality and convenience. With adjustable heights and a fireproof tray for added safety, this shield is designed to meet the stringent requirements of institutional and government buyers.

Product Specifications

Additional Information 0

The doors have an interlock switch that can be installed when being used with an electric ZIPâ¢ shutter and power supply to prevent the shutter from being open when the light shield door is open. The included fireproof tray slides along the adjustable height rails and can be removed and replaced with ease.

Features 0

Offers 360Âº protectionAdjustable heights

Inside Dimensions Inside Height

8.0 in | 20.3 cm

Inside Dimensions Inside Length

14.9 in | 37.8 cm

Inside Dimensions Inside Width

10.6 in | 26.9 cm

Overall Dimensions Overall Depth

18.0 in | 45.7 cm

Overall Dimensions Overall Height

10.8 in | 27.4 cm

Overall Dimensions Overall Width

17.3 in | 43.9 cm

Specifications Certifications

Global Except Europe

Specifications Compatible Dymax Bulbs

Optional - 400 Watt Hg Vapor Bulb | Optional - 400 Watt Visible Bulb | Standard - 400 Watt Metal Halide Bulb

Specifications Compatible Dymax Flood Lamps

1200-EC | 2000-EC | 5000-EC

Specifications Door Operation Modes

Door Interlocked Option is Available with ZIPâ¢ Shutters only

Specifications Part Accommodation

0 to 7.5 in | 19.1 cm

Specifications Weight

14 lb | 6.4 kg

Specifications Work Area

10 x 10 in | 25.4 x 25.4 cm

Specifications Work Surface Adjustment From The Bottom Of The En

2 to 6.5 in | 5.1 to 16.5 cm

Specifications Work Surface Load Capacity

0 to 5 lb

Dymax® UV Flood Light Shield for 1200-EC, 2000-EC, 5000-EC
