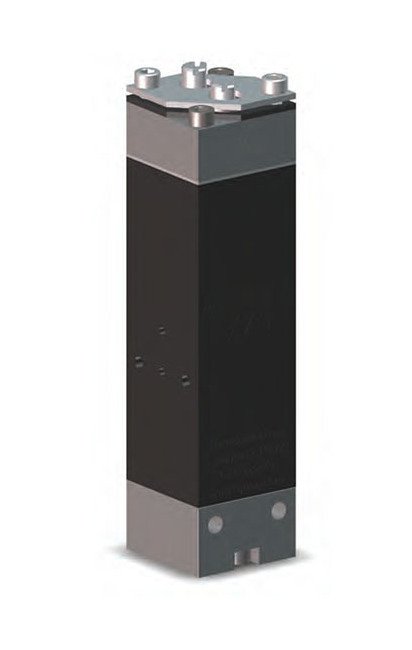

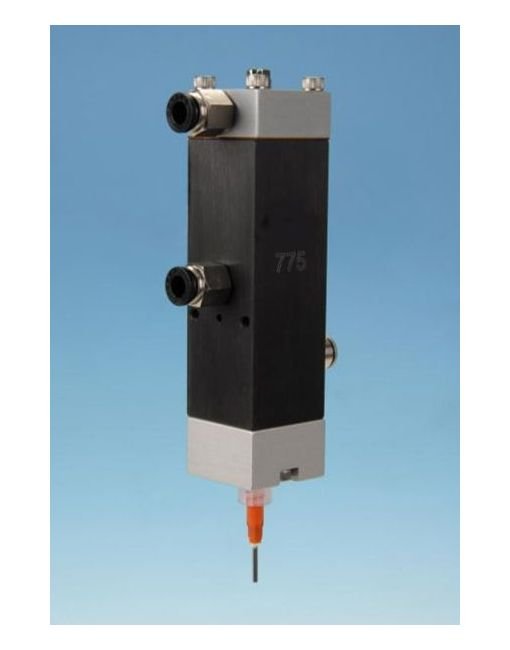

The Dymax® 775 Series Spool Control Valve is engineered for precise dispensing of medium- to high-viscosity fluids. Featuring adjustable suck back and flow control, this valve ensures accurate dispensing from 0.01 mL to 50 mL, making it ideal for automated applications. With PTFE or Fluoroelastomer seals, lightweight construction, and compatibility with various fluid delivery systems, the Model 775 valve offers clean shut-off, accuracy, and ease of handling.
Product Specifications
Accessories 0
Item # - T15450Description - Valve Mounting Assembly
Benefits 0
Provides a crisp, clean shut-off of materials eliminating droplets and skinning-over at the end of the dispense tipValve is compatible with a larger variety of fluidsProvides accurate dispensing in shots from 0.01 mL to 50 mLLock prevents drifting or tamperingCompatible with most standard fluid packages and delivery systems Easy to handle and mount in automated or bench-top systems
Features 0
Adjustable suck-back for crisp, clean shut-off of materialsAvailable with PTFE or Fluoroelastomer sealsAdjustable and lockable flow control for accurate dispensing shotsAble to dispense from pressurized cartridges, bottles, and pails (requires appropriate reservoir hardware)Lightweight for easy handling and mounting
Specifications Activation
3-Way Solenoid Valve | DVC-345
Specifications Construction Materials
Fluoroelastomer | PTFE
Specifications Seal Material
PTFE
Specifications Thread Size
1/4-28
Specifications Thread Type
National Pipe Thread (NPT)
Specifications Type
No Reservoir

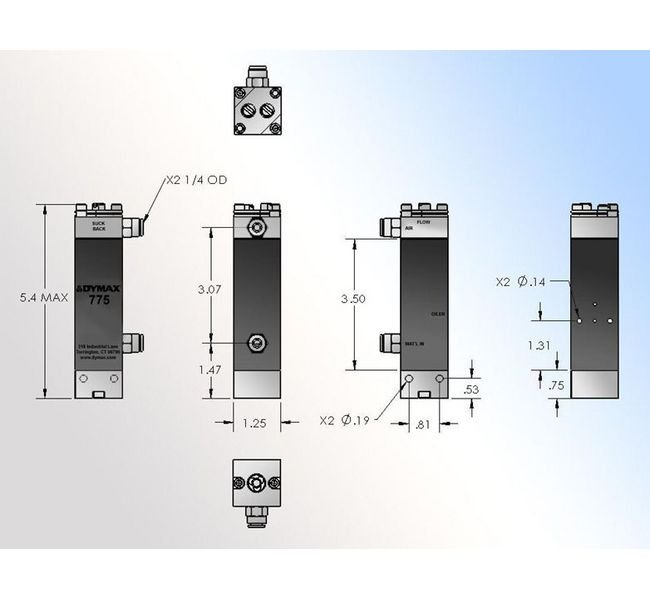

Specifications Valve Depth
1.25 in | 3.18 cm
Specifications Valve Height
5.42 in | 13.77 cm
Specifications Valve Type
Modified Spool, Normally Closed
Specifications Valve Width
1.25 in | 3.18 cm
System Includes 0
All systems includeModel 775 ValveSelected ReservoirFluid Line KitsStandAir Precision RegulatorAir Line KitsAir Filter/RegulatorTip Kit
