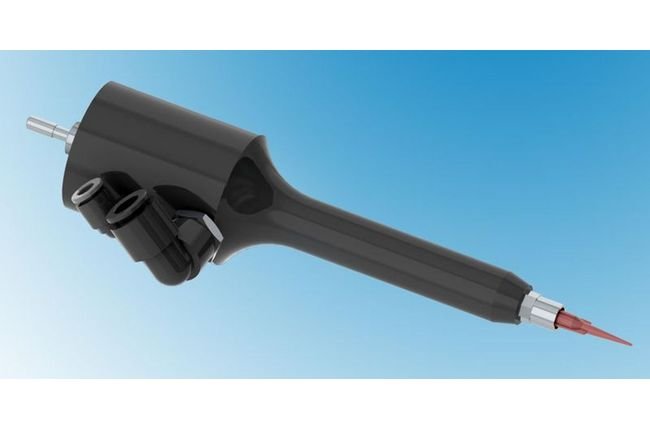

Dymax® Model 300 Series Handheld Dispenser

Dymax® Model 300 Series Handheld Dispenser

SKU:ADH-8ca81b

Achieve precise and repeatable fluid dispensing with the Dymax® Model 300 Handheld Dispenser. Easy handling and minimal maintenance for various material applications.

Regular price $249.99
Regular price Sale price $249.99
Sale

Initiate Order

Dymax® Model 300 Series Handheld Dispenser

Dymax® Model 300 Series Handheld Dispenser

$249.99

Quantity: 1

Claim Your Seller Account

Dymax® Model 300 Series Handheld Dispenser

Dymax® Model 300 Series Handheld Dispenser

$249.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Dymax® Model 300 Series Handheld Dispenser offers precise and repeatable fluid dispensing, making it ideal for low-to-medium viscosity fluids like light-curable materials and solvents. Its compact design and material flow adjustment feature ensure accurate shot volume control while minimizing damage to internal components. This dispenser is easy to handle, requires minimal maintenance, and includes a 1-year warranty for added reliability. Suitable for various materials, it delivers shot-to-shot consistency when used with the DVC-345 controller.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

Product Specifications

Accessories 0
Item# - T11146Power Requirements 120 VAC, 240 VAC, 50/60 Hz, 1/10 AmpDimensions - 6.25" x 8" x 3.5" [15.9 cm x 20.3 cm x 8.9 cm]Weight - 2.8 lb [1.27 kg]The DVC-345 digital valve controller provides precise and consistent valve actuation without complex programming. Its internal 4-way solenoid valve operates Dymax® or other pneumatic dispense valves. This controller may be operated via foot switch, manual front panel switch, or remote PLC. Cycle time may be set in a range from 0.001 to 9.999 seconds in 0.001 second increments.Item# - T170041 Gallon Bottle Drop-In TankCapacity - 1 galFor applications where large amounts of material are being dispensed, Dymax® offers pressure tanks that can accept bottle and pail size packages. These pressure-tanks have a fully removable lids, allowing for an entire bottle or pail to be placed inside.Item# - T178595 Gallon Bottle Drop-In TankCapacity - 5 galFor applications where large amounts of material are being dispensed, Dymax® offers pressure tanks that can accept bottle and pail size packages. These pressure-tanks have a fully removable lids, allowing for an entire bottle or pail to be placed inside.Item# - T1686410 Gallon Pail Drop-In TankCapacity - 10 galFor applications where large amounts of material are being dispensed, Dymax® offers pressure tanks that can accept bottle and pail size packages. These pressure-tanks have a fully removable lids, allowing for an entire bottle or pail to be placed inside. Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 14Color - WhiteInner Diameter - 0.063" [1.60 mm]Length - 1.25" [31.75 mm]Item# - T16-125-TT-50 (Value Line)Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 16Color - CharcoalInner Diameter - 0.047" [1.19 mm]Length - 1.25" [31.75 mm]Item# - T18-125-TT-50 (Value Line)Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 18Color - GreenInner Diameter - 0.033" [0.84 mm]Length - 1.25" [31.75 mm]Item# - T20-125-TT-50 (Value Line)Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 20Color - PinkInner Diameter - 0.023" [0.58 mm]Length - 1.25" [31.75 mm]Item# - T22-125-TT-50 (Value Line)Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 22Color - BlueInner Diameter - 0.016" [0.41 mm]Length - 1.25" [31.75 mm]Item# - T25-125-TT-50 (Value Line)Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 25Color - RedInner Diameter - 0.010" [0.25 mm]Length - 1.25" [31.75 mm]Item# - P3230 (Premium Line)Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 14Color - WhiteInner Diameter - 0.063" [1.60 mm]Length - 1.25" [31.75 mm]Item# - P3231 (Premium Line)Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 16Color - CharcoalInner Diameter - 0.047" [1.19 mm]Length - 1.25" [31.75 mm]Item# - P3232 (Premium Line)Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 18Color - GreenInner Diameter - 0.033" [0.84 mm]Length - 1.25" [31.75 mm]Item# - P3233 (Premium Line)Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 20Color - PinkInner Diameter - 0.023" [0.58 mm]Length - 1.25" [31.75 mm]Item# - P3247 (Premium Line)Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 25Color - RedInner Diameter - 0.010" [0.25 mm]Length - 1.25" [31.75 mm]item# - T15-050-PP-50 (Value Line)Polypropylene Flexible Dispensing Tips (sold in packages of 50)Polypropylene dispensing tips are ideal for difficult-to-reach applications. These soft, flexible tips prevent scratching of the part when the needle comes in contact with the work surface.Gauge - 15Color - AmberLength - 0.5" [12.7 mm]Inner Diameter - 0.052" [1.32 mm]item# - T18-050-PP-50 (Value Line)Polypropylene Flexible Dispensing Tips (sold in packages of 50)Polypropylene dispensing tips are ideal for difficult-to-reach applications. These soft, flexible tips prevent scratching of the part when the needle comes in contact with the work surface.Gauge - 18Color - GreenLength - 0.5" [12.7 mm]Inner Diameter - 0.033" [0.84 mm]item# - T20-050-PP-50 (Value Line)Polypropylene Flexible Dispensing Tips (sold in packages of 50)Polypropylene dispensing tips are ideal for difficult-to-reach applications. These soft, flexible tips prevent scratching of the part when the needle comes in contact with the work surface.Gauge - 20Color - PinkLength - 0.5" [12.7 mm]Inner Diameter - 0.023" [0.58 mm]item# - T25-050-PP-50 (Value Line)Polypropylene Flexible Dispensing Tips (sold in packages of 50)Polypropylene dispensing tips are ideal for difficult-to-reach applications. These soft, flexible tips prevent scratching of the part when the needle comes in contact with the work surface.Gauge - 25Color - RedLength - 0.5" [12.7 mm]Inner Diameter - 0.010" [0.25 mm]Item# - T020-050-TL-50 (Value Line)PTFE-Lined Dispensing Tips (Sold in packages of 50)PTFE-lined needle tips are ideal for dispensing low-viscosity fluids. They resist clogging, making them great for use with gel cyanoacrylates. PTFE-lined dispensing tips can also be used with anaerobics, solvents, epoxies, grease, oils, pastes, and more. (Value Line)Gauge - 21Color - GrayLength - 0.5" [12.7 mm]Inner Diameter - 0.020" [0.51 mm]Item# - T006-050-TL-50 (Value Line)PTFE-Lined Dispensing Tips (Sold in packages of 50)PTFE-lined needle tips are ideal for dispensing low-viscosity fluids. They resist clogging, making them great for use with gel cyanoacrylates. PTFE-lined dispensing tips can also be used with anaerobics, solvents, epoxies, grease, oils, pastes, and more. (Value Line)Gauge - 30Color - PinkLength - 0.5" [12.7 mm]Inner Diameter - 0.006" [0.15 mm]Item# - T14-050-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 14Color - WhiteLength - 0.5" [12.7 mm]Inner Diameter - 0.063” [1.60 mm]Item# - T15-050-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 15Color - AmberLength - 0.5" [12.7 mm]Inner Diameter - 0.052" [1.32 mm]Item# - T16-050-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 16Color - CharcoalLength - 0.5" [12.7 mm]Inner Diameter - 0.047" [1.19 mm]Item# - T18-050-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 18Color - GreenLength - 0.5" [12.7 mm]Inner Diameter - 0.033" [0.84 mm]Item# - T20-050-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 20Color - PinkLength - 0.5" [12.7 mm]Inner Diameter - 0.023" [0.58 mm]Item# - T21-050-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 21Color - PurpleLength - 0.5" [12.7 mm]Inner Diameter - 0.020" [0.51 mm]Item# - T23-050-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 23Color - OrangeLength - 0.5" [12.7 mm]Inner Diameter - 0.016" [0.41 mm]Item# - T25-050-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 25Color - RedLength - 0.5" [12.7 mm]Inner Diameter - 0.010" [0.25 mm]Item# - T27-050-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 27Color - GrayLength - 0.5" [12.7 mm]Inner Diameter - 0.008" [0.20 mm]Item# - T30-050-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 30Color - LavenderLength - 0.5" [12.7 mm]Inner Diameter - 0.006" [0.15 mm]Item# - T14-100-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 14Color - WhiteLength - 1" [25.4 mm]Inner Diameter - 0.063" [1.60 mm]Item# - T15-100-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 15Color - AmberLength - 1" [25.4 mm]Inner Diameter - 0.052" [1.32 mm]Item# - T16-100-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 16Color - CharcoalLength - 1" [25.4 mm]Inner Diameter - 0.047" [1.19 mm]Item# - T18-100-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 18Color - GreenLength - 1" [25.4 mm]Inner Diameter - 0.033" [0.84 mm]Item# - T20-100-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 20Color - PinkLength - 1" [25.4 mm]Inner Diameter - 0.023" [0.58 mm]Item# - T21-100-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 21Color - PurpleLength - 1" [25.4 mm]Inner Diameter - 0.020" [0.51 mm]Item# - T23-100-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 23Color - OrangeLength - 1" [25.4 mm]Inner Diameter - 0.016" [0.41 mm]Item# - T25-100-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 25Color - RedLength - 1" [25.4 mm]Inner Diameter - 0.010" [0.25 mm]Item# - T27-100-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 27Color - GrayLength - 1" [25.4 mm]Inner Diameter - 0.008" [0.20 mm]Item# - P3169 (Premium Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 15Color - AmberLength - 0.5" [12.7 mm]Inner Diameter - 0.052" [1.32 mm]Item# - P3170 (Premium Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 18Color - Green Length - 0.5" [12.7 mm]Inner Diameter - 0.033" [0.84 mm]Item# - P3171 (Premium Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 21Color - PurpleLength - 0.5" [12.7 mm]Inner Diameter - 0.020" [0.51 mm]Item# - P3172 (Premium Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 23Color - OrangeLength - 0.5" [12.7 mm]Inner Diameter - 0.016" [0.41 mm]Item# - P3175 (Premium Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 15Color - AmberLength - 1" [25.4 mm]Inner Diameter - 0.052" [1.32 mm]Item# - P3176 (Premium Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 18Color - Green Length - 1" [25.4 mm]Inner Diameter - 0.033" [0.84 mm]Item# - P3178 (Premium Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 21Color - PurpleLength - 1" [25.4 mm]Inner Diameter - 0.020" [0.51 mm]Item# - P3177 (Premium Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 23Color - OrangeLength - 1" [25.4 mm]Inner Diameter - 0.016" [0.41 mm]Item# - P3431 (Premium Line)Opaque Free-Flow Taper Tips (sold in packages of 10)Opaque free-flow taper tips are molded from polyethylene.Gauge - 14Color - White - OpaqueLength - 1.25" [31.75 mm]Inner Diameter - 0.063" [1.60 mm]Item# - P3432 (Premium Line)Opaque Free-Flow Taper Tips (sold in packages of 10)Opaque free-flow taper tips are molded from polyethylene.Gauge - 18Color - Green - OpaqueLength - 1.25" [31.75 mm]Inner Diameter - 0.033" [0.84 mm]Item# - P3433 (Premium Line)Opaque Free-Flow Taper Tips (sold in packages of 10)Opaque free-flow taper tips are molded from polyethylene.Gauge - 22Color - Blue - OpaqueLength - 1.25" [31.75 mm]Inner Diameter - 0.016" [0.41 mm]Item# - P3434 (Premium Line)Opaque Free-Flow Taper Tips (sold in packages of 10)Opaque free-flow taper tips are molded from polyethylene.Gauge - 25Color - Red - OpaqueLength - 1.25" [31.75 mm]Inner Diameter - 0.010" [0.25 mm]Item# - T16307Air Filter Regulator with Air Shut OffAccurately monitor and control your dispensing system’s air pressure to achieve accurate dispensing.Item# - T16629High-Precision Air Regulator for Fluid PressureAccurately monitor and control your dispensing system’s air pressure to achieve accurate dispensing.Item# - T17286Precision Air Regulator, 0-15 PSI (For Use with Spray Guns)Accurately monitor and control your dispensing system’s air pressure to achieve accurate dispensing.Item# - T17289Precision Air Regulator,0-30 PSI (For Use with Spray Guns)Accurately monitor and control your dispensing system’s air pressure to achieve accurate dispensing..Item# - T167873/8" OD Polyethylene Fluid-Line Kit, 6' LongOuter Diameter 3/8 inLength 6 ftMaterial lines carry fluid from the reservoir to the dispensing valve.Item# - T167931/4" OD Polyethylene Fluid-Line Kit, 6' LongOuter Diameter - 1/4 inLength - 6 ftMaterial lines carry fluid from the reservoir to the dispensing valve.
Benefits 0
Minimizes damage to the valve’s actuating components and requires less maintenanceWhen maintenance is necessary, it is simple and quick to perform, minimizing production down-timeSuitable for low- to high-viscosity fluidsShot-to-shot consistency (when used with the DVC-345 controller)Easy and comfortable to handle
Features 0
Ideal for low-to-medium viscosity fluidsDiaphragm design minimizes necessary maintenanceMaterial flow adjustment for precise control over dispense volumes
Specifications Activation
2-Position | 4-Way Solenoid Valve | DVC-345 Valve Controller
Specifications Alternating Current Ac Voltage
110 V | 220 V
Specifications Capacity
<15 L
Specifications Depth
1.75 in | 4.45 cm
Specifications Fluid Line Size
6 ft
Specifications Fluid Line Tubing Outer Diameter Od
3/8 in | 9.5 mm

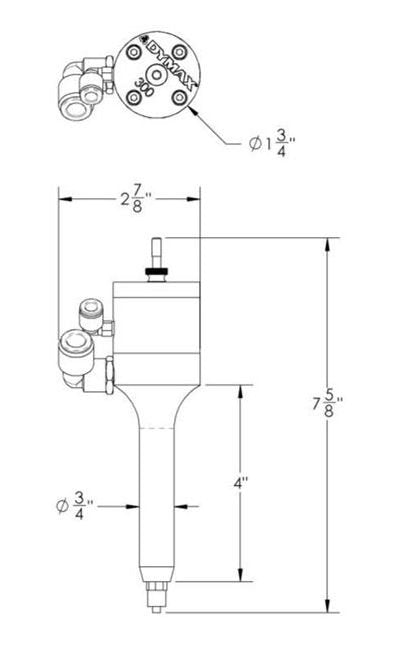

Specifications Height
7.63 in | 19.37 cm
Specifications Industry Standards
European Conformity
Specifications Maximum Inlet Fluid Pressure
80 psi | 5.5 bar
Specifications Operating Air Pressure
60 to 100 psi | 4.1 to 6.9 bar
Specifications Pressure Gauges
0 to 30 psi | 0 to 60 psi | 0 to 100 psi | 0 to 2 bar | 0 to 4.1 bar | 0 to 6.9 bar
Specifications Regulator Pressure
0 to 100 psi | 0 to 6.9 bar
Specifications Type
Pail Drop-In
Specifications Valve Air Inlet Thread
10-32
Specifications Valve Construction Materials Wetted Parts
Acetal | Polyethylene | PolyTetraFluoroEthylene (PTFE)
Specifications Valve Fluid Inlet Thread Size
1/8 in | 3.2 mm
Specifications Valve Fluid Inlet Thread Type
National Pipe Thread (NPT)
Specifications Valve Type
Handheld Diaphragm, Normally Closed
Specifications Valve Warranty
1 Year from Purchase
Specifications Valve Weight
3.7 oz | 105 g

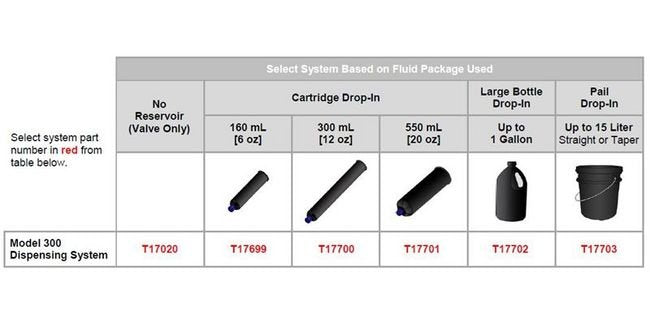

System Includes 0
All systems includeModel 300 ValveDVC-345 ControllerSelected ReservoirFluid Line KitsValve StandAir Precision RegulatorAir Line KitsAir Filter/RegulatorTip Kit
