Dymax® ZIP™ Shutter for UV Lamp Control & Safety
Dymax® ZIP™ Shutter for UV Lamp Control & Safety
SKU:ULT-69d35b
Enhance UV lamp control and operator safety with the Dymax® ZIP™ Shutter. Achieve precise exposure times effortlessly.
Regular price
$229.99
Regular price
Sale price
$229.99
Unit price
per
Initiate Order
Dymax® ZIP™ Shutter for UV Lamp Control & Safety
$229.99
Quantity: 1
Claim Your Seller Account
Dymax® ZIP™ Shutter for UV Lamp Control & Safety
$229.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

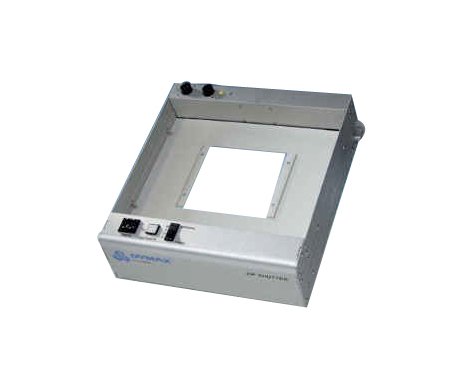

The Dymax® ZIP™ Shutter is a crucial accessory designed for use with Dymax® UV flood lamps to provide precise control over UV exposure time and ensure operator safety. It effectively prevents operator exposure to harmful UV light when opening shields. Featuring compatibility with Dymax® 2000 Series and 5000 Series flood lamps, this shutter allows for continuous operation, reducing the need for frequent lamp on/off cycles that can impact bulb longevity. With timed and manual modes, operators can easily control exposure durations and load/unload items without UV exposure, making it an essential tool for UV curing applications.
Product Specifications
Additional Information 0
Objects may be loaded and unloaded from beneath the shutter when it is shut without exposing operators to ultraviolet light. In addition, precise control of exposure times can be achieved.The shutter can be operated in two modes: Timed and Manual. In timed mode, the shutter opens by pressing a button on the front panel or by activating the remote switch (i.e. foot pedal switch), and remains open for a user-specified period of time.In the manual mode, pressing the button on the front panel or remote switch (i.e. foot pedal) opens the shutter and releasing the button closes the shutter.
Note 0
Includes shutter & foot pedal switch with connector cable.
Specifications Accuracy And Repeatability For Settings Above 30
2 s
Specifications Accuracy And Repeatability For Settings Below 30
1 s
Specifications Approval
CE Marked
Specifications Compatible Dymax Flood Lamps
Dymax® 2000 Series | Dymax® 5000 Series
Specifications Increment Range
1 s
Specifications Range
1 to 99 s
Specifications Remote Control
Via Foot Pedal
