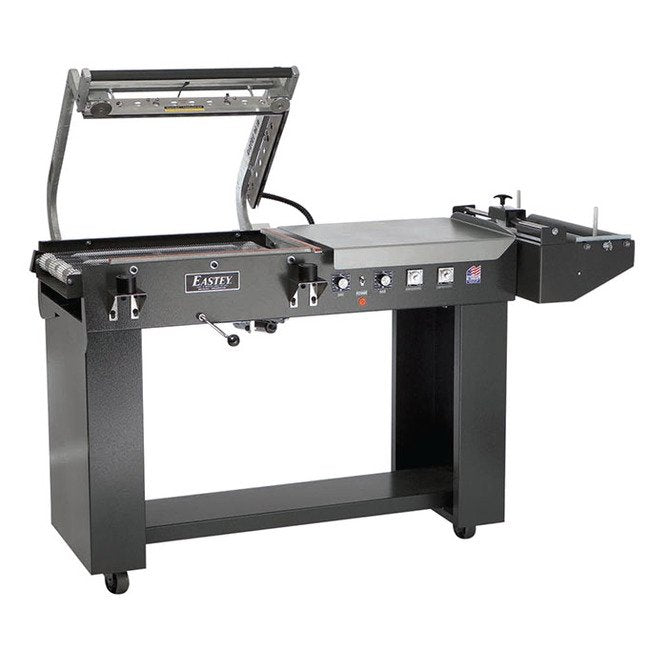

EASTEY® Performance Series 22in Front Seal Semi-Automatic L-Sealer
EASTEY® Performance Series 22in Front Seal Semi-Automatic L-Sealer
SKU:PAC-5e08e9
Reliable EASTEY® Performance Series L-Sealer for efficient shrink wrap applications.
Regular price
$5,699.99
Regular price
Sale price
$5,699.99
Unit price
per
Initiate Order
EASTEY® Performance Series 22in Front Seal Semi-Automatic L-Sealer
$5,699.99
Quantity: 1
Claim Your Seller Account
EASTEY® Performance Series 22in Front Seal Semi-Automatic L-Sealer
$5,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EASTEY® Performance Series 22in Front Seal Semi-Automatic L-Sealer is a durable and cost-effective solution for a wide range of shrink wrap applications. Expertly welded on a 12 gauge steel frame, this L-Sealer can handle the day-to-day abuse of manual sealing. With features like cast seal arms, stainless steel film clamps, and heavy-duty dual magnet clamping, EASTEY® ensures reliability and durability. This machine offers adjustable dwell time, analog temperature control, and an adjustable product tray to accommodate various product sizes. Ideal for sealing polyolefin, polyethylene, and PVC films, this L-Sealer is designed for efficiency and ease of use.
Product Specifications
Additional Information Additional Information
RUGGED DESIGNEASTEY® Performance Series L-Sealers are expertly welded on 12 gauge steel frames and designed to handle the day to day abuse of manual sealing in most shrink wrap applications. Cast seal arms, stainless steel film clamps, and heavy duty dual magnet clamping are just some of the features that provide the durability you have come to rely on from EASTEY®. See for yourself why EASTEY® has been a leader in the shrink packaging industry for over 25 years.
Key Features Key Features

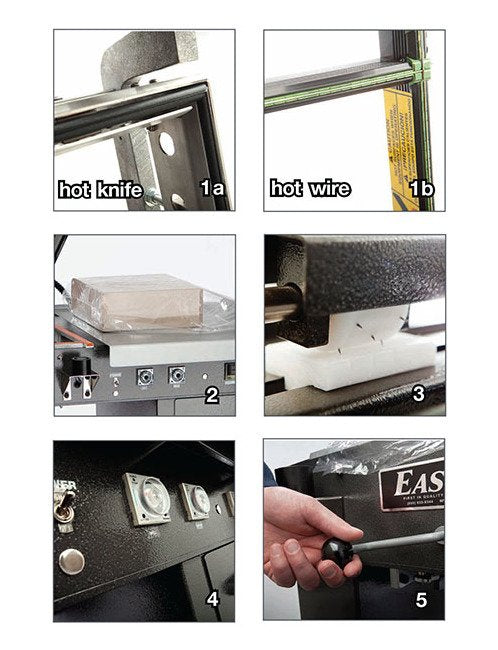

Casted seal headAvailable in hot knife or hot wire seal systems.Product TrayAdjustable product tray easily separates film and accommodates variety of product sizesPin PerforatorAdjustable pin perforator provides air evacuation in filmControl PanelSimple, easy to use control panel with automatic cycle timingConveyorTakeaway conveyor can be raised or lowered to center the seal on your product
Machine Dimensions Machine Height
50 in | 127 cm
Machine Dimensions Machine Length
63 in | 160 cm
Machine Dimensions Machine Width
27 in | 69 cm
Note Note
Made in the USA
Seal Dimensions Front Seal Dimension
22 in | 56 cm
Seal Dimensions Side Seal Dimension
16 in | 41 cm
Specifications Maximum Film Width
0 to 19 in
Specifications Shipping Weight
500 lb | 226 kg
Specifications Weight
400 lb | 181 kg
Standard Features Standard Features
Designed to seal most polyolefin, polyethylene, and PVC (with Hot knife systems only) shrink filmAll-welded main frame from 12 gauge steelSeal head casting equipped with head return cylinderStainless steel film clamps hold film in place while sealingAvailable with hot wire or hot knife seal systemsHot knife seal systems available with mushroom (standard), pancake, arrow, or poly insertsDual locking magnet clamps apply even pressure across seal barAdjustable dwell time for better seal controlAnalog temperature control adjustable for a variety of filmAdjustable product tray accommodates wide variety of product sizesTakeaway conveyor can be raised or lowered to center-seal productAutomatic takeaway conveyor with stainless steel mesh beltingHeavy duty film roll support and simple film loadingAdjustable pin perforator provides air evacuationCustom two-part epoxy finish resists scratchingHeavy duty casters for transportation within plantEasy to use design requires minimal training and maintenanceSeal size of 16" x 22" or 16" x 36"Available in 110v or 220v
Standard Power Current
15 A | 20 A
Standard Power Phase
1
Standard Power Voltage
110 V | 220 V
