EASTEY® Performance Series 38" x 49" Shrink Tunnel
EASTEY® Performance Series 38" x 49" Shrink Tunnel
SKU:PAC-e563ba
Reliably shrink polyolefin, polyethylene, and PVC films with the EASTEY® Performance Series 38" x 49" Shrink Tunnel. Rugged design meets superior performance.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
EASTEY® Performance Series 38" x 49" Shrink Tunnel
$8,499.99
Quantity: 1
Claim Your Seller Account
EASTEY® Performance Series 38" x 49" Shrink Tunnel
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

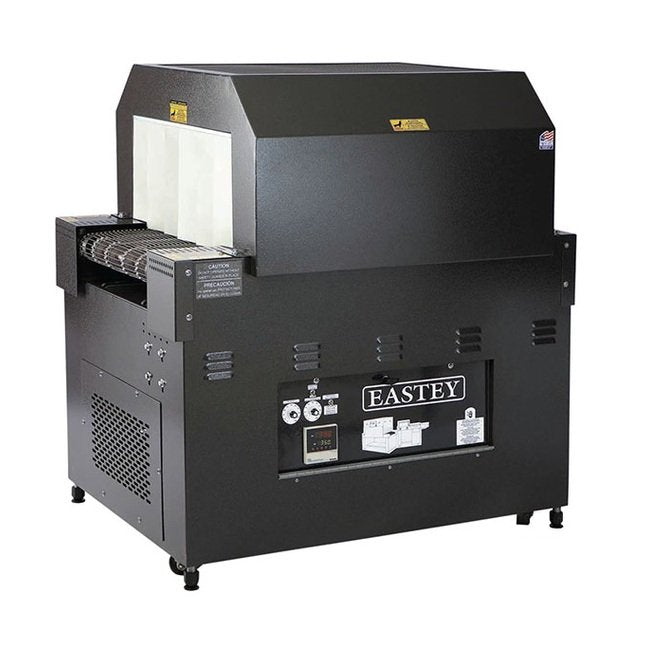

The EASTEY® Performance Series 38 Inch Machine Width and 49 Inch Machine Length Shrink Tunnel delivers reliable shrink performance for a wide range of films. Built with a rugged design on a 12-gauge steel frame, this shrink tunnel features adjustable air flow, variable air velocity, and solid-state temperature control, ensuring superior shrinking capabilities. With standard features like a mesh belt conveyor, four-directional air flow, and live roller conveyor, this machine offers easy operation and maintenance, making it ideal for sealing polyolefin, polyethylene, and PVC shrink film.
Product Specifications
Additional Information Additional Information
RUGGED DESIGNEASTEY® Performance Series Shrink Tunnels are expertly welded on 12 gauge steel frames and designed to produce superior shrinking on a virtually any package. Variable four-direction air flow, variable air velocity and delayed cool down are just some of the features that provide the durability you have come to rely on from EASTEY®. See for yourself why EASTEY® has been a leader in the shrink packaging industry for over 25 years.
Chamber Dimensions Chamber Height
10 in | 25 cm
Chamber Dimensions Chamber Length
36 in | 91 cm
Chamber Dimensions Chamber Width
20 in | 51 cm
Key Features Key Features

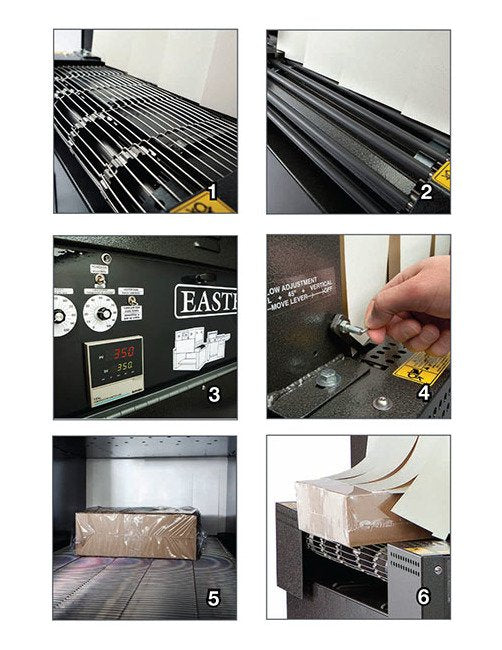

Mesh beltStainless steel mesh belt conveyor provides maintenance free operationLive RollerLive roller conveyor provides a more finished look for retail packaging applicationsControl panelEasy to use control panel lets users adjust for their specific applicationAir flow knobVariable air flow adjustments at your fingertipsInside of tunnelFour directional air flow provides positive shrinkingShrinked box coming out of tunnelPositive shrinking on most polyolefin, polyethylene and PVC film
Machine Dimensions Machine Height B
51 in | 129 cm
Machine Dimensions Machine Length C
49 in | 124 cm
Machine Dimensions Machine Width A
38 in | 97 cm
Note Note
Made in the USA
Specifications Conveyor Length
49 in | 124 cm
Specifications Conveyor Speed
0 to 67 ft/min
Specifications Conveyor Width
20 in | 51 cm
Specifications Shipping Weight
800 lb | 363 kg
Specifications Weight
700 lb | 317 kg
Standard Features Standard Features
Designed to seal most polyolefin, polyethylene, and PVC shrink filmAll-welded main frame from 12 gauge steelLive roller or stainless steel mesh belt conveyors; optional "dead" roller conveyor for polyethyleneSealed bearings (not bushings) on drive and idler shaftsAdjustable digital solid state temperature control for a variety of filmFour-directional air flow provides positive shrinkingVariable air flow and air velocity for a variety of products and applicationsBottom air flow adjustment - full on, 1/2 on, full off on ET2010Large ducting creates more air volume inside tunnelOptional side plates (top and sides) for air flow patterning and quick changeover for different products on ET2010Plugs available for patterned air flowDelayed cool down and over temperature protectionFold down electrical control panel for easy maintenanceHeavy duty casters for transportation within plantLeveling legs provide sturdy base once in placeCustom two part epoxy finish resists scratchingAvailable in 220v - single or 3-phaseEasy to use design requires minimal training, maintenance, and trouble free operation
Standard Power Current
25 A | 40 A
Standard Power Phase
1 | 3
Standard Power Voltage
220 V
