EASTEY® Performance Series Shrink Tunnel - 28" x 61"
EASTEY® Performance Series Shrink Tunnel - 28" x 61"
SKU:PAC-0b409e
Reliable EASTEY® 28" x 61" Shrink Tunnel for precise film shrinking needs.
Regular price
$8,799.99
Regular price
Sale price
$8,799.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

The EASTEY® Performance Series 28" x 61" Shrink Tunnel offers reliable and cost-effective performance for shrinking various films. Built on a 12 gauge steel frame, this shrink tunnel features adjustable air flow, solid state temperature control, and durable construction for superior shrinking. With live roller or stainless steel mesh belt conveyors, adjustable air velocity, and bottom air flow adjustment, it ensures precise shrinking for polyolefin, polyethylene, and PVC films. Ideal for both intermediate and institutional users seeking high-quality shrink packaging solutions.
Product Specifications
Additional Information Additional Information
RUGGED DESIGNEASTEY® Performance Series Shrink Tunnels are expertly welded on 12 gauge steel frames and designed to produce superior shrinking on a virtually any package. Variable four-direction air flow, variable air velocity and delayed cool down are just some of the features that provide the durability you have come to rely on from EASTEY®. See for yourself why EASTEY® has been a leader in the shrink packaging industry for over 25 years.
Chamber Dimensions Chamber Height
10 in | 25 cm
Chamber Dimensions Chamber Length
48 in | 122 cm
Chamber Dimensions Chamber Width
16 in | 41 cm
Key Features Key Features

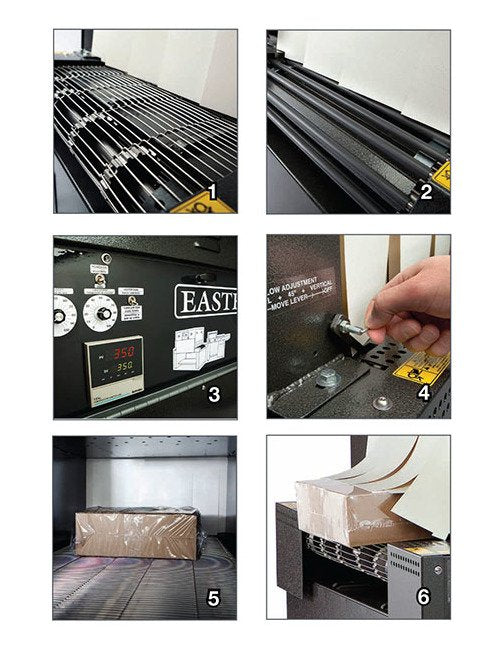

Mesh beltStainless steel mesh belt conveyor provides maintenance free operationLive RollerLive roller conveyor provides a more finished look for retail packaging applicationsControl panelEasy to use control panel lets users adjust for their specific applicationAir flow knobVariable air flow adjustments at your fingertipsInside of tunnelFour directional air flow provides positive shrinkingShrinked box coming out of tunnelPositive shrinking on most polyolefin, polyethylene and PVC film
Machine Dimensions Machine Height B
64 in | 163 cm
Machine Dimensions Machine Length C
61 in | 155 cm
Machine Dimensions Machine Width A
28 in | 72 cm
Note Note
Made in the USA
Specifications Conveyor Length
60 in | 152 cm
Specifications Conveyor Speed
0 to 67 ft/min
Specifications Conveyor Width
16 in | 41 cm
Specifications Shipping Weight
850 lb | 386 kg
Specifications Weight
750 lb | 340 kg
Standard Features Standard Features
Designed to seal most polyolefin, polyethylene, and PVC shrink filmAll-welded main frame from 12 gauge steelLive roller or stainless steel mesh belt conveyors; optional "dead" roller conveyor for polyethyleneSealed bearings (not bushings) on drive and idler shaftsAdjustable digital solid state temperature control for a variety of filmFour-directional air flow provides positive shrinkingVariable air flow and air velocity for a variety of products and applicationsBottom air flow adjustment - full on, 1/2 on, full off on ET2010Large ducting creates more air volume inside tunnelOptional side plates (top and sides) for air flow patterning and quick changeover for different products on ET2010Plugs available for patterned air flowDelayed cool down and over temperature protectionFold down electrical control panel for easy maintenanceHeavy duty casters for transportation within plantLeveling legs provide sturdy base once in placeCustom two part epoxy finish resists scratchingAvailable in 220v - single or 3-phaseEasy to use design requires minimal training, maintenance, and trouble free operation
Standard Power Current
25 A | 40 A
Standard Power Phase
1 | 3
Standard Power Voltage
220 V
