Eastey® SB-2EX Side Belt Case Taper Machine
Eastey® SB-2EX Side Belt Case Taper Machine
SKU:SB2-f8bdd6
Eastey® SB-2EX Side Belt Case Taper: Rugged, efficient, and CE certified for reliable case sealing.
Regular price
$5,999.00
Regular price
Sale price
$5,999.00
Unit price
per
Initiate Order
Eastey® SB-2EX Side Belt Case Taper Machine
$5,999.00
Quantity: 1
Claim Your Seller Account
Eastey® SB-2EX Side Belt Case Taper Machine
$5,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

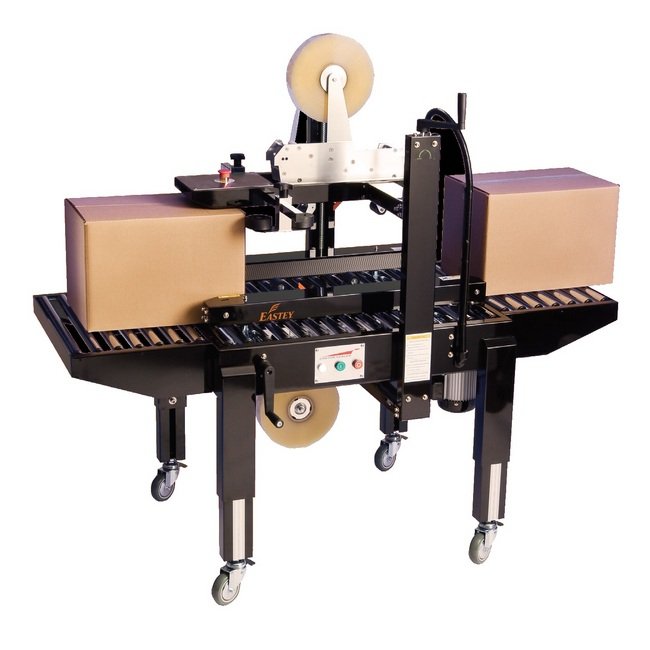

The Eastey® SB-2EX Side Belt Case Taper Machine is a versatile solution designed for both light and heavy boxes, offering fast and efficient case sealing. Industrial strength components like dual drive motors and steel construction ensure durability and reliability. With adjustable conveyor height, tape sizes options, and interchangeable tape cartridges, this taping machine provides flexibility and ease-of-use for various box sizes and production needs. Meeting CE certification standards, the SB-2EX is a rugged, low-maintenance machine that streamlines packaging operations and enhances productivity.
Product Specifications
Additional Information Additional Information

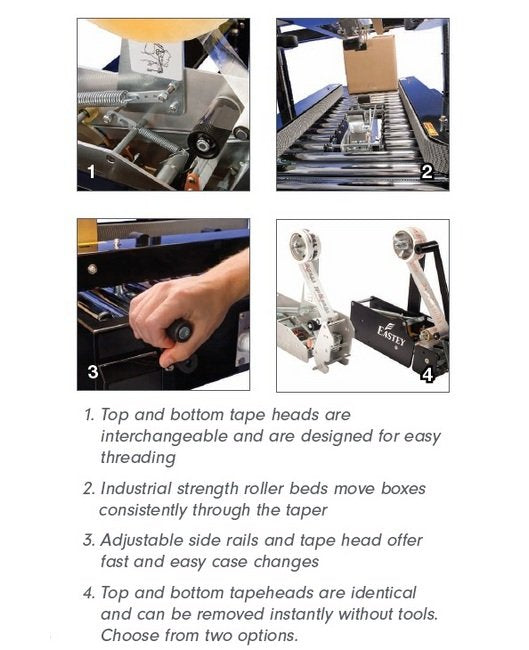

Top and bottom tape heads are interchangeable and are designed for easy threadingIndustrial strength roller beds move boxes consistently through the taperAdjustable side rails and tape head offer fast and easy case changesTop and bottom tape heads are identical and can be removed instantly without tools. Choose from two options.
Case Taping Made Easy Case Taping Made Easy
SB-2EX is designed and built with the customer in mind. Top and bottom tape cartridges are interchangeable and designed for easy tape threading. These machines accept 2" wide pressure-sensitive tape as a standard, or can be converted in the field with 3" tape heads for wider case taping applications. Operators can learn to use Eastey®'s SB-2EX case taping machine in minutes, avoiding breaks in production and downtime, saving your company money and increasing your ROI.
Features Features
Plug-in and go operationFast and easy box size changesIndustrial strength side beltsInterchangeable top and bottom tape cartridgesEmergency stop buttonAdjustable leg extensionsCasters for transportation within plantFront and rear pack tables to allow for case packingTop squeezers push top flaps together for accurate case sealingPowder coated 12 gauge steelLow maintenance, no air required
Industrial Strength Operation Industrial Strength Operation
Dual 1/4 hp drive motors, aggressive industrial strength drive belts, and roller tables make SB-2EX a workhorse that will stand up to your toughest challenges. Each case taping machine is made from 12 gauge steel that will withstand even the most rugged applications. A powder coated exterior protects the machine from abusive conditions and guarantees years of use. Best of all, the SB-2EX is CE certified, so users can be confident it will consistently provide reliable, high quality case sealing.
Optional Accessories Optional Accessories
3" Tape Head - Accepts 3" wide tape rollsStainless Finish - Complete stainless finish to meet specific application requirements
Production Meets Versatility Production Meets Versatility
SB-2EX offers fast and easy case changes with adjustable side rails and flexibility for boxes 5" long and greater. Adjustments can be made on the fly with easy hand tighten knobs and cranks which can be attached to either side of the machine. SB-2EX utilizes easy to load top and bottom tape cartridges and will seal boxes as narrow as 4.5" wide and as low as 4.5" tall.
Technical Specs Adjustable Conveyor Height
18.1 to 32.3 in
Technical Specs Agency Approvals
European Conformity (CE) Certification
Technical Specs Alternating Current Ac Voltage
110 V
Technical Specs Belt Speed
75 ft/min
Technical Specs Brands
Eastey®
Technical Specs Current
4 A
Technical Specs Drive Motor
Two (2) 1/4 HP drive motors
Technical Specs Frequency
60 Hz
Technical Specs Machinery Makeup
Industrial strength 12 gauge steel, powdered coated for durability
Technical Specs Maximum Box Depth
19.5 in
Technical Specs Maximum Box Length
Infinite
Technical Specs Maximum Box Width
19.5 in
Technical Specs Minimum Box Depth
4 in
Technical Specs Minimum Box Length
5 in
Technical Specs Minimum Box Width
4 in
Technical Specs Sealer Type
Side belt, top and bottom case sealer
Technical Specs Tape Cartridge
Proven design requires no lubrication, designed for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges
Technical Specs Tape Size
2" wide pressure sensitive tape, up to 15" diameter rolls, optional 3" wide tape
Technical Specs Tape Speed
30 cases per min., depending on box size and operator efficiency
The Right Solution The Right Solution
Rugged design. Proven reliability. Simple operation. Your benefits go on and on. When it comes to industrial operation, rely on Eastey® to provide the right solution for your case sealing needs.
