Epoxied CHG Series Metallized Film Capacitor - High Voltage Capacitor 700V 0.21µF

Name: Epoxied CHG Series Metallized Film Capacitor - High Voltage Capacitor 700V 0.21µF
Brand: High Energy Corp.
SKU: MET-3db471
Price: 34.99 USD
Availability: OutOfStock

SKU:MET-3db471

High voltage capacitance solution with 700V VRMS, 0.21µF capacitance, series & parallel stackable, conduction cooling.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

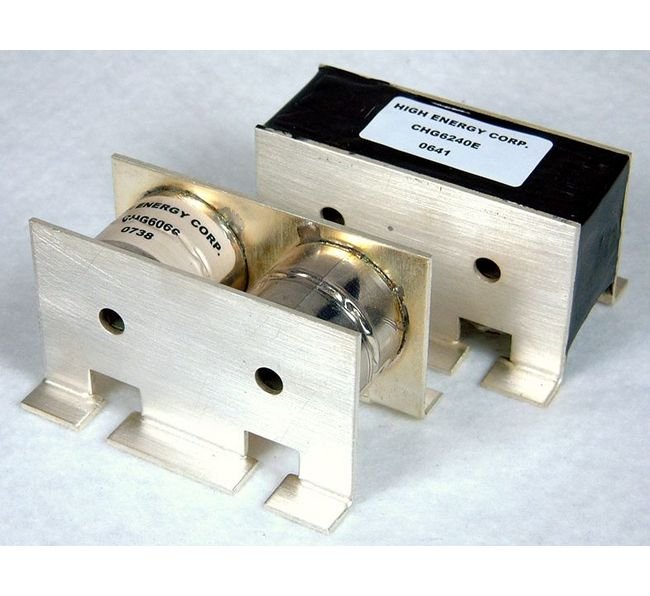

The Epoxied CHG Series Metallized Film Capacitor is a high-performance component engineered for critical power applications. With a working voltage of up to 700 VRMS and a capacitance of 0.21 µF, this capacitor delivers reliable power handling capabilities. It features series and parallel stackability, conduction cooling via bus bars, and a compact design for versatile integration. Meeting stringent industry standards, this capacitor ensures optimal performance and durability in demanding environments.

Product Specifications

Specifications Cap

0.21 µF

Specifications Capacitance Range

0.11 to 2.4 µF

Specifications Capacitance Tolerance

±10% Standard

Specifications Cooling Method

Conduction-cooled by bus bars

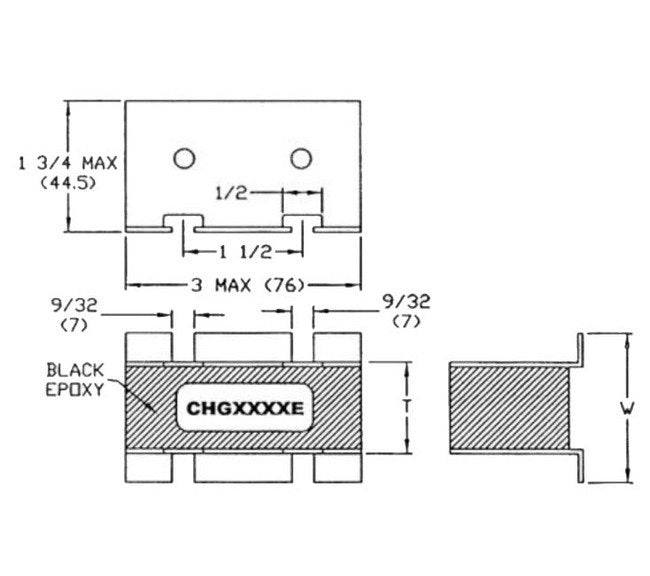

Specifications Dimensions

3 x 1 11/16 x 1 3/4 in | 76.2 x 37.8 x 39.2 mm

Specifications Dimension T

7/8 in | 22.2 mm

Specifications Dimension W

1 11/16 in | 42.8 mm

Specifications Dissipation Factor

0.1% Maximum

Specifications Fh

389 kHz

Specifications Fl

270 kHz

Specifications Fmax

500 kHz

Specifications Imax Rms

300 A

Specifications Operating Temperature

Up to +90 ºC

Specifications Smax

175 kV·A

Specifications Stray Inductance

Less than 5 nH

Specifications Vmax Rms

700 V

Specifications Weight

0.14 kg | 0.30 lb
