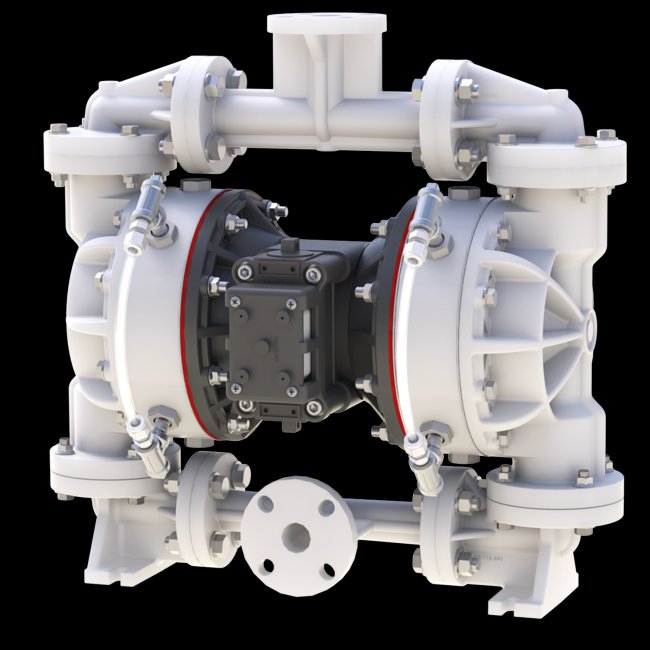

EvolutionX™ 1" Non-Metallic Ball Valve Diaphragm Pump

Name: EvolutionX™ 1" Non-Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-b05001
Price: 899.99 USD
Availability: OutOfStock

SKU:PRO-b05001

Upgrade to the EvolutionX™ 1" Non-Metallic Ball Valve Diaphragm Pump for reliable and efficient fluid handling in water, wastewater, and utility applications.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade to the EvolutionX™ 1" Non-Metallic Ball Valve Diaphragm Pump, a seamless replacement for the Sandpiper® S1F series. Featuring a Polypropylene construction, Santoprene elastomers, and a containment duty design, this pump ensures durability, efficient fluid handling, and visual leak detection. With a max flow rate of 45 gpm and solids handling up to 25 inches, it meets the rigorous standards for water, wastewater, and utility diaphragm pumping applications.

Product Specifications

Curves 0

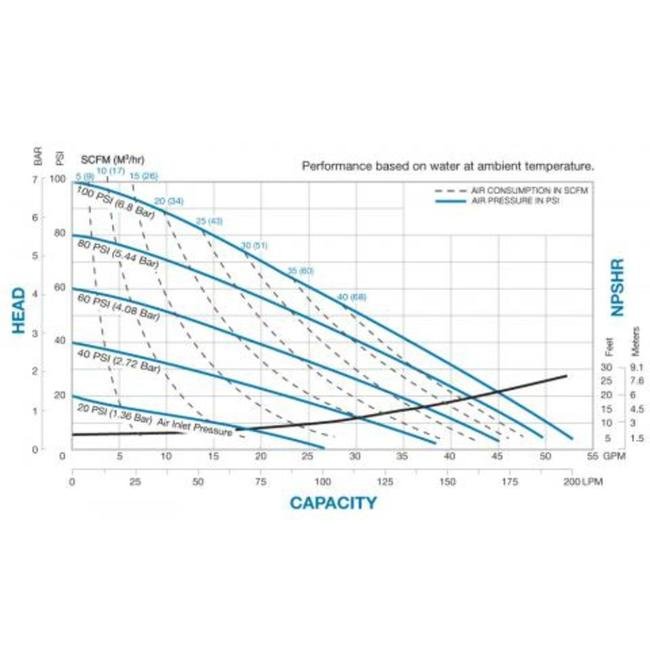

Performance Curves

Specifications Check Valve Seat

Polypropylene

Specifications Check Valve Type

Ball

Specifications Customs Code

ECCN Code EAR99

Specifications Design Level

Specifications Displacement Per Stroke

0.17 gal | 0.64 lit

Specifications Elastomers

Santoprene Pumping/Santoprene

Specifications Height

21 in | 527.05 mm

Specifications Inlet Size

1" ANSI Flange | PN10 25 mm DIN Flange

Specifications Length

22 in | 552.45 mm

Specifications Max Flow Rate

0 - 45 gpm | 0 - 170 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

1" ANSI Flange | PN10 25 mm DIN Flange

Specifications Porting Position

Universal (Fits ANSI and DIN)

Specifications Pump Style

Containment Duty with Visual Leak Detection

Specifications Sku

WRS1FB3P4PPUV000SP

Specifications Solids Handling

25 in | 6 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless

Specifications Weight

48 lbs | 22 kg

Specifications Wetted Moc

Polypropylene

Specifications Width

12 in | 306.39 mm

Category 6

Standard Duty Diaphragm Pumps

EvolutionX™ 1" Non-Metallic Ball Valve Diaphragm Pump
