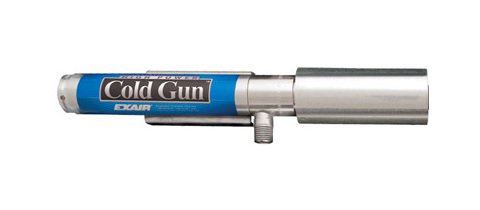

The Exair® High Power Cold Gun is a cutting-edge air-cooling solution designed to tackle heat build-up in dry machining operations. Operating at a quiet 82 dBA, this innovative system produces a stream of clean cold air at 50°F below the supply air temperature, effectively removing heat to extend tool life and enhance machining productivity. With no moving parts to wear out, it offers numerous advantages including improved production rates, prevention of burning, extended tool lifespan, enhanced tolerance control, elimination of wheel loading, and more. Ideal for tool sharpening, grinding, milling, drilling, and various machining applications, the Cold Gun is a versatile and efficient cooling solution for industrial settings.
Product Specifications
Applications Applications
Tool sharpeningDrill and cutter grindingRoutingPlunge and form grindingMillingSurface grindingDrillingTire grindingBand sawingPlastic machining
How The Cold Gun Works How The Cold Gun Works
The Cold Gun incorporates a vortex tube to convert an ordinary supply of compressed air into two low pressure streams, one hot and one cold. The hot airstream is muffled and discharged through the hot air exhaust. The cold air is muffled and discharged through the flexible hose, which directs it to the point of use. The magnetic base provides easy mounting and portability.The Compressed Air SupplyThe Cold Gun is designed to use full line pressure of 80-100 PSIG (5.5-6.9 BAR). Temperature drop and flow are reduced when lower input pressures are applied. The use of clean, filtered air is essential to the operation of the Cold Gun. A manual drain filter that removes moisture, dirt and other particulates from the compressed air is included with each Cold Gun System.Controlling the Cold AirThe EXAlR Cold Gun gives instant cold air when filtered compressed air is supplied to it. Cycling on and off is a good way to save air. For on and off control, use a Model 9012 Manual Shutoff Valve. To turn the Cold Gun on with the machine, the Model 9020 Solenoid Valve may be used and wired through the machine control switch. This method is ideal for hand grinders and drill sharpeners.
Technical Specs Air Consumption
30 scfm | 850 slpm
Technical Specs Brands
Exair®
Technical Specs Cold Gun Advantages
Improves production ratesPrevents burningExtends tool life - reduces breakageImproves tolerance controlPrevents smearing of metal or plasticsFinished part is dryEliminates wheel loading
Technical Specs Pressure Supply
100 psig | 6.9 bar
Technical Specs Sound Level
82 dBA
