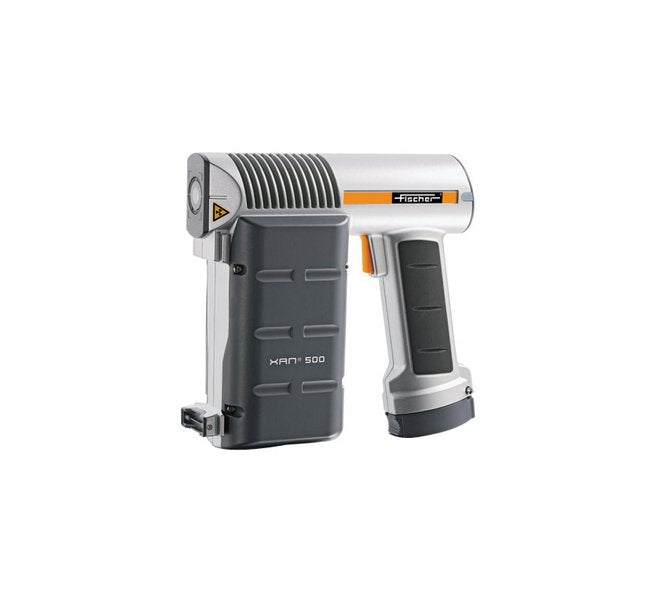

Mobile material analysis and coating thickness measurementIf the sample can't go to the instrument, the instrument must come to the sample! With its FISCHERSCOPE® X-RAY XAN® 500, Fischer offers a mobile X-ray fluorescence (XRF) device optimized for coating thickness measurement and material analysis of alloys.
Product Specifications
Additional Information
Despite its small size, the XAN® 500 is the equal of any XRF instrument one might find in a lab. Its modern silicon drift detector (SDD) guarantees correct measurement results in just a few seconds. And even complex measuring tasks involving multiple layers and various alloys are resolved reliably.Especially when measuring coating thicknesses, it is of great importance to ensure that the distance between device and sample remains constant and the beam path is straight. The XAN® 500's 3-point support allows you to set the device up safely and stably, for accurate measurement of coatings. The result is shown directly on the device’s display.For further data evaluation, the XAN® 500 is equipped with the full WinFTM® software suite. Coating thickness measurement and material analysis with WinFTM® are both based on fundamental parameter analysis. This makes it possible to measure accurately without prior calibration - that is, standard-free. And for those occasions when only the highest degree of precision will suffice, we also offer DAkkS-certified standards that make calibrating the device for your specific measuring task quick and easy.The XAN® 500 is the most versatile X-ray fluorescence instrument on the market. Used as a hand-held device, it is ideal for controlling the coatings on bulky parts like car fenders, pipes, turbine blades or pressure rollers - and it can do so in ongoing production.But this handy instrument is not limited to large-scale measuring tasks. With the optional measurement box - and at the flick of a wrist - the XAN® 500 becomes a fully-fledged desktop instrument for quickly and reliably testing small parts like screws.The XAN® 500 is also suited for use in automated quality assurance; it can be integrated right into a production line, enabling continuous quality control.
Benefits

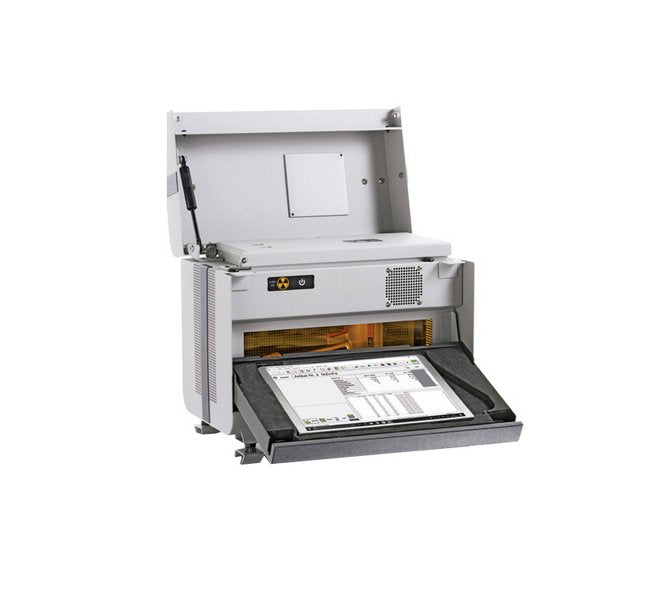

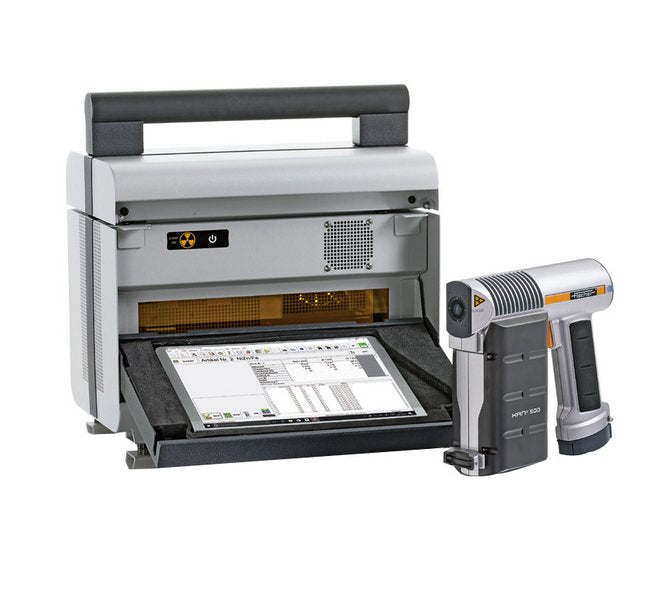

One instrument, three ways to use it: hand-held, desktop and automatedPrecise coating thickness measurement and material analysis, especially for difficult material combinations, multiplex coatings and alloys (e.g. ZnNi on Fe)The measurement box for small parts is simultaneously a carrying case, so the instrument can be moved quickly safely to another locationPowerful WinFTM software for data analysisMeasurements according to DIN ISO 3497 and ASTM B 568
Features
Silicon drift detectorTungsten X-ray tubeWinFTM® BASIC, or WinFTM® SUPER with 10" Ultrabook (optional)
Specifications Industry Standardscertifications
American Society for Testing and Materials (ASTM B 568) | European Standards International Organization for Standardization (DIN EN ISO 3497)
Specifications Maximum Operating Power
4 W
Specifications Measurement Spot Diameter
3 mm
Specifications Type
X-Ray
Specifications Voltage Rating
40 kV
Specifications Weight
1.9 kg
