Ohio® Medical RX Series® Hybrid Manifolds may be used for high pressure, low pressure or a combination of both high pressure & low-pressure operations.All models are UL /cUL listed and includeTwo parallel piped (right & left) final line regulatorsEmergency high-pressure portAn economizer circuitDry alarm contacts
Product Specifications
Accessories
Item # - 263972Description - 36" Flexible O2 Pigtail For Low PressureItem # - 263971Description - 24" Rigid Copper O2 Pigtail For High PressureItem # - 261677 Description - 90° Elbow For Header Bar
Additional Information

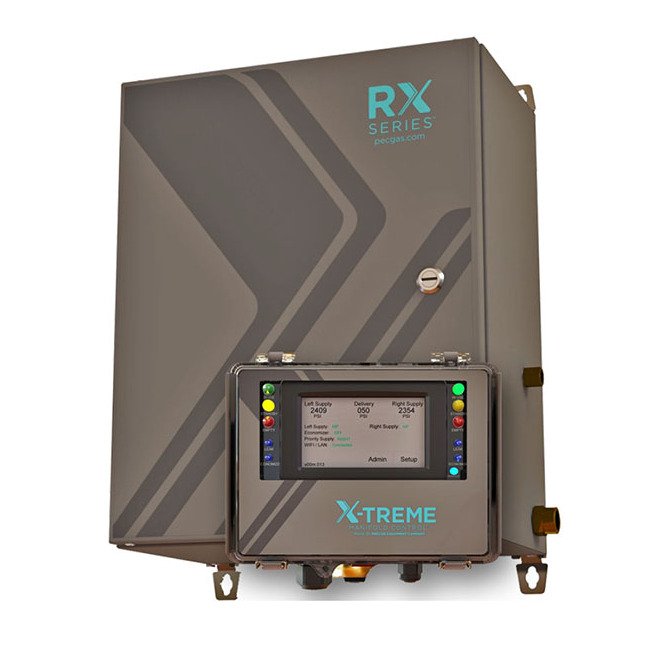

Each model is supplied with an X-Treme Manifold Control® box that plugs into the cabinet. This controller includes a large, crystal clear, LCD, password protected touch screen that showcases multiple LED’s (LEDs) displaying cylinder volume contents, pipeline pressure readings, inlet gas priorities, switchover conditions and leak-detection for standby cylinders.Header bars are available for low-pressure liquid and high-pressure oxygen. Combine main header bars with shutoff valves and extensions for the required number of cylinders on each side. Modular design allows for future expansion.
Applications
Continuous Flow Without PowerProvide a continuous flow of gas to patients and equipment where uninterrupted flow is critical. During a power loss, dual normally open solenoid valves will continue flowing gas from both primary inlets.Hospital · Surgery Centers · Acute CarePerfect for small or large health centers who adhere to the NFPA 99 source of standards.Delivery PressureModels up to 200 psig delivery depending on gas type.Hyperbaric ChambersSupply pressurized oxygen to patients for decompression sickness and serious infections in either a room or a tube for treatment.Nursing Facilities · HospiceProviding a steady and controlled flow of oxygen for patient use within the facility.Veterinary HospitalsEquine Hospitals
Features
24/7 Leak DetectionWill continuously monitor the reserve supply and provide leak indication lights if pressure is lost.Cylinder ManagementSelect from high-pressure or low-pressure source, including three different relief valve settings.Full-Automatic Changeover & Easy ResetOnce in-use side is depleted, the reserve side will flow uninterrupted, and the system will automatically switch to the reserve supply maintaining the integrity of the delivery gas supply. Manifold will reset the empty bank automatically on cylinder change out.International Power InputIncludes a 6' Power Cord with NEMA 5-15P plugGas Priority ControlCan select a side being the primary supply when using a low-pressure and high-pressure mixed cylinder configuration by prioritizing the left or right bank.Automatic EconomizerWhen low-pressure source is selected, the system will monitor and capture excess pressure on the reserve supply before reaching the programmed relief valve setting for each source.Delayed Switchover AlarmIn the event the in-use bank reaches the switchover point with low-pressure cylinders, the reserve side will flow uninterrupted for 20 minutes, before declaring an empty alert.Wireless & LAN ConnectivityConnect to web-based telemetry using Wi-Fi network.Serial 232/485 ConnectionConnect to Modbus, or stream data using other protocols.WeatherproofRated for IP65 location and can be placed outside in direct water spray or dusty conditions.Gas Status LEDs3-LED status indicators for each gas bank1-Economizer "ON" LED for each gas bank 1- "Leak Detected" LED for each gas bankAccurate Pressure DisplayImproved inlet pressure reading and switchover setting to 1-PSI increments.
Installation Kits Includes
Item # - 232600Description - 75 psi Relief ValveItem # - 232602Description - 1/2" Pipe AdapterItem # - 261600-05Description - 1/2" Locking Source ValveItem # - 263464Description - Installation Kit for N2Item # - 232604Description - 250 psi Relief ValveItem # - 232602Description - 1/2" Pipe AdapterItem # - 261600-05Description - 1/2" Locking Source Valve
International Power Input Alternating Current Ac Voltage
85 to 264 V
International Power Input Class
II
International Power Input Current
0.7 A
International Power Input Frequency
50 Hz | 60 Hz
Manifold Installation Kits
Item # - 263463Description - Installation Kit for O2, N2O, Air & CO2
Materials
Mechanical EnclosureSteel powder coated enclosure with latch, Rated IP65.Controller EnclosurePolycarbonate with lockable latches, Rated IP65.RegulatorsBrass bar stock and fabric reinforced neoprene diaphragms encapsulated PTFE seat.Tubing3/8" stainless steel tubing with 2-ferrule tube connections.Solenoid ValvesBrass, 24 VDC coils reduce heat exchange and damage to seals.PigtailsFlexible Stainless-Steel Polytetrafluoroethylene or Tefzel® inner core, or rigid copper cleaned, capped, & bagged.CleaningMeets CGA G-4.1.
Multi Voltage Digital Manifold Cabinet And Controller Only
Item # - 263514 Description-O2Item #-263515Description-N2OItem # - 263518Description - N2Item # - 263516Description - Air Item # - 263517Description - CO2Weight - 54 lbs (24.5 kg)
Note
Ordering ExampleRequirement: 2 liquid X 5 HP cylindersFor liquid, order 263963For HP, order 263968 & 263969Emergency high pressure oxygen manifolds available. Consult separate specification sheet.For other liquid gases, please consult factory.
Optional Heater Kit For Nitrous Oxide N2o And Carbon Dioxide Co2
Item # - 263431Description - 115 V Heater, USA, 2 RequiredItem # - 263409Description - 220 V Heater, Other, 2 Required

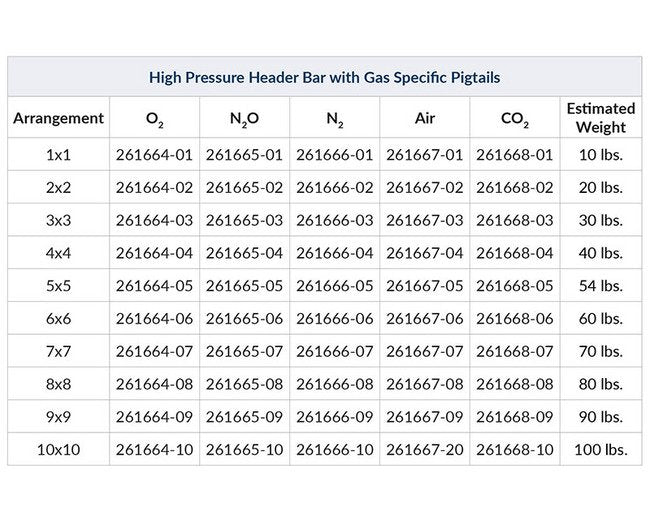

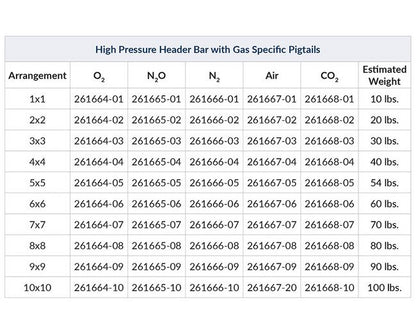

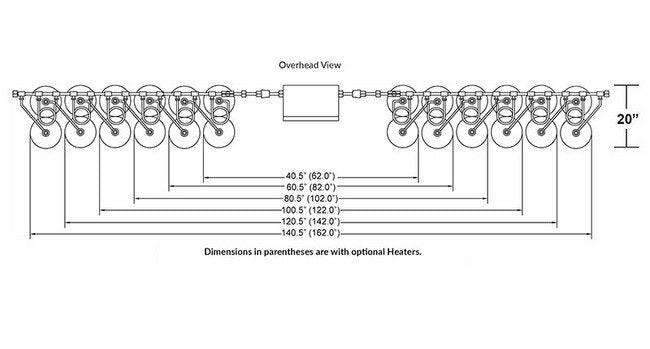

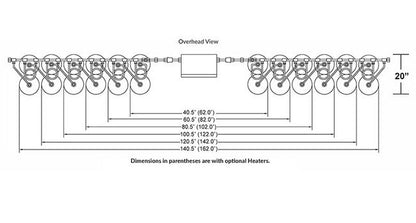

Single Side Oxygen Header Bars High Pressure Oxygen
Main headers and extensions include check valves and rigid copper 24" pigtailsItem # - 263967Description - Duplex O2 Header Bar With Shutoff ValveItem # - 263968 Description - Triplex O2 Header Bar With Shutoff Valve Item # - 263969Description - Duplex O2 Header ExtensionItem # - 263970 Description - Triplex O2 Header Extension
Single Side Oxygen Header Bars Low Pressure Oxygen
Main headers and extensions include check valves and flexible 36" pigtailsItem # - 263962Description - Simplex O2 Header Bar With Shutoff ValveItem # - 263963Description - Duplex O2 Header Bar With Shutoff Valve Item # - 263964 Description - Triplex O2 Header Bar With Shutoff ValveItem # - 263965Description - Duplex O2 Header ExtensionItem # - 263966Description - Triplex O2 Header Extension
Specifications Maximum Inlet Pressure
3000 psi

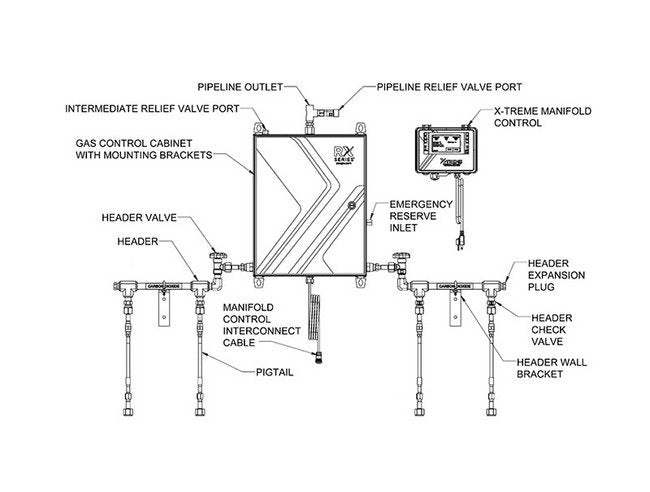

System Includes
UL cUL ListedGas Panel X-Treme Manifold Control®Cylinder ConnectionsFlexible stainless steel / rigid copper pigtails with gas specific CGA connections on both ends. CGA specific check valve adapters are included at header inlet.HeadersExpandable heavy wall brass. Rated 3000 PSIG working pressure.Shutoff ValvesHeader master valves provide a layer of protection when replacing high-pressure cylinders. Mounting HardwareWall mounting brackets for gas panel, controller, and headers.
