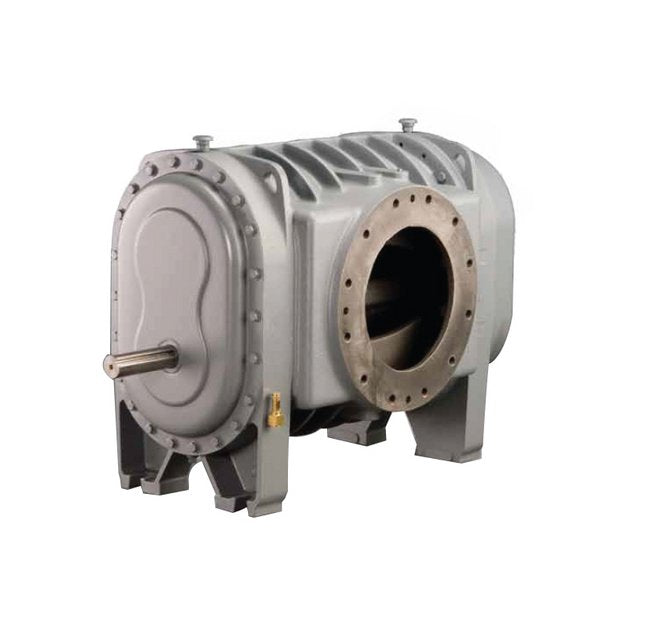

Gardner Denver™ 4500 Series Model 608 PD Blower with Vacuum Pump
Gardner Denver™ 4500 Series Model 608 PD Blower with Vacuum Pump
SKU:BLO-996a7f
Industry-leading Gardner Denver™ 4500 Series PD Blower with Vacuum Pump for superior performance and durability in industrial applications.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Gardner Denver™ 4500 Series Model 608 PD Blower with Vacuum Pump
$6,999.99
Quantity: 1
Claim Your Seller Account
Gardner Denver™ 4500 Series Model 608 PD Blower with Vacuum Pump
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gardner Denver™ 4500 Series Model 608 Positive Displacement Blower with Vacuum Pump sets the industry standard with over 70 years of expert design and manufacturing experience. This rugged blower features simplified timing gears, noise reduction technology, and dual-splash lubrication for continuous duty service in various industrial applications. Backed by ISO 9001:2008 quality standards, this blower/vacuum pump delivers superior performance, reduced maintenance intervals, and is trusted by top OEMs worldwide.
Product Specifications
4500 Series Design Features
Rated for continuous duty in all industrial applications.Provides longer life, simplified maintenance and reduced service intervals.Permits higher speeds and performance ratings.
4500 Series Performance Range Delivers 4500 Series Performance R
Continuous duty service.Mechanical seals are available for gas service applications.
4500 Series Performance Range Delivers Discharge Temperatures
Up to 325 ºF
4500 Series Performance Range Delivers Pressure
Up to 15 psig
4500 Series Performance Range Delivers Vacuum
Up to ≥ 16 Hg
Additional Information
The 4500 Series cycleWith every rotation of the blower drive shaft, two lobe impellers turn in opposite directions transferring a constant volume of air or gas from inlet to discharge.
Bearings
Anti-friction bearings are locked against shoulders on both impeller shafts at gear end.These bearings maintain factory-set clearances between head-plates and impellers.Bearings are sized so the drive shaft may be direct or belt driven.

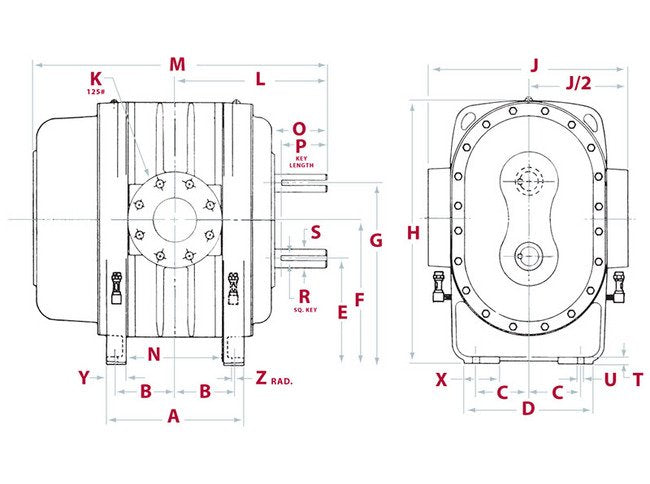

Horizontal Configurations Approximate Weight Horizontal
540 lb
Horizontal Configurations A Horizontal
12 in
Horizontal Configurations B Horizontal
5 5/16 in
Horizontal Configurations C Horizontal
6 in
Horizontal Configurations D Horizontal
14 3/4 in
Horizontal Configurations F Horizontal
9 in
Horizontal Configurations G Horizontal
18 in
Horizontal Configurations H Horizontal
18 in
Horizontal Configurations J2 Horizontal
9 1/4 in
Horizontal Configurations J Horizontal
18 1/2 in
Horizontal Configurations K Horizontal
6 in
Horizontal Configurations L Horizontal
12 3/4 in
Horizontal Configurations M Horizontal
23 5/8 in
Horizontal Configurations N Horizontal
8 in
Horizontal Configurations O Horizontal
4 1/2 in
Horizontal Configurations P Horizontal
4 1/4 in
Horizontal Configurations R Horizontal
3/8 in
Horizontal Configurations S Horizontal
1 9/16 in
Horizontal Configurations T Horizontal
7/8 in
Horizontal Configurations U Horizontal
3/4 in
Horizontal Configurations V Horizontal
3 in
Horizontal Configurations X Horizontal
1 7/8 in
Horizontal Configurations Y Horizontal
1 7/8 in
Horizontal Configurations Z Horizontal
3/8 in
Industryapplications Application For Aquaculture Industry
Aeration
Industryapplications Application For Cement And Lime Industry
Fluidization and Conveying
Industryapplications Application For Chemical Industry
Vacuum Processing and Conveying
Industryapplications Application For Dairy Industry
Automated Milking
Industryapplications Application For Dry Bulk Hauling Industry
Trailer Unloading and Aeration
Industryapplications Application For Environmental Services Indu
Sewer Cleaning and Portable Restroom Services
Industryapplications Application For Industrial Industry
Material Vacuuming
Industryapplications Application For Power Generation Industry
Fly Ash Conveying and Aeration
