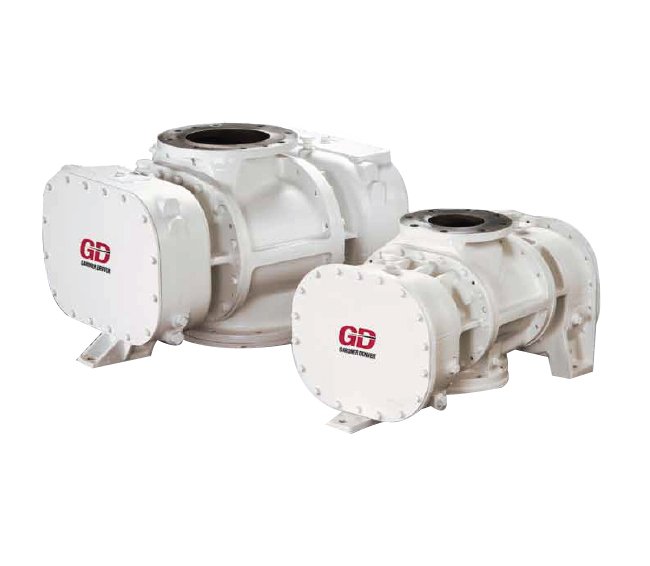

Gardner Denver™ CycloBlower® 44 1/2 Inch Industrial Series Blower with Vacuum Pump
Gardner Denver™ CycloBlower® 44 1/2 Inch Industrial Series Blower with Vacuum Pump
SKU:BLO-42a0fc
Efficient, durable, and high-capacity industrial blower delivering clean, oil-free air with shock-free compression for multiple applications.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
Gardner Denver™ CycloBlower® 44 1/2 Inch Industrial Series Blower with Vacuum Pump
$7,499.99
Quantity: 1
Claim Your Seller Account
Gardner Denver™ CycloBlower® 44 1/2 Inch Industrial Series Blower with Vacuum Pump
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience 50 years of proven results with the Gardner Denver™ CycloBlower® 44 1/2 Inch Industrial Series Blower with Vacuum Pump. This efficient and durable positive displacement blower offers shock-free compression, dependable quality, high capacity, and clean air/gas delivery. With its unique design features, high efficiency for energy savings, and installation flexibility, this blower ensures optimal performance. Operating at high speeds, this blower is suitable for various applications, providing clean, oil-free air for industrial processing, water treatment, and more.
Product Specifications
Clean Airgas Delivery
Contact-less rotors removes the need for lubrication within the compression chamber.Outboard position of rotor bearings allows atmospheric venting between the compression chamber and the bearings and gears.Prevents gear and bearing lubricants from contaminating the compression chamber for clean air/gas delivery.
Delivering Clean Oil Free Air To A Wide Range Of Global Applicat
Aeration | Air Scouring | Digester Gas Boosters | Filter Backwashing | Pond Aeration, Municipal or Industrial | Wastewater Treatment
Dependable Quality
Superior and consistent quality can be found in every CycloBlower® as a result of:Continual investment in the training of world-class manufacturing personnel.Quality inspections throughout the entire manufacturing process.Compact design utilizing optimum performance materials.Reduced vibrations result in longer service of critical blower components.
Dimensions Approximate Weight
1673 lb
Dimensions Discharge Port Connection Type
Flange
Dimensions Discharge Port Outer Diameter
13.5 in
Dimensions Discharge Port Size
8 in
Dimensions Height
23 in
Dimensions Inlet Port Connection Type
Flange
Dimensions Inlet Port Outer Diameter
16 in
Dimensions Inlet Port Size
10 in
Dimensions Length
44 1/2 in
Dimensions Width
25 3/4 in
Efficient Shock Free Compression

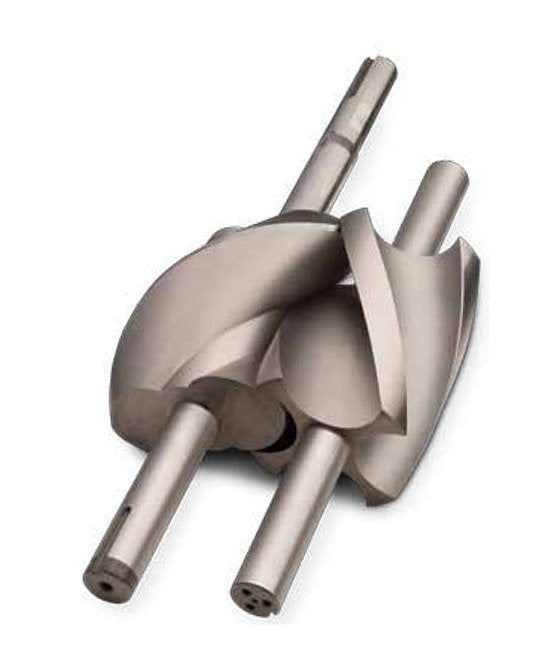

Helical screw rotors generate a balanced compression cycle.Providing a smooth and steady discharge, eliminating the sudden release of trapped pockets of air into the line.Contoured inlet and discharge ports minimize turbulence.
Gardner Denver Redefines The Perception Of Remanufactured
Reman (r¯e man´) n. A Gardner Denver™ positive displacement blower expertly assembled from genuine remanufactured and new parts.Must pass a full-load, hot run test before shipment.Standard new product warranty included.The final word when repair or replacement is required.

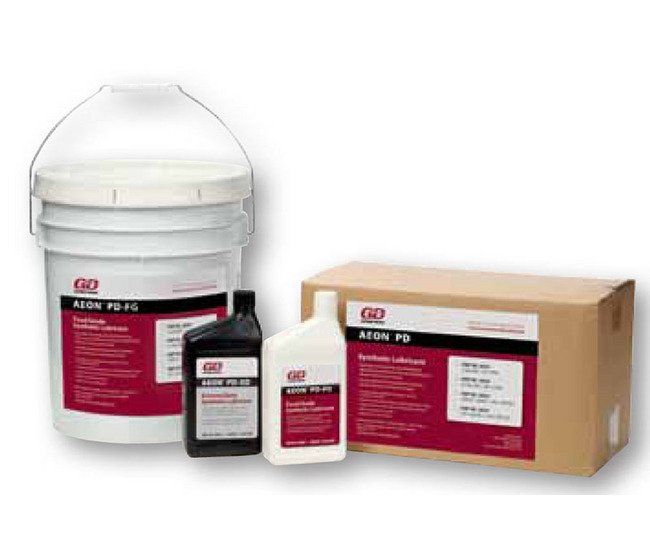

Genuine Gardner Denver Parts And Lubricants
Maintain the Gardner Denver™ performance advantage and reliability with Genuine GD Replacement Parts.Protect your Gardner Denver™ investment with AEON® PD lubricants formulated for all blowers in demanding applications.Now available AEON® PD-XD specifically designed for high ambient and/or high discharge temperature conditions.
High Capacity
Industry unique rotor profile and accurately maintained tolerances allow the CycloBlower® to be operated at high speeds for increased capacity.
High Efficiency For Improved Energy Savings
In many comparable applications, the CycloBlower® operates more efficiently than other straight-lobe blowers. By requiring less brake horsepower, BHP, energy operating costs can be realized and reduced.
Installation Flexibility
Units can be powered by various types of drives including electric motors, constant or variable, gasoline and diesel engines, or steam turbines.May be connected through a variable frequency drive (VFD), V-belt, or direct drive.
Low Installation Cost
A special foundation is not required.CycloBlower® requires a minimum of floor space.Remanufactured units available.
Note

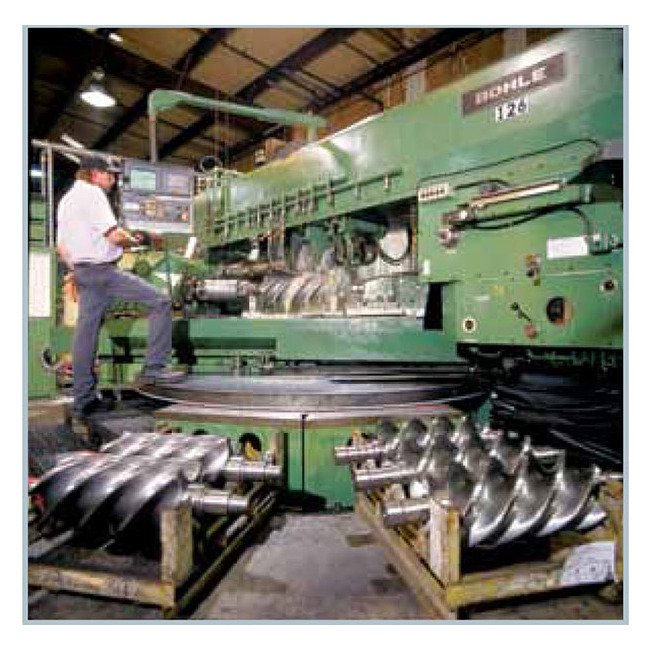

Performance based on inlet air at standard temperature of 68 ºF, an ambient pressure of 14.7 psia and 36% relative humidity.Contact Gardner Denver™ for wet vacuum applications to 24" Hg.CycloBlower® rotors are precision ground using state of the art milling technology.
Performance Data Airflow At 12 Inhg Vacuum And 1200 Rpm Speed
1100 ft³/min | 36.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 1500 Rpm Speed
1460 ft³/min | 44.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 1800 Rpm Speed
1830 ft³/min | 53.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 2100 Rpm Speed
2190 ft³/min | 63.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 2400 Rpm Speed
2550 ft³/min | 76.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 2700 Rpm Speed
2910 ft³/min | 95.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 3000 Rpm Speed
3276 ft³/min | 114.9 bhp
Performance Data Airflow At 12 Inhg Vacuum And 4000 Rpm Speed
3276 ft³/min | 114.9 bhp
Performance Data Airflow At 12 Psig Pressure And 1200 Rpm Speed
960 ft³/min | 70.0 bhp
Performance Data Airflow At 12 Psig Pressure And 1500 Rpm Speed
1325 ft³/min | 89.0 bhp
Performance Data Airflow At 12 Psig Pressure And 1800 Rpm Speed
1690 ft³/min | 110.0 bhp
Performance Data Airflow At 12 Psig Pressure And 2100 Rpm Speed
2060 ft³/min | 131.0 bhp
Performance Data Airflow At 12 Psig Pressure And 2400 Rpm Speed
2420 ft³/min | 152.0 bhp
Performance Data Airflow At 12 Psig Pressure And 2700 Rpm Speed
2780 ft³/min | 175.0 bhp
Performance Data Airflow At 12 Psig Pressure And 3000 Rpm Speed
3142 ft³/min | 200.4 bhp
Performance Data Airflow At 12 Psig Pressure And 4000 Rpm Speed
3142 ft³/min | 200.4 bhp
