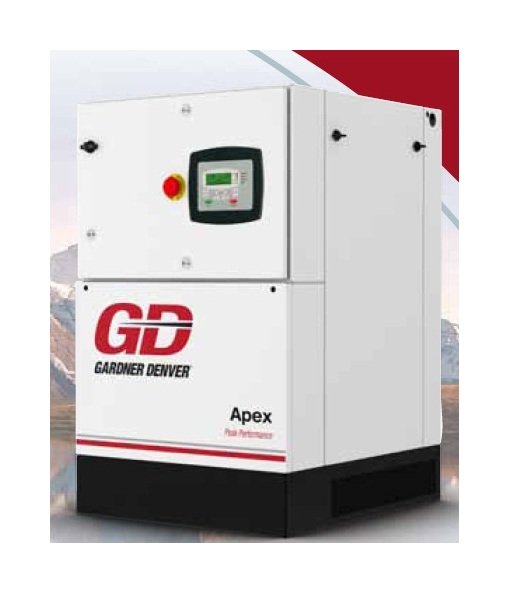

Gardner Denver Apex™ Rotary Screw Air Compressors
Gardner Denver Apex™ Rotary Screw Air Compressors
SKU:ROT-04bfbb
Enhanced efficiency and reliability in a compact design. Invest in your organization's future with Apex™ Series.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Gardner Denver Apex™ Rotary Screw Air Compressors
$6,999.99
Quantity: 1
Claim Your Seller Account
Gardner Denver Apex™ Rotary Screw Air Compressors
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial air compression system with the Gardner Denver Apex™ Series Rotary Screw Air Compressors. Designed for peak performance and efficiency, this compressor features an enhanced airend for improved efficiency and extended bearing life. With a compact footprint and low sound levels, the Apex™ Series ensures a safe and productive work environment. Maintenance is a breeze with quick, tool-free routines, enhancing operational uptime and longevity. Invest in the future of your organization with the reliability and excellence of Gardner Denver's Apex™ Series.
Product Specifications
Optional Equipment 0
Communication/Sequencing Module: Sequencing of up to Eight Compressors Remote Monitoring Ready Date and Time Stamping Wye Delta Motor/Starter: 10 & 15 HP only
Specifications Capacity At Rated Pressure
26.5 acfm at 125 psig | 36.5 acfm at 110 psig | 41 acfm at 175 psig
Specifications Height
43 in
Specifications Length
21 in
Specifications Motor Power At 60hz
10 hp
Specifications Net Weight
615 lb
Specifications Noise Level
70 dBA
Specifications Width
31 in
Specifications Working Pressure
110 psig | 125 psig | 175 psig
Standard Equipment 0
After Cooler: Radiator-Type Air Hoses: Stainless Steel, Over-Braided Air/Oil Separator: Spin-On Type Belt: V-Belt Belt Adjustment: Jack-Bolt Tensioning Device Control Lines: Corrosion-Resistant Tubing Control Enclosure: UL Type 4 (NEMA 4) Listed Controller: AirSmart™ MicroprocessorAutomatic Start/Stop or Load/Unload Operation Auto Blow-Down With Adjustable Timed Stop Full Text Liquid Crystal Display (LCD) Displays Hourmeter (loaded and total), Discharge Air Temperature, System/Reservoir Pressure Separator Differential Pressure Design Codes: UL/cUL Labeled Electronics - Including Control Panel CSA Labeled and Approved Electrical Controls and Wiring Discharge Pressure Check Valve (Minimum) Enclosure: 16 Gauge Steel, 67–70 dBAInlet Air Filter:99.9% at 5 Micron, Two-Stage, High Eff. Moisture Separator/Trap Motor: TEFC Drive, 1.15 Service Factor, 5 Year Warranty, 3 ph models are EISA Energy Efficient Oil Cooler: Radiator-Type Oil Reservoir: Pressure Relief Valve, CRN Approved Oil Filter: Spin-On Type, 30 Micron, Full Flow Oil Hoses: Stainless Steel, Over-Braided Starter: Mounted and Wired Full-Voltage Starter Thermal Mixing Valve: Thermostatic
