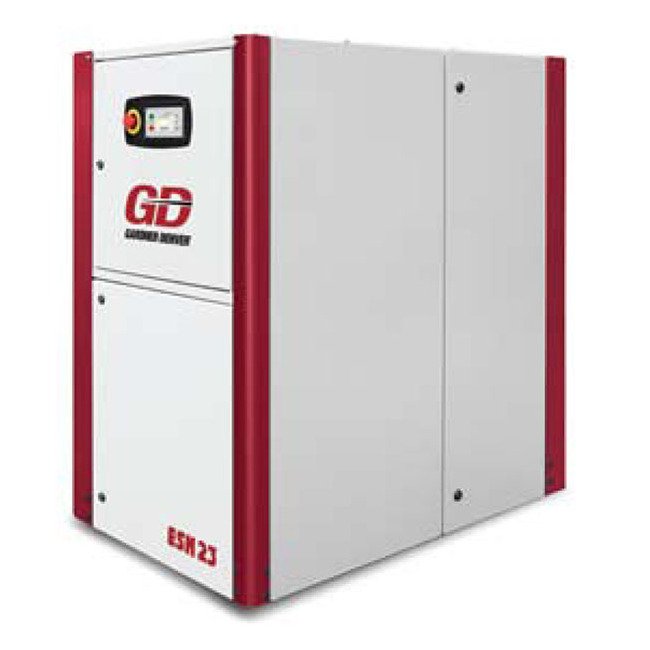

The Gardner Denver ESM 23 Fixed Speed Screw Air Compressor is a powerhouse designed to meet the stringent demands of industrial applications. With a nominal pressure range of 7.5 to 13 bar and a 22 kW drive motor, this compressor delivers a free air delivery of up to 4.16 m³/min. It boasts advanced features like the Premium Efficiency Air End for reduced energy costs, Energy Saving Electric Motor for lower CO2 emissions, and a High Modern Control System for operational reliability. The integrated dryer concept ensures maximum energy efficiency and reliable compressed air supply. With a 5-year warranty and compliance with ISO 7183 and ISO 1217 standards, the Gardner Denver ESM 23 is the pinnacle of efficiency, reliability, and performance.
Product Specifications
Additional Information
Rely on GD to provide the perfect fitThe perfect fit to maximize productivityThe new range of air compressors features the latest in technology, innovation and engineering.Low dBA level, small footprint, high efficiency and easy service are standard benefits with the ESM Series.The use of genuine GD parts and lubricants will maximize your compressor’s life and efficiency.
Advanced Design Energy Saving Electric Motor
The compressors are equipped with an energy saving high efficiency electric motor which reduces CO2 emissions.
Advanced Design High Performance Separator Filter
Two stage filtration ensures highest quality air is delivered to your system. The vessel has a hinged cover for easy maintenance.
Advanced Design Large Surface After Cooler
Optimum cooling to ensure low operating and discharge temperatures.
Advanced Design Premium Efficiency Air End
The high output compression element with slow rotational speed reduces energy costs. In addition to this, the innovative design of the integrated oil filter and oil regulation valve ensures external hoses are reduced to a minimum to guarantee the highest levels of quality and reliability are achieved
Easy Servicing Easy Servicing Information
The design of these packages assures the service points are readily accessible. The enclosure side doors are hinged and removable to allow complete access to all service points. The reduced number of moving parts also lowers maintenance costs.
Easy Servicing First Class Accessibility
Panels and covers easily removable with quick-release catches
Easy Servicing Service Friendly Design
Short servicing timesLong service intervalsReduced service costs
High Modern Control System
GD Pilot control system for reliability and simplicity of operation.The advanced control system ensures reliable operation and protects your investment by continuously monitoring the operational parameters. The "GD PILOT" controller also has the capability to have programmable inputs and outputs, control additional equipment as well as providing the following features with a clear readable text.Discharge/line pressure displayOil temperature displayTotal hours run and loaded hoursService due indicatorEnhanced fault log monitorReal time clockTimer controlled Stop/StartRemote Stop StartAuto restart on power failureSecond pressure settingStatus indicationRS485 - Modbus RTU
Note
For additional information please contact Gardner Denver™ or your local representative.
Small Installation Footprint And Integrated Dryer Concept
All models ESM 23-29 are available with an integrated dryer. This option comes complete with a dryer and water separator, both fitted with zero loss drains, to eliminate expensive air loss and maximize energy efficiency.Thanks to ESD control the dryer only use energy when the system actually needs compressed air unlike conventional dryers which continue to consume energy even when the system is off load. These features save energy and considerably enhances the reliability of the compressed air supply.
Specifications Industry Standardscertifications
ISO 7183 | SO1217
Specifications Series
ESM
Technical Data Drive Motor
22 kW
Technical Data Free Air Delivery Fad At 10 Bar Nominal Pressure
3.46 m³/min
Technical Data Free Air Delivery Fad At 13 Bar Nominal Pressure
2.99 m³/min
Technical Data Free Air Delivery Fad At 75 Bar Nominal Pressure
4.16 m³/min

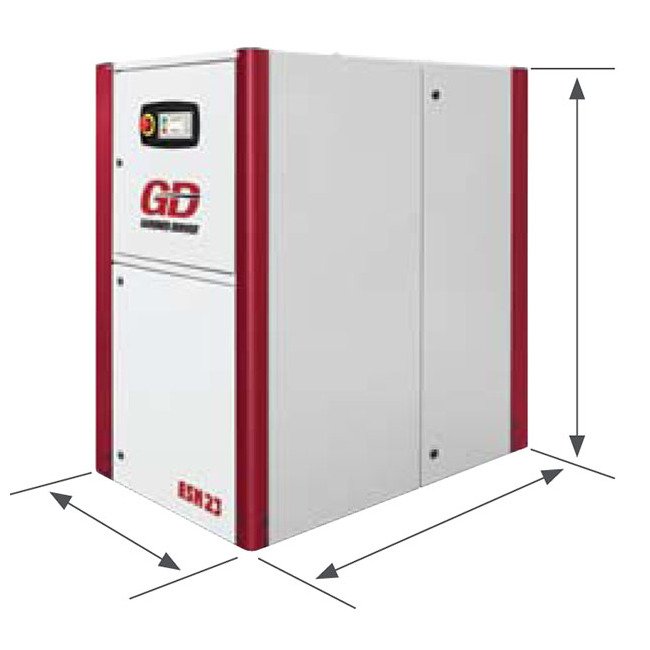

Technical Data Height
1612 mm
Technical Data Length
1345 mm
Technical Data Noise Level At 1 M
67 dBA
Technical Data Noise Level Tolerance At 1 M
±3 dB
Technical Data Nominal Pressure
7.5 bar | 10 bar | 13 bar
Technical Data Note For Free Air Delivery Fad
Data measured and stated in accordance with ISO 1217, Ed. 4, Annex C & Annex E at the following conditions and the following working pressures are used: 7.5 bar models at 7 bar, 10 bar models at 9 bar and 13 bar models at 12 bar.Air Intake Pressure 1 bar aAir Intake Temperature 20 ºCHumidity 0% (Dry)
Technical Data Weight
650 kg
Technical Data Width
880 mm
The Synthetic Efficiency Advantage
The synthetic efficiency advantage with Gardner Denver™r AEON™ 9000 SP lubricant as a standard.A unique synthetic lubricant designed specifically to maximize compressor efficiency and provide optimum lubricity.A proven track record of service-life up to 6,000 hours in the most rugged operating environments.Extended life timeMaximum protection for internal components.Protect your investmentGardner Denver™ recommends regular oil sampling and analysis provided by GD to ensure the highest level of protection against component failure."Green" AdvantageExtended drain intervalsEnergy Savings as a result of optimum operation under demanding temperature conditionsMake considerable savings on your energy bill
Warranty
GD 5 Years Extended Warranty - Our Total Commitment to Quality Free of worryGD provides an extended warranty cover on your compressor for 5 years with GD's authorized service providers delivering a guaranteed quality service.(Terms and condition apply. )We believe that the GD 5 years warranty will become a way of life "working when you need it" to provide maximum uptime And peace of mind.GD 5 Years Warranty - a simple and free of charge extended warranty scheme from GD - once again, taking the industry standard and making it better.
Whatever Your Request Gd Has The Smart Solution
The GD rotary screw compressor range from 2.2 - 500 kW, are designed to meet the highest requirements which the modern work environment and machine operators place on them. As a result, the GD compressors are extremely energy efficient, quiet and reliable. These compressors continue to further strengthen Gardner Denver™'s success story - variable and fixed speed compressor technologies available.The OIL FREE GD EnviroAire range from 15 - 110 kW provides high quality and energy efficient compressed air for use in a wide range of applications. The totally oil-free design eliminates the issue of contaminated air, reducing the risk and associated cost of product spoilage and rework, particularly for those customers operating in sterile environments - variable and fixed speed compressor technologies available.A modern production system and process demands increasing levels of air quality. Our complete Air Treatment Range ensures the highest product quality and efficient operation.Our product range's consist of:Refrigerant Dryers.Desiccant Dryers.Condensate Management.Oil/Water Separation Systems.Compressors systems are typically comprised of multiple compressors delivering air to a common header. The combined capacity of these machines is generally greater than the maximum site demand. To ensure the system is operated to the highest levels of efficiency, the GD Connect air management system is essential.The modern GD Connect 12 air management system can intelligently control up to 12 fixed speed or variable speed compressors.The simple GD Connect 4 air system is the ideal control solution for smaller compressed air stations, and will intelligently control up to 4 fixed speed compressors.
