Gardner Denver R-Series CAPRSA Bare Air Compressor Pump
Gardner Denver R-Series CAPRSA Bare Air Compressor Pump
Dependable Gardner Denver R-Series CAPRSA Compressor Pump with ASME approval. Customize for optimal performance.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Gardner Denver R-Series CAPRSA Bare Air Compressor Pump
$1,299.99
Quantity: 1
Claim Your Seller Account
Gardner Denver R-Series CAPRSA Bare Air Compressor Pump
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gardner Denver R-Series CAPRSA Bare Air Compressor Pump is a reliable solution for institutional and industrial applications. With a powerful 5 HP motor, this compressor pump delivers high airflow rates at varying pressure ratings for consistent performance. Featuring a proven design for dependability and longevity, Gardner Denver compressors meet ASME, CAGI, Energy Star, ISO 9001:2008, and NEMA 4 standards, ensuring quality and compliance. Choose from various configurations and options to customize the compressor to match your specific needs.
Product Specifications
Additional Information
Because compressed air is an essential utility, dependability is an essential compressor quality. If your compressor goes down, it can hurt your reputation-and your bottom line. Gardner Denver™ reciprocating compressors are proven units, known for their reliability over decades of use. In addition to dependability, you want a compressor that is user-friendly. Gardner Denver™ comes through again, with a wide selection of configurations and options designed for trouble-free operation.You can’t beat a Gardner Denver™ compressor!
Bare Compressor Pumps
Gardner Denver™ pumps provide dependable service for industrial applications, OEM applications, and pump replacement. The rugged pump design assures reliability and long maintenance intervals.
Base Mounted Air Compressors
Designed for installations where air tanks are remotely located.
Duplex Air Compressors
For extra air delivery when you need it without wasted space. Plus the flexibility of single operation, alternating between compressors, or duplex operation to meet high air demand.
Gasoline Or Diesel Engine Powered Air Compressors
Truck and utility bed mounting design makes these compressors ideal for fleet and field service. Ideal for applications where electricity is not available.
High Performance
R & PL Series compressors are loaded with features designed for day-in, day-out performance. For example, Gardner Denver™’s unique automotive-type domed piston design allows the use of large diameter, low lift valves, while minimizing clearance volume for maximum air delivery.
Long Life
Features such as slow speed operation, rugged cast iron crankcase construction, corrosion resistant steel valves and tapered roller-type main bearings, all contribute to long life.
Note
All units are built to ISO 9001 standards.
Proven Dependability
You rely on compressed air to perform many tasks efficiently. Gardner Denver™ knows that reliability is one of the main reasons for a purchase. Our slow speed, built-in efficiency through design, and the longest compressor warranty in the industry make Gardner Denver™ compressors the proven choice!
Proven Design
Today’s Gardner Denver™ Reciprocating Compressors are the product of decades of design and development. In fact, we introduced the first single-stage compressor in 1919 and have continuously improved its design through innovations in material, production techniques and quality control.
Receivers
Receivers are ASME approved and include a pressure gauge, pressure relief valve, drain valve and service valve.
Select The Configuration That Matches Your Application
With many models from which to choose in both single-stage and two-stage compressors, we can match your exact needs. These configurations, combined with a wide choice of options, provide all the components for a customized installation. They are available in both R-Series splash-lubricated and PL Series pressure-lubricated models.
Select The Options That Match Your Needs

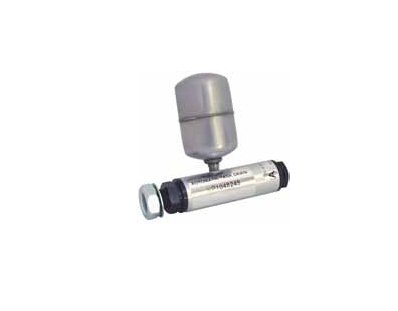

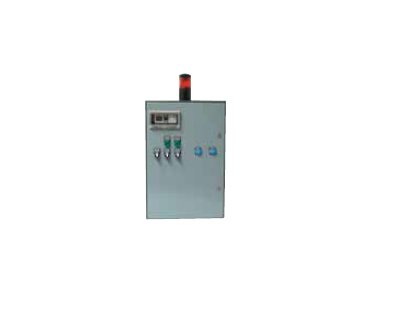

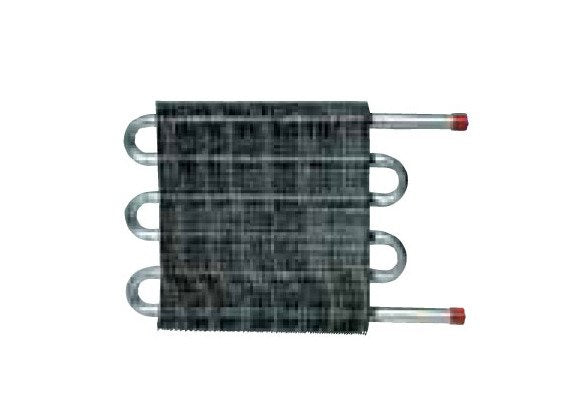

Many options are available to help you develop a Gardner Denver™ compressor package that exactly matches your specific operating requirements.Magnetic StarterFor thermal overload protection, a starter is required for units 3 horsepower and above. Starters available as mounted or unmounted. (Included as standard on most models.)Air-Cooled or Water-Cooled AftercoolerThe factory mounted, heavy-duty, air-cooled aftercooler effectively reduces up to 65% of the moisture from discharged compressed air.Automatic Tank Drain (Pneumatic)Automatically removes water from air receiver upon demand. Eliminates the need for manual purging.Vibration IsolatorsIsolates the compressor unit from the foundation or floor. Reduces noise and protects the unit from any out-of-level floor situation that could cause vibration and damage.Low Oil Level MonitorLow Oil Level Monitor shuts down the unit when oil levels are below an adequate level. Prevents the unit from restarting if oil levels are not at an adequate level.Refrigerated DryerCools compressed air to a 33 ºF - 39 ºF dew point, eliminating additional downstream condensation in the air line. Normally, a dryer should be used in conjunction with an aftercooler.DPR Control PanelThe Microprocessed Duplex Relay Panel was created for controlling a duplex air compressor package. The controller includes visual maintenance and shut down alarms.Gardner Denver™ Compressor LubricantsAEON™ lubricants are blended specifically for Gardner Denver™ compressors for use in harsh compressor environments. They are sourced from extremely stable base stocks and enhanced with carefully selected additive packages to provide long life and superior protection. AEON™ lubricants are suitable for a variety of applications and are available as a mineral oil, synthetic or food-grade synthetic. Available in 55-gallon drums, five-gallon pails, one-gallon bottles and one-quart bottles.
Specifications Airflow Delivery At 125 Psi Pressure Rating
19.1 ft³/min
Specifications Airflow Delivery At 175 Psi Pressure Rating
17.3 ft³/min
Specifications Approximate Shipping Weight
125 lb
Specifications Belt Type
V-Type
Specifications Bore Diameter
2 1/2 in | 4-5/8 in
Specifications Displacement
0.02916 ft³/rev
Specifications Industry Standardscertifications
ASME Approved | Compressed Air and Gas Institute (CAGI) | Compressed Air Challenge™ | Energy Star Partner | ISO 9001:2008 | NEMA 4
Specifications Motor Power
5 hp
Specifications Number Of Cylinders
2
Specifications Oil Capacity Quarts
2
Specifications Port Design
NPT | Tubing
Specifications Series
R
Specifications Speed At 125 Psi Pressure Rating
805 rpm
Specifications Speed At 175 Psi Pressure Rating
734 rpm
Specifications Stroke
3 in
Tank Mounted Air Compressors
Available with horizontal or space-saving vertical tanks, two-stage air compressors compress air to a higher pressure than single-stage compressors.
User Friendly Design
A wide selection of configurations and available options, coupled with serviceability features, make it easy to operate and maintain a Gardner Denver™ compressor. Compare all the features on the pages that follow. You’ll discover why Gardner Denver™ is the value leader in reciprocating compressors for a broad range of automotive and industrial applications.
