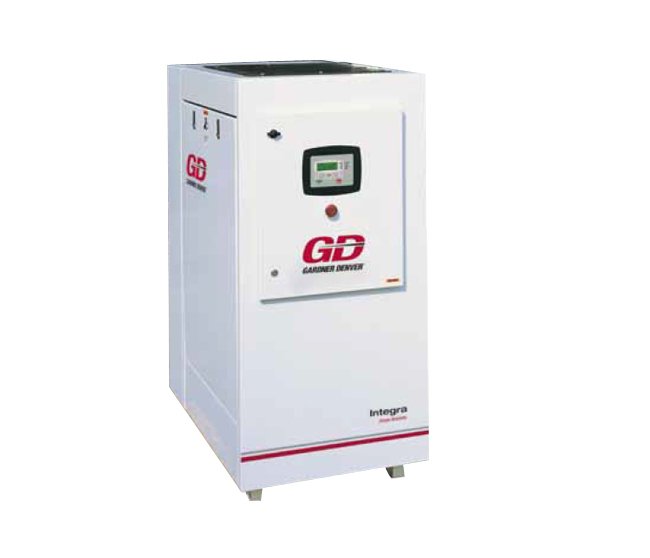

Experience cutting-edge technology and engineering with the GD Integra® 50 hp Rotary Screw Air Compressor. This compressor offers exceptional performance with air deliveries up to 218 acfm at 100 psig pressure, while ensuring maximum reliability and energy efficiency. The integrated compressor air end design and flexible package design minimize downtime and enhance ease of maintenance. With standard features like a quiet enclosure, complete aftermarket support, and compliance with industry standards such as ISO 9001:2008 and NEMA, this compressor is a top choice for both consumer and institutional buyers.
Product Specifications
Acoustic Enclosure
Standard enclosure offers low 75 dBA noise level to ensure quiet operation at any facility.Easy lift-off panels offer fast and convenient access to air end and motor.
Complete Aftermarket Support
Complete line of Gardner Denver™ consumables available to ensure the long life of each compressor!
Flexible Quality Package Design
Non-corrosive control line tubing maximizes reliability - minimizes downtime.Tactfully located controller on the end of each machine for easy multiple unit installation and sequencing.
Integrated Compressor Air End
State-of-the art, Integrated design with 25% fewer parts and connection points than conventional designs delivers maximum reliability.Modular air end design offers a readily accessible bolt-on configuration unlike encapsulated designs that require total replacement.Internal 3-way thermal mixing valve minimizes leak points.Three-stage air/oil separation involving mechanical redirection, cyclone centrifugal type air flow and a pleated filter with inside out final separation to offer less than 2 ppm carryover before the aftercooler.
Minimum Energy Use Rotor Design
Manufactured in one of the most automated, capital intensive rotor cutting plants worldwide. Several thousands of these proven airends are in operation worldwide.Rotor profile with a short seal line saves you money in electrical costs by offering high efficiency through reduced opportunities for air leaks.Precise bearing size that prohibits misalignment. This handles up to 3 times more load capacity than conventional designs to offer you a savings in service costs and extends operation life.
Note
With optional communications/sequencing module.
Optional Equipment
AEON® 9000SP Rotary Screw LubricantAEON® 9000TH High Temperature LubricantAEON® 6000FG Food Grade LubricantAEON® 6000FG-68 High Temperature Food Grade LubricantTEFC Drive MotorODP or TEFC Premium Efficiency Drive MotorWye Delta Motor/StarterCommunication/Sequencing Module
Performance Data Air Delivery At 100 Psig Working Pressure
218 acfm | 6.17 m³/min
Performance Data Air Delivery At 125 Psig Working Pressure
193 acfm | 5.46 m³/min
Performance Data Air Delivery At 150 Psig Working Pressure
171 acfm | 4.84 m³/min
Performance Data Air Delivery At 175 Psig Working Pressure
157 acfm | 4.45 m³/min
Performance Data Frequency
60 Hz
Performance Data Model
EFD
Performance Data Motor Power
50 hp
Performance Data Note For Air Delivery
Capacity measured in accordance with CAGI/PNEUROP acceptance test code PN2CPTC2.
Performance Data Working Pressure
100 psig | 125 psig | 150 psig | 175 psig | 6.9 bar | 8.6 bar | 10.3 bar | 12.1 bar
Specifications Industry Standardscertifications
Compressed Air and Gas Institute (CAGI) | Energy Star Partner | ISO 9001:2008 | NEMA | OSHA
Specifications Operation Direct Current Dc Voltage
24 V
Specifications Phase
3
Specifications Series
GD Integra®
Specifications Service Factor
1.15
Specifications Warranty
5 years
Standard Equipment
Integrated, Single-Stage Rotary Screw Air Compressor with Load/No Load Control3 Phase, 60 Hertz, 1.15 Service Factor, EISA Energy Efficient, Open Drip Proof Drive Motor includes 5 year warranty-standardSmall, Compact FootprintStandard 75 dBA Quiet Sound EnclosureAdjustable Motor BasePackage Mounted Moisture Separator/TrapRadiator-Type Oil Cooler and AftercoolerOSHA Approved Drive GuardSpin-On Type Full Flow Oil FilterEasy Access Service Points Through Removable Door PanelsFactory Fill AEON® 4000 Rotary Screw LubricantHeavy-Duty Inlet Air FilterThermal Mixing Valve for Oil Temperature ControlCorrosion Resistant Control Line TubingAir/Oil Reservoir Pressure Relief ValveMinimum Discharge Pressure/Check ValveAutomatic Blowdown TimerNEMA 4 Control EnclosureMounted and Wired Full-Voltage Magnetic Motor StarterControl Voltage TransformerEmergency Stop ButtonControl Cable KitCSA Labeled and Approved Electrical Controls and WiringAirSmart™ microprocessor controllerLow voltage 24 VDC operationTwo pressure transducer inputsSequence capability for control of up to eight AirSmart™ controlled compressorsRS-232 Serial communications for local monitoring (With optional communications/sequencing module). Ethernet communications for remote monitoring (With optional communications/sequencing module).
Weightsdimensions Approximate Height
69 in | 1753 mm
Weightsdimensions Approximate Length
55 in | 1397 mm
Weightsdimensions Approximate Shipping Weight Enclosed
1474 lb | 669 kg
Weightsdimensions Approximate Width
32 in | 813 mm
Weightsdimensions Note For Approximate Dimensions
Dimensions shown are nominal for all enclosed models.
Weightsdimensions Sound Level With Quiet Enclosure
75 dBA
