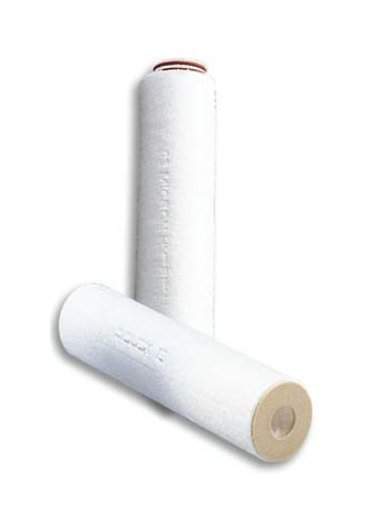

GE Selex Depth Cartridge Filters (SXE, 1.0µm)

Name: GE Selex Depth Cartridge Filters (SXE, 1.0µm)
Brand: Pargreen Process Technologies
SKU: DEP-ced21e
Price: 39.99 USD
Availability: OutOfStock

SKU:DEP-ced21e

GE Selex Depth Cartridge Filters: Precision filtration with 1.0µm rating, FDA compliant, ideal for pharmaceutical, petrochemical, and food industries.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

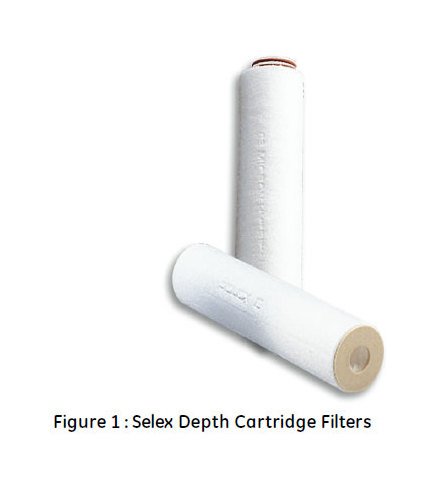

The GE Selex Depth Cartridge Filters (SXE, 1.0 micron) offer superior particle retention efficiency equivalent to absolute rated filters. Constructed with 100% pure polypropylene using a patented manufacturing process, these filters ensure exceptional purity with a sharp efficiency cutoff. With a range of gasket and end adapter options, GE Selex cartridges are suitable for a variety of applications in industries such as pharmaceutical, petrochemicals, and food and beverage. Certified by GE Water & Process Technologies for compliance with FDA regulations, these cartridges are designed for chemical resistance and performance reliability.

Product Specifications

Additional Information 0

Selex depth cartridge filters are made from thermally- bonded fibers of polypropylene. GE Water & Process Technologies certifies that it uses no resin binders, lubricants, antistatic or release agents or other additives in the manufacture of these cartridges, and that the resin used for manufacturing the filter media meets the food contact requirements of the U.S. FDA 21CFR regulations.When required, specify only FDA compliant sealing materials and end adapters.GE filter cartridges are designed and manufactured for resistance to a wide range of chemical solutions. Conditions will vary with each application and users should carefully verify chemical compatibility. Please contact your GE distributor for more information.

General Properties 0

Selex filters are available the following absolute pore size micron ratings: 1, 3, 5, 10, 20 and 30 microns. Tables 1, 2, 3 and 4 show further details on materials of construction, dimensions, flow performance and performance specifications.

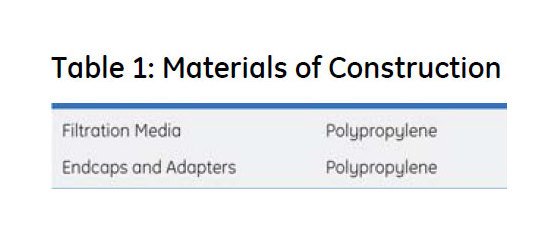

Materials Of Construction Endcaps And Adapters

Polypropylene

Materials Of Construction Filtration Media

Polypropylene

Note 0

Removal efficiencies are reported for a given particle size, i.e. an efficiency of 99% at 3 microns means that the filter removes 99% of the particles that are 3 microns in size.The Beta Ratio (Î²) is calculated as a measure of efficiency for all particles equal to or larger than the given micron size. A Beta Ratio (Î²) of 5000 represents the removal of 99.98% of all particles equal to or larger than the given micron size.Trademark of General Electric Company; may be registered in one or more countries.

Performance Specification For Critical Applications Removal Rati

1.8

Performance Specification For General Applications Removal Ratin

1.0

Performance Specification For General Applications Selex Grade

Specifications Absolute Micron Rating

1.0 Âµm

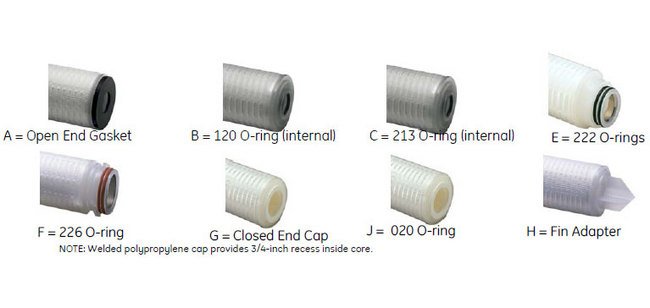

Specifications End 1 Adapter

1 inch (25.4 cm) Open End Gasket | 222 O-Ring | 226 O-Ring | Extended Care | Standard Plain End

Specifications End 2 Adapter

1 inch (25.4 cm) Open End Gasket | Fin | Self Seal Spring | Solid End

Specifications Gasket Material

Santoprene

Specifications Maximum Operating Temperature

140 ÂºF | 60 ÂºC

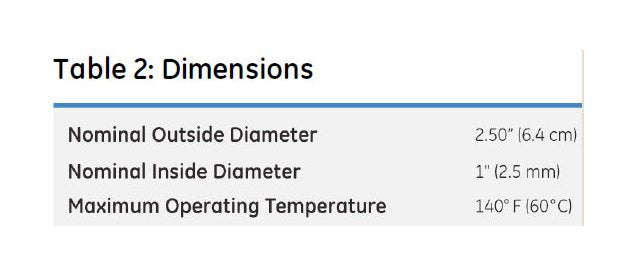

Specifications Nominal Cartridge Length

9 7/8 in | 25.1 cm

Specifications Nominal Inside Diameter

1 in | 2.5 mm

Specifications Nominal Outside Diameter

2.50 in | 6.4 cm

Specifications O Rings Material

Buna | EPDM | Silicone | Viton

Specifications Type

SXE

Applications 0

Magnetic Media (CMP) - solvents, slurry/dispersion, Pre-Filter and Final Filter at CoaterPhotographic - Incoming Water, Liquid Chemicals, Developer, Fixer, Stopper SolutionsPetrochemicals - Waterflood, Completion, Enhanced Oil Recovery, AminesChemical Process Industry - Reagent Grade Chemicals, Process WaterPure Water - Pre-RO, Post- DI Resin TrapFood and Beverage - Clarification, Process Water, Polishing FilterMetal Finishing - Electrodeposition Paint, Precision ElectroplatingPotable Water- Polishing Filter, Giardia RemovalPharmaceuticals - Clarify Production Broths, PrefiltrationOil and gas - well protection
