Green Pin® Bow Shackle with Screw Collar Pin - 8.5 Ton Capacity
Green Pin® Bow Shackle with Screw Collar Pin - 8.5 Ton Capacity
SKU:WIR-de3450
Premium Green Pin® Bow Shackle with Screw Collar Pin - 8.5 Ton Capacity, meets US Federal Spec. RR-C-271 & EN 13889 standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Green Pin® Bow Shackle with Screw Collar Pin - 8.5 Ton Capacity
$59.99
Quantity: 1
Claim Your Seller Account
Green Pin® Bow Shackle with Screw Collar Pin - 8.5 Ton Capacity
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

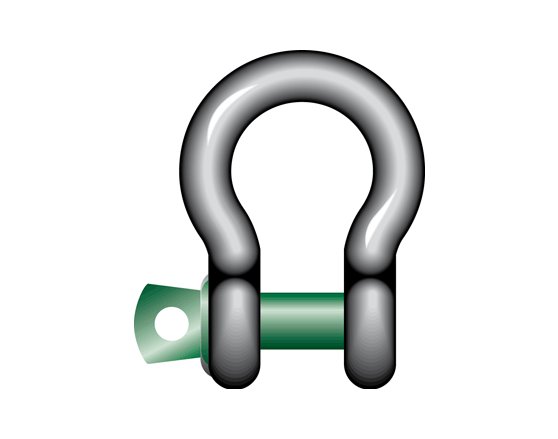

The Green Pin® Standard Bow Shackle with Screw Collar Pin is a top-quality hardware tool designed to meet the performance requirements of US Federal Spec. RR-C-271 and EN 13889 standards. Made in Holland, this shackle features a hot-dipped galvanized finish for durability. With a working load limit of 8.5 tons, this shackle is ideal for lifting and towing applications. The precise dimensions ensure a secure fit, while the robust construction guarantees reliable performance in demanding environments.

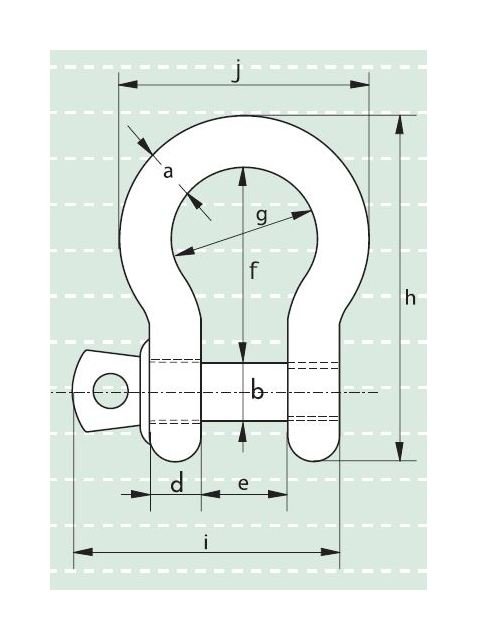

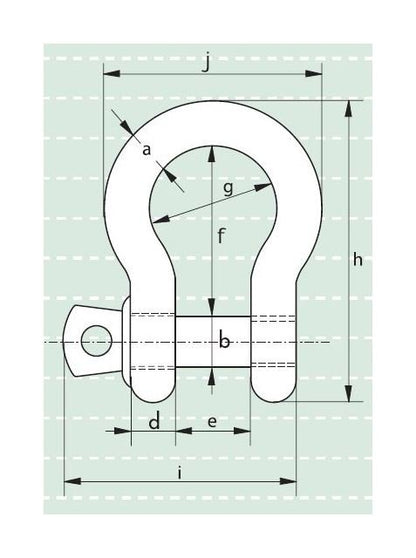

Product Specifications
Specifications Diam Bow A Inch
1

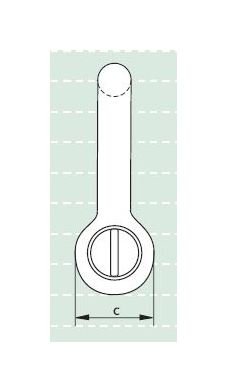

Specifications Diam Eye C Inch
2-11/32
Specifications Diam Pin B Inch
1-1/8
Specifications Length Bolt I Inch
5-9/16
Specifications Length H Inch
6-29/32
Specifications Length Inside F Inch
3-3/4
Specifications Weight Each Lbs
4.86
Specifications Width Bow G Inch
2-11/16
Specifications Width Eye D Inch
1
Specifications Width Inside E Inch
1-23/32
Specifications Width J Inch
4-7/8
Specifications Wll Tons
8.5
