Green Pin® Dee Shackles with Screw Collar Pin - Hot Dip Galvanized

Name: Green Pin® Dee Shackles with Screw Collar Pin - Hot Dip Galvanized
Brand: Lexco Cable Manufacturing
SKU: WIR-e2af53
Price: 129.99 USD
Availability: OutOfStock

SKU:WIR-e2af53

High-quality Green Pin® Dee Shackles with Screw Collar Pin for lifting and towing applications, hot dip galvanized finish, WLL: 25 tons.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

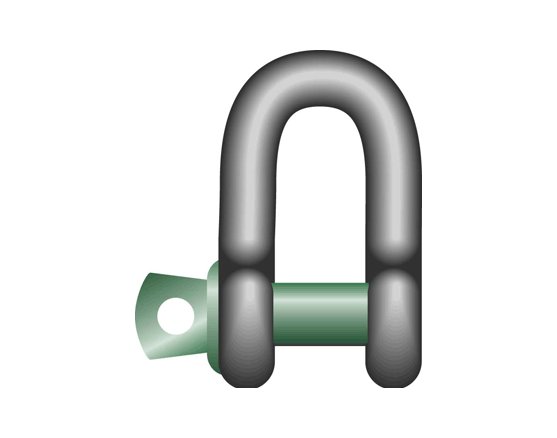

The Green Pin® Standard Shackles Dee Shackles with Screw Collar Pin are built to meet EN 13889 standards and exceed the performance requirements of US Fed. Spec. RR-C-271. Crafted with hot-dipped galvanized finish for enhanced durability and corrosion resistance, these shackles, made in Holland, are ideal for lifting or towing applications. With a Working Load Limit (WLL) of 25 tons, these shackles feature precise dimensions and a robust design to ensure reliable performance in demanding environments.

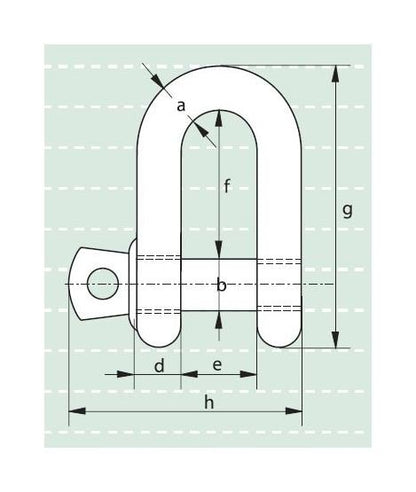

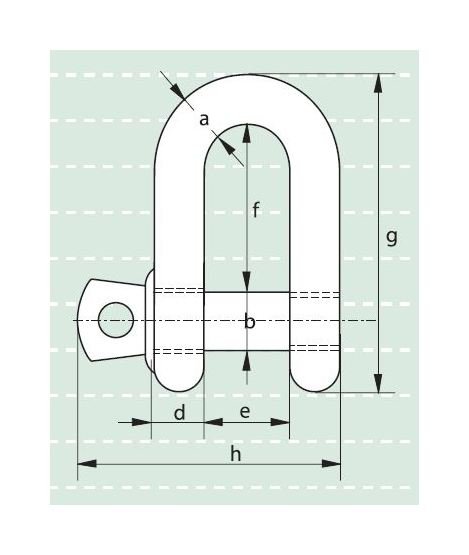

Product Specifications

Specifications Diam Bow A Inch

1-3/4

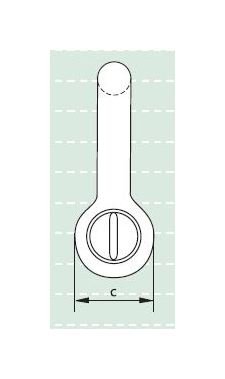

Specifications Diam Eye C Inch

4-1/8

Specifications Diam Pin B Inch

Specifications Length Bolt H Inch

9-13/16

Specifications Length G

11-5/32

Specifications Length Inside F Inch

5-7/8

Specifications Weight Each Lbs

25.23

Specifications Width Eye D Inch

1-25/32

Specifications Width Inside E Inch

2-29/32

Specifications Wll Tons
