Green Pin® Standard Bow Shackles with Safety Bolt
Green Pin® Standard Bow Shackles with Safety Bolt
SKU:WIR-dbeb30
High-performance Green Pin® Bow Shackles with Safety Bolt, hot-dipped galvanized, 9.5-ton WLL, ideal for lifting & towing.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Green Pin® Standard Bow Shackles with Safety Bolt
$59.99
Quantity: 1
Claim Your Seller Account
Green Pin® Standard Bow Shackles with Safety Bolt
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

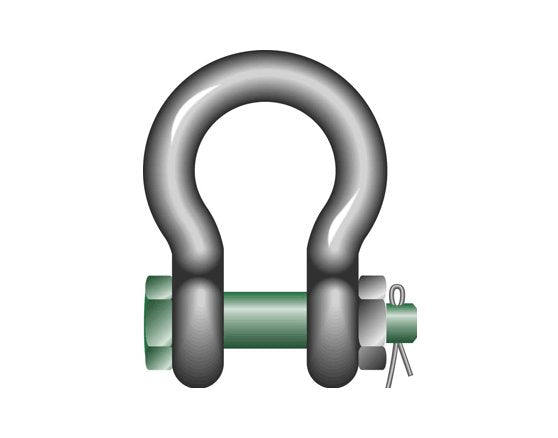

The Green Pin® Standard Bow Shackles with Safety Bolt are designed to meet the highest performance requirements of US Federal Spec. RR-C-271. These hot-dipped galvanized shackles, made in Holland, offer a Working Load Limit (WLL) of 9.5 tons. Ideal for lifting or towing applications, these shackles feature precise dimensions and a safety bolt for secure fastening.

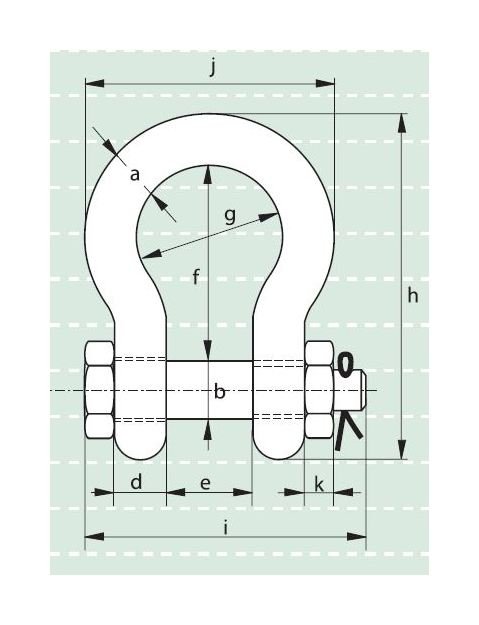

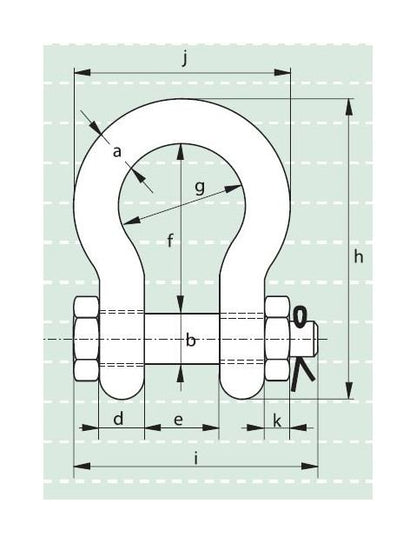

Product Specifications
Specifications Diam Bow A Inch
1-1/8

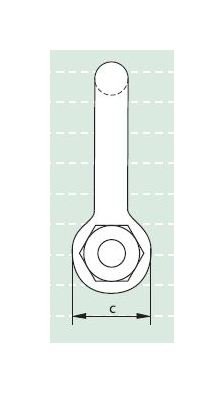

Specifications Diam Eye C Inch
2-5/8
Specifications Diam Pin B Inch
1-1/4
Specifications Length Bolt I Inch
6-19/32
Specifications Length H Inch
7-3/4
Specifications Length Inside F Inch
4-1/4
Specifications Thickness Nut K Inch
1-1/8
Specifications Weight Each Lbs
8.06
Specifications Width Bow G Inch
2-15/16
Specifications Width Eye D Inch
1-1/8
Specifications Width Inside E Inch
1-7/8
Specifications Width J Inch
5-3/8
Specifications Wll Tons
9.5
