Griplock® Seismic Bracing Systems - Seismic Event Mitigation Solution

Name: Griplock® Seismic Bracing Systems - Seismic Event Mitigation Solution
Brand: Griplock Systems, LLC
SKU: THE-3b712d
Price: 249.99 USD
Availability: OutOfStock

SKU:THE-3b712d

Conform to California Building Code with Griplock® Seismic Bracing Systems. Limit fixture movement during seismic events for enhanced safety.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Griplock® Seismic Bracing Systems offer a reliable solution for seismic event mitigation, designed to conform to California Building Code regulations. With two strategic system options, this product enhances safety by limiting excessive movement during seismic activity. System 1 features a single 3/32" cable with CC-UNICROSS attachment, while System 2 boasts longitudinal and lateral cables for robust support. The included grippers and couplers ensure secure fixture attachment, providing peace of mind in high-risk environments.

Product Specifications

Additional Information 0

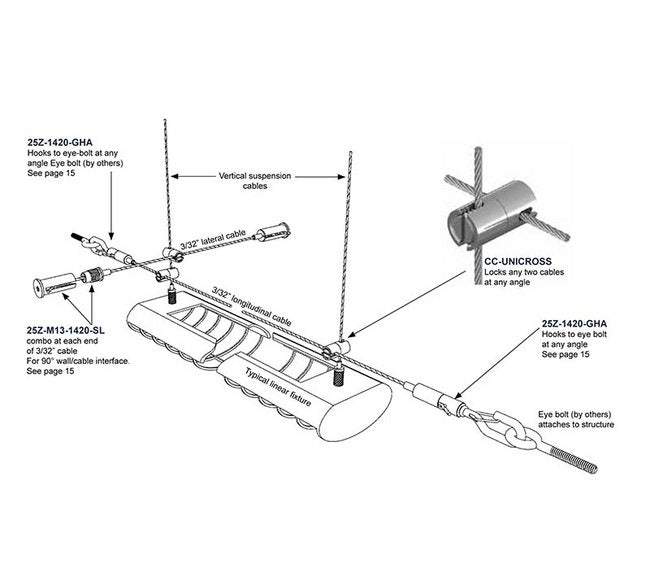

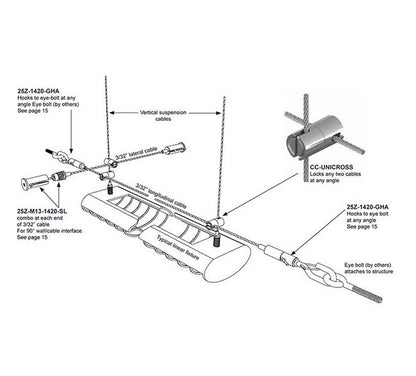

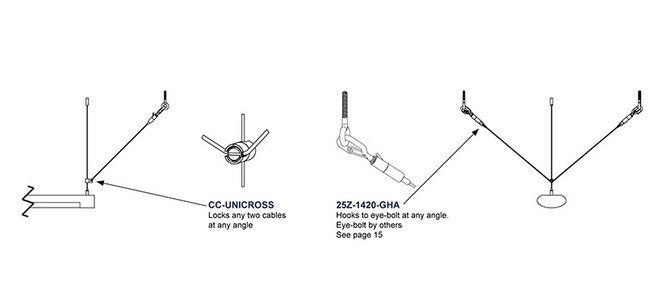

System 1: A single 3/32" cable locks to existing vertical cables via the CC-UNICROSS, running up at a 45º angle to attach to eye-bolts at the ceiling structure via the 25Z-1420-GHA.System 2: Longitudinal and lateral 3/32" cables run from wall to wall, intersecting each other and vertical cables close to the fixture. Use the CC-UNICROSS at these intersections. Use an adjustable gripper at either end so bulk 3/32" cable can be employed.Use 25Z-M13-1420-SL gripper & coupler combo for cables that run perpendicular to wall surfaces or 25Z-1420-GHA gripper and hook combo for all wall surfaces and all angles.

Note 0

Other options are available, but not illustrated.

Specifications Components

25Z-1420-GHA | 25Z-M13-1420-SL | CC-UNICROSS

Griplock® Seismic Bracing Systems - Seismic Event Mitigation Solution
