Gripper® 143-8 Series Hub Test Plug - 4.44 to 4.83 inches
Gripper® 143-8 Series Hub Test Plug - 4.44 to 4.83 inches
SKU:HIG-823a82
Versatile Gripper® 143-8 Hub Test Plug for sealing damaged threads & conducting tests in hub fittings. Pressure-rated, yellow color for visibility, secure seal with rubber o-ring.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Gripper® 143-8 Series Hub Test Plug - 4.44 to 4.83 inches
$24.99
Quantity: 1
Claim Your Seller Account
Gripper® 143-8 Series Hub Test Plug - 4.44 to 4.83 inches
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gripper® 143-8 Series Hub Test Plug is a versatile solution for sealing damaged threads and conducting tests in hub fittings. With a range of use from 4.44 to 4.83 inches, this plug is pressure-rated for DWV tests, featuring glass-reinforced ABS construction with stainless steel components. The yellow color enhances visibility in pipes, and the natural rubber o-ring ensures a secure seal. Compliant with DWV testing requirements, this plug comes with a galvanized carriage bolt to prevent corrosion and an easy-to-install zinc wing nut.

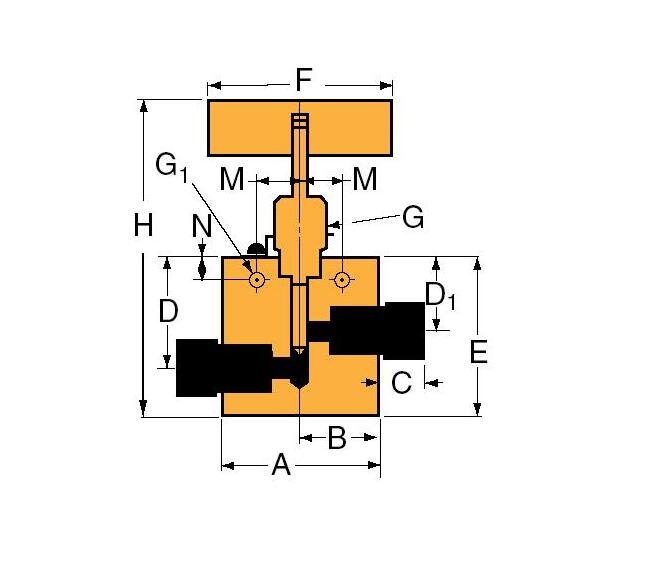

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.81 in | 20.57 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.56 in | 39.62 mm
Specifications E Height
2.44 in | 61.98 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.06 in | 128.52 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.33
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
