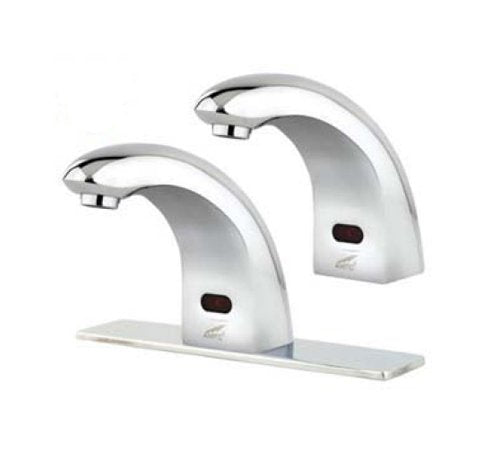

HEALTHFLO™ Automatic Faucet Valve - Model AEF-300HF
HEALTHFLO™ Automatic Faucet Valve - Model AEF-300HF
SKU:AUT-3250bc
Upgrade hand hygiene with the HEALTHFLO™ Model AEF-300HF - the ultimate choice for healthcare facilities seeking superior infection control.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
HEALTHFLO™ Automatic Faucet Valve - Model AEF-300HF
$279.99
Quantity: 1
Claim Your Seller Account
HEALTHFLO™ Automatic Faucet Valve - Model AEF-300HF
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HEALTHFLO™ Model AEF-300HF Automatic Faucet Valve revolutionizes hand hygiene in healthcare facilities. Featuring Bacterial Growth Limiting Components (BGLC™) and a patented motor drive mechanism, this sensor faucet eliminates biofilm growth by ditching solenoids and porous diaphragms. With a self-cleaning triggering assembly and meticulous design to maintain specified flow rates regardless of water pressure variations, it ensures enhanced hygiene. Available in 0.5gpm, 1.0gpm, and 1.5gpm options, its versatility in power sources—from batteries to an eco-friendly hydro-generator—makes it a top choice for healthcare settings.
Product Specifications
Features Features
1 Hole Center Set Mounting | 2 Second (s) Shut Off Delay | 3 Hole 8 Inch (in) Center Set Mounting Using Cover Plate | Adjustable Digital Sensing Range: 2 Inch (in) (55 Millimeter (mm)) - 6 Inch (in) (150 Millimeter (mm)) | Americans with Disabilities Act (ADA) Compliant | Automatic Water Flow Shut-Off: 50 Second (s) | Chrome Plated Solid Brass Spout (Standard) | Easy Battery Replacement - No Water Shut Off Necessary | Easy Installation | Hands Free Infrared Sensor Activation | Less Than 0.25% Lead Content by Weighted Average | Operating Water Pressure: 10 to 125 Pound per Square Inch (PSI) | Patented BRV® and Gear Motor Drive | Powered by Four (4) C-Cell Batteries (Included) | Removable Filtering System (Easily Cleaned)
Specifications Automatic Shut Off Time
50 sec
Specifications Battery Life
400,000 cycles | 3 year
Specifications Battery Type
Four (4) C-Cell
Specifications Depth
90 mm | 3.55 in
Specifications Flow Rate
0.5 gpm | 1.9 L/min
Specifications Low Battery Indicator
Solid Red Light on Sensor
Specifications Mounting Applications
1 Hole Center Set | 3 Hole 8 Inch (in) Center Set (using cover plate)
Specifications Operation
Automatic (Gear Motor Drive)
Specifications Optional Alternate Power
Plug-in 6-Volt (V) AC Power Adapter | Plug-in Hydro-power Electric Generator
Specifications Overall Height
141 mm | 5.56 in
Specifications Overall Length
192 mm | 7.56 in
Specifications Overall Width
160 mm | 6.3 in
Specifications Pop Up Drain Rod
None
Specifications Sensing Range
55 to 150 mm | 2 to 6 in
Specifications Sensor Location
Base of Spout
Specifications Sensor Range Setting
Digital Push Button
Specifications Sensor Type
Infrared
Specifications Shut Off Delay Time
2 sec
Specifications Spout
Solid Brass Spout
Specifications Supply Inlet Size
1/2 in
Specifications Temperature Control
None (use Thermostatic Mixing Valve (TMV) to mix hot/cold water)
Specifications Working Water Pressure
10 to 125 psi
