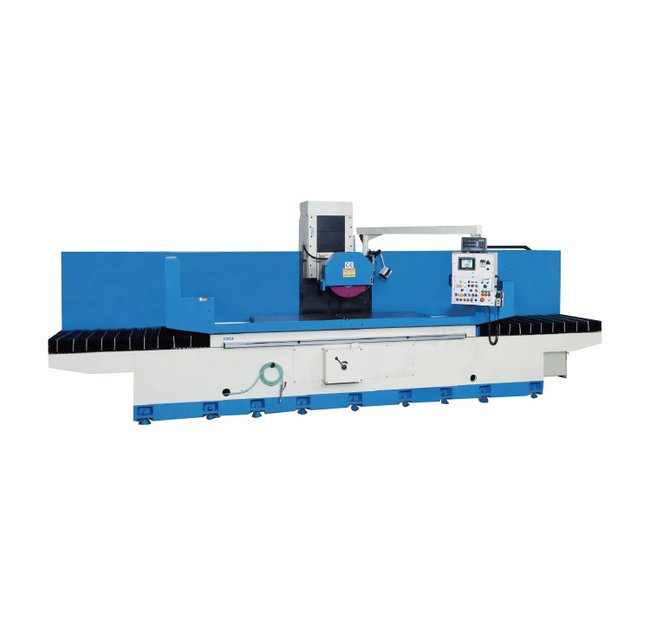

The Supertec® Column Type Series Precision and Heavy Duty Surface Grinding Machines are engineered for exceptional accuracy and durability, making them ideal for industrial applications. With a robust construction and precision components, these machines offer a Table Clamping Surface Width of 32 inches, Longitudinal Table Speed ranging from 10 to 105 ft/min, and a maximum Grinding Length of 100 inches. Equipped with innovative features like Auto Downfeed Servo Motor and Crossfeed Intermittent control, these grinding machines ensure high-quality surface finishes and efficient operation. Manufactured by Supertec®, a trusted name in precision engineering, these machines deliver superior performance and reliability, meeting the demanding requirements of institutional and government buyers.
Product Specifications
Note 0
GT Column Surface Grinders 2A-2Axis Automatic, 3A-3Axis Automatic.Model 2A is two axis automatic with rapid down feed, model 3A is three axis automatic and auto-stop. Y & Z axis are driven by servo motor with touch screen panel NC control.Manufacturer reserves the right to change or improve specifications without notice.
Optional Accessories 0
Vertical Spindle Grinding EquipmentElectro-Magnetic Chuck (includes Rectifier with Automatic Demagnetizing )Spare Wheel FlangeBalancing StandHalogen Machine LampCoolant System with Paper FilterMagnetic Dust SeparatorDRO 1 Or 2 Axisvariable Speed Spindle
Specifications Approximate Net Weight
25300 lb
Specifications Arm Movement Type Grinding Area
32 x 48 ~ 40 x 220 in²
Specifications Auto Downfeed Servo Motor
0.0005 to 0.002 in
Specifications Chuck Weight
2590 lb
Specifications Continuous Crossfeed
0.9 to 5 ft/min
Specifications Crossfeed Intermittent
0.004 to 1.57 in/feed
Specifications Crossfeed Per Division
0.0001 in | 0.001 in | 0.005 in
Specifications Double Column Type Grinding Area
48 x 80 ~ 80 x 240 in²
Specifications Downfeed Per Division Mpg
0.0001 in | 0.0005 in | 0.001 in
Specifications Downfeed Per Revolution Mpg
0.01 in | 0.05 in | 0.1 in
Specifications Floor Height
102.7 in
Specifications Floor Length
289 in
Specifications Floor Width
135 in
Specifications Grinding Wheel Inside Diameter
5 in
Specifications Grinding Wheel Inside Diameter Optional
5 in
Specifications Grinding Wheel Outside Diameter
20 in
Specifications Grinding Wheel Outside Diameter Optional
20 in
Specifications Grinding Wheel Width
2 in
Specifications Grinding Wheel Width Optional
3 in
Specifications Hydraulic Pump Motor Power 6 Pole
10 hp
Specifications Longitudinal Table Speed
10 to 105 ft/min
Specifications Manufacturer
Supertec®
Specifications Maximum Cross Travel
33.86 in
Specifications Maximum Distance Between Spindle Center To Table
31.5/39.4 in
Specifications Maximum Grinding Length
100 in
Specifications Maximum Grinding Width
31.89 in
Specifications Maximum Workpiece On Chuck
3960 lb
Specifications Saddle Movement Type Grinding Area
6 x 14 ~ 18 x 40 in²
Specifications Spindle Motor Power Optional
15/25 hp
Specifications Spindle Speed At 50 Hz
1450 rpm
Specifications Spindle Speed At 60 Hz
1720 rpm
Specifications Table Clamping Surface Length
104 in
Specifications Table Clamping Surface Width
32 in
Specifications Total Motor Power
26.5 hp | 36.5 hp
Standard Accessories 0
Grinding Wheel - 1 Pc.Wheel Flange - 1 setCoolant System - 1 setTools with Box - 1 setBalancing Arbor - 1 Pc.Wheel Extractor - 1 setChiller for Hydraulic Oil - 1 setHydro Static System - 1 set
