The High Lift Flange Weld Test Plug from Petersen® Series 151 is a revolutionary tool designed for steam, sniff, purge, weld, and test operations. With superior seal expansion and clearance, this plug eliminates the need for grinding out deep root penetrations, saving time and reducing downtime. Its segmented compression tube allows for easy seal adjustment, while the rugged construction ensures durability. Designed to meet ANSI B16.5 requirements, this plug offers fast installation and testing, low water requirements, and versatile compatibility with different pipe schedules. Say goodbye to conventional flange-to-pipe weld testing hassles with this efficient, cost-saving solution.
Product Specifications

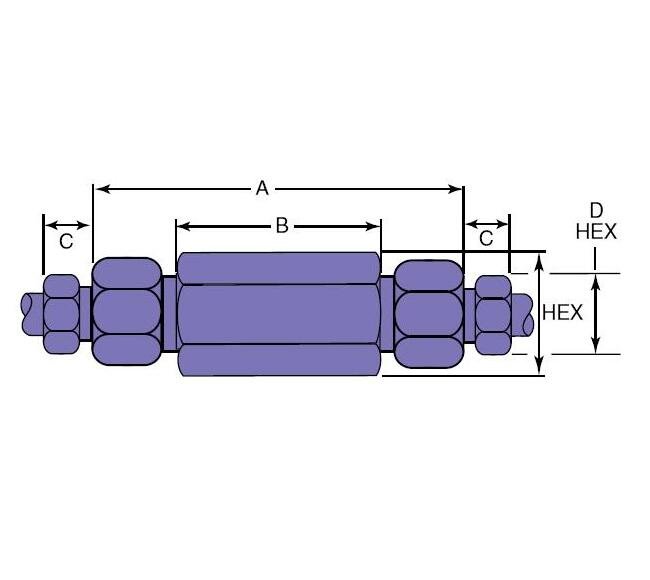

Specifications A Length
2.94 in | 75.56 mm
Specifications B Length
1.68 in | 42.67 mm
Specifications Connection Size And Type
SW375
Specifications C Length
0.53 in | 13.46 mm
Specifications D Hex
0.75 in | 19.05 mm
Specifications Effective Filter Element Area
0.15 in² | 96.77 mm²
Specifications Hex
1.00 in | 25.40 mm
Specifications Micron Size
35/65
Specifications Orifice
0.125 in | 3.18 mm
Specifications Pressure Rating
15000 psi | 1034.19 bar
Specifications Tubing Engagement Depth
0.75 in | 19.1 mm
