High-Performance CHE Series Metallized Film Capacitors - 2.0 µF, 525 V
High-Performance CHE Series Metallized Film Capacitors - 2.0 µF, 525 V
SKU:MET-758ae9
Enhance electrical systems with the durable CHE Series Metallized Film Capacitors. Reliable performance for demanding applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High-Performance CHE Series Metallized Film Capacitors - 2.0 µF, 525 V
$29.99
Quantity: 1
Claim Your Seller Account
High-Performance CHE Series Metallized Film Capacitors - 2.0 µF, 525 V
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your electrical systems with the high-performance CHE Series Metallized Film Capacitors. These capacitors boast a 700 VRMS working voltage, 400 kVA max power, and 800 ARMS max current. With a capacitance range from 0.2 to 2.0 µF and conduction-cooled design, they are ideal for demanding applications that require reliability and efficiency. Built to exceed industry standards, these capacitors offer exceptional performance and durability for both consumer and institutional buyers.
Product Specifications
Specifications Cap
2.0 µF
Specifications Capacitance Range
0.2 to 2.0 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

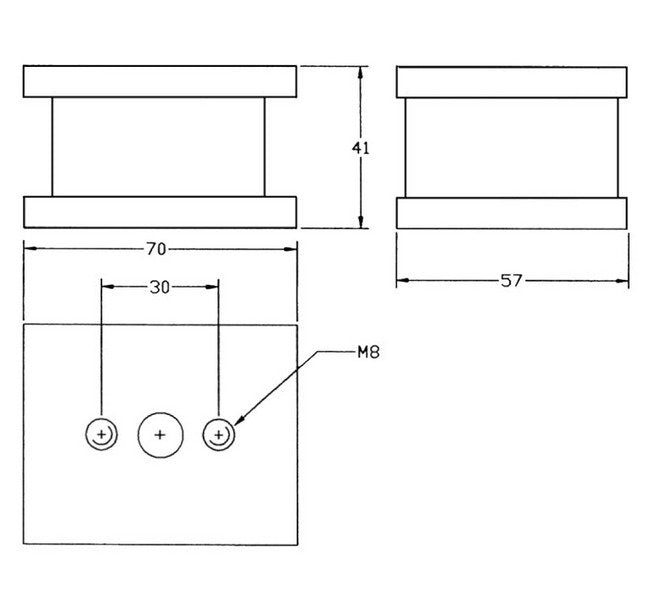

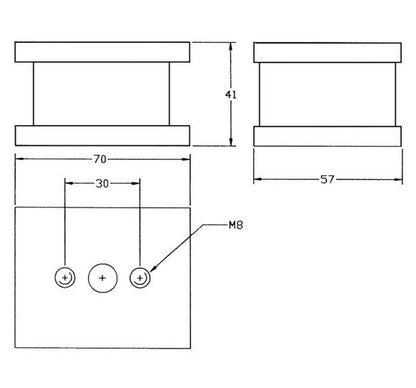

Specifications Dimensions
2 3/4 x 2 1/4 x 2 5/8 in | 70 x 57 x 41 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
127 kHz
Specifications Fl
115 kHz
Specifications Fmax
700 kHz
Specifications Imax Rms
800 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
400 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
525 V
Specifications Weight
0.5 kg | 1.1 lb
