High Precision Infrared Thermometer - 2.3 µm Spectral Range Laser
High Precision Infrared Thermometer - 2.3 µm Spectral Range Laser
SKU:HIG-57cdb5
Accurate and reliable high-performance infrared thermometer for precise temperature measurements in demanding environments.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
High Precision Infrared Thermometer - 2.3 µm Spectral Range Laser
$799.99
Quantity: 1
Claim Your Seller Account
High Precision Infrared Thermometer - 2.3 µm Spectral Range Laser
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

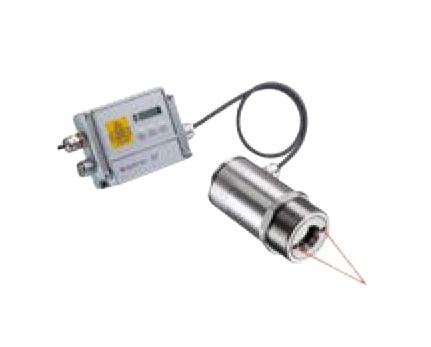

Experience unparalleled accuracy with the High Performance Series 2.3 Micrometer (µm) Spectral Range Laser Infrared Thermometer. Featuring a cutting-edge Two-Piece Sensor with Extended InGaAs Detector, this thermometer offers temperature ranges from 200 to 1500 ºC with precise optical resolution of 300:1. The double laser sighting ensures pinpoint accuracy, while the included accessories provide versatile mounting options. This device, compliant with Federal/DoD procurement standards and NIST guidelines, is an ideal choice for high-precision temperature measurements in research, industrial, and critical applications.
Product Specifications
Accessories Air Purges And Protective Housings
ACCTAPMH - Air purge collar CTratioACCTLAP - Air purge collar CxL/CxVACCTLW - Water cooled housing CxL/CxV, stainless steel, for Tamb up to 175 ºCACCTLCJA - Cooling Jacket AdvancedACCJAAPLS - Air purge laminar for Cooling Jacket AdvancedCooling Jacket Advanced with air purge laminarACCTLAP - Air purge collarACCTLW - Water cooled housingCooling sensing head + purging of optics
Accessories Combinations
ACHAMA - Mounting adapter + ACHAST300 + ACHAPA - Sighting tube + pipe adapter = ACCTLRM - Furnace wall mount for CSlaser/CTlaser
Accessories Mechanical Accessories
ACCTLFB - Mounting bracket, adjustable in one axisACCTLAB - Mounting bracket, adjustable in two axesACHAMA - Mounting Adapter: Mounting and pipe flange including screwsACCTRAIL - Rail mount adapter for CT electronics
Accessories Optical Accessories
ACHAST300 + ACHAPA - Sighting tube M48x1,5, 300 mm length + pipe adapter with M48x1,5 internal thread for Cooling JacketACCJAFPCTL + ACCJAPWCTLSW - Front part + Focusing unit with protective window for Cooling Jacket
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Classificationspecial Features
Two-Piece Sensor with Separate Electronic Box for Low Temperature Measuring of Liquid Metal, Including Programming Keys and Display
Specifications Detector
Extended InGaAs
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Optical Resolution
300:1
Specifications Response Time At 90 Percent
1 ms
Specifications Sighting
Double Laser
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 150
0.5 mm
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 59 I
0.02 in
Specifications Smallest Spot Sf Optics At 1100 Millimeter Mm
11 mm
Specifications Smallest Spot Sf Optics At 4331 Inch In
0.4 in
Specifications Spectral Range
2.3 µm
Specifications Standard Cable Length Options
15 m | 3 m | 8 m | 26.2 ft | 49.2 ft | 9.8 ft
Specifications Temperature Ranges
200 to 1500 ºC | 392 to 2732 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
