High Pressure Hot Tap Insertion Plug - Multi-Flex™ 128 Series
High Pressure Hot Tap Insertion Plug - Multi-Flex™ 128 Series
SKU:POW-d40f1f
Durable high-pressure plug for pressurized pipelines, perfect for repairs & maintenance
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
High Pressure Hot Tap Insertion Plug - Multi-Flex™ 128 Series
$199.99
Quantity: 1
Claim Your Seller Account
High Pressure Hot Tap Insertion Plug - Multi-Flex™ 128 Series
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Multi-Flex™ 128 Series High Pressure Hot Tap Insertion Plug is expertly designed for pressurized pipelines. With a maximum plug diameter of 6 inches, crafted with tough materials like woven ballistic nylon reinforced polyurethane, this plug ensures durability and long life. Its unique features include easy hot tap insertion, the ability to stop flow for repairs, flexibility for navigating corners, and a small deflated diameter. While customization is available for specific requirements, it's important to note that perfect pipeline testing seal may require customization. Ideal for institutional use, this plug meets stringent standards for safety and efficiency in pipeline maintenance.

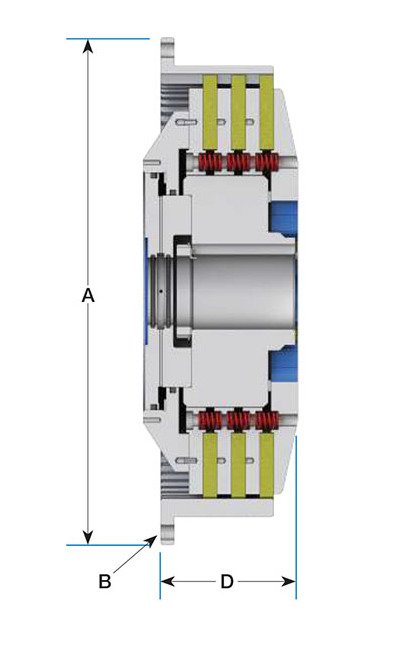

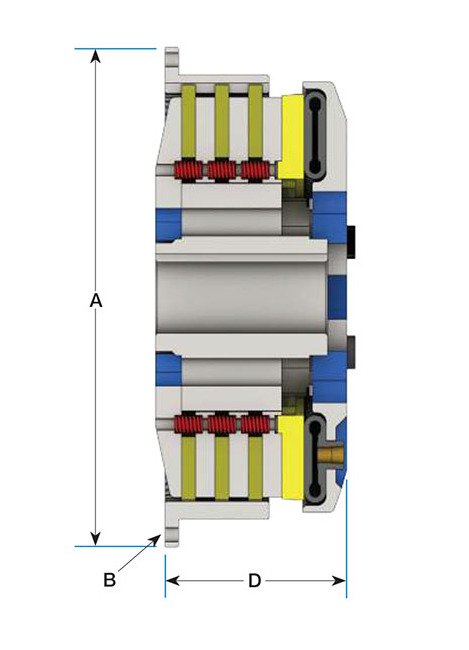

Product Specifications
Dimensions Diameter B
17/32 in | 13.5 mm
Dimensions Dimension A
18.375 in | 466.73 mm
Dimensions Dimension C
8 in | 203.2 mm
Dimensions Dimension D
5-7/16 in | 138.4 mm
Dimensions Hole Circle B
17.25 in | 438.2 mm
Features Features
Coil springs standardAvailable pneumatic or hydraulic actuationHeavy-duty gear tooth friction disc
Note Note
Consult WPT® Application Engineering for application assistance and applicable service factors.Larger bore sizes may be accommodated, consult WPT® Application Engineering.Dynamic torque is 75% of static torque.
Specifications Dimension A Tolerance
+0.003 in | -0.005 in | +0.00 mm | -0.13 mm
Specifications Lining Area
480 in² | 3070 cm²
Specifications Maximum Input Torque
3800 lbf.ft | 5150 N·m
Specifications Maximum Speed
2300 rpm
Specifications Quantity
8
Specifications Ring Type
A
