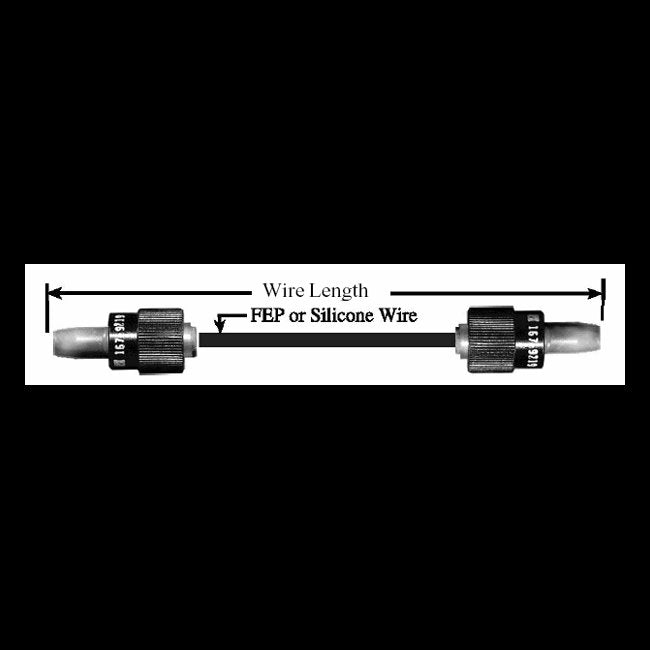

High Voltage Single Pin Connector - Series 730/830 LGH™ Compatible
High Voltage Single Pin Connector - Series 730/830 LGH™ Compatible
SKU:HIG-51b855
High Voltage Single Pin Connector for Military/Aerospace applications. Voltage rating: 10-25 kVDC. Altitude: 70,000 ft. Temp range: -55°C to 125°C.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage Single Pin Connector - Series 730/830 LGH™ Compatible
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage Single Pin Connector - Series 730/830 LGH™ Compatible
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Voltage Single Pin Connector, Series 730/830 LGH™ Compatible, offers unparalleled reliability with a voltage rating of 10 to 25 kVDC and altitude operation up to 70,000 ft. Its temperature range of -55°C to 125°C, coupled with annular sealing rings for improved altitude performance, ensures durability in harsh environments. The plastic body design prevents insulator damage, making it ideal for Military/Aerospace applications like ECM systems, lasers, and airborne power supplies.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Mating Compatibility
Mates all series 730 & 830 receptacles and all LGH 1/2I series receptacles. Also mates Reynolds C730 receipt axles RC1505,2RC1505 and 3RC1505: this combination will reduce the upper operating temperature from +125ºC to +95ºC
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
730
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC at 70,000 ft. (Simulated) at Ambient Temperature
Specifications Voltage Rating
10 kVDC
