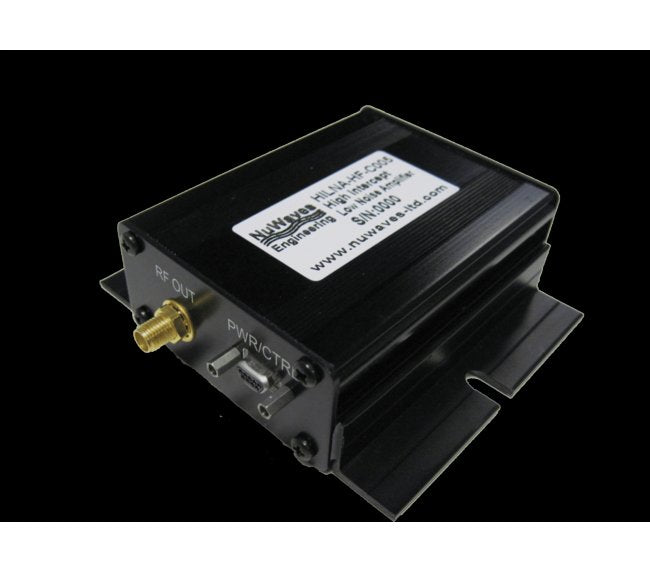

NuWaves’ HILNA HF AGC is a broadband low noise amplifier, featuring Automatic Gain Control (AGC), designed to achieve high gain while maintaining low noise and a high third-order intercept point in the High Frequency (HF) band. This high-performance module delivers 30 dB of gain across the entire broad range of 2 to 50 MHz with an OIP3 of +30 dBm and a P1dB of +18 dBm. This HILNA™ model is also available without Automatic Gain Control (AGC); see the HILNA HF for details. The HILNA HF AGC’s robust power supply also operates over a very broad range, easily allowing the unit to be integrated into systems without regard to power supply precision. Custom Solutions Available: Other Bandwidths Military Screening Form Factors Filtering Gain
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
30 dB
Specifications Input Supply Vdc
12 - 30
Specifications Maximum Frequency
50 MHz
Specifications Minimum Frequency
2 MHz
Specifications Noise Figure Typ
3 dB
Specifications Size Lx W X H
3.15 x 2.50 x 1.18 Inch
Specifications Weight
5 oz
