HiPerTuner™ RF Broadband Preselector
HiPerTuner™ RF Broadband Preselector
SKU:HIP-b1b6e8
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
HiPerTuner™ RF Broadband Preselector
$49.99
Quantity: 1
Claim Your Seller Account
HiPerTuner™ RF Broadband Preselector
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

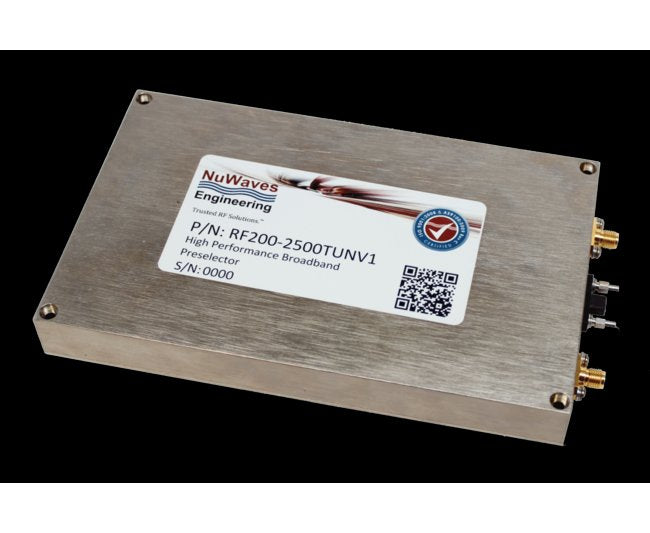

The HiPerTuner RF Broadband Preselector operates over a frequency range of 200 MHz to 2500 MHz, and is digitally controlled via a simple RS-232 interface configuring the tuner for frequency of operation and RF gain control. The RF output is a filtered version of the RF input (i.e. no down-conversion or up-conversion). The RF200-2500TUNV1 is a premier high-performance, wide-band RF tuner (HiPerTuner™) designed for front-end receiver and transmit applications where stringent RF filtering of the signal-of-interest is required with superb out of band rejection. The HiPerTuner boasts a 1 MHz center frequency tuning resolution and 45 dB of gain control with 1 dB steps. Bandwidths are typically between 4% and 8%. HiPerTuner applications include RF communications systems such as software-defined radio RF filtering, test bed developments, front-end filtering for strong out-of-band interference, co-site radio performance improvement, transmit exciter or pre-exciter filtering for broadband and narrow-band communications, etc. A development kit that includes a graphical user interface (GUI) software for the PC control panel and a customized interface cable assembly is available as an ordering option. Demo units are available to qualified customers.
Product Specifications
Specifications Bandwidth Typ
4 to 8 %
Specifications Export Classification
ITAR Controlled
Specifications Maximum Frequency
2500 MHz
Specifications Minimum Frequency
200 MHz
Specifications Noise Figure Typ
6 dB
Specifications Tuning Resolution
1 MHz
