HYBRIDFLUSH® Automatic Low Consumption Urinal Flushing Check Valve
HYBRIDFLUSH® Automatic Low Consumption Urinal Flushing Check Valve
SKU:HIG-4c5e4f
Advanced HYBRIDFLUSH® Automatic Urinal Check Valve - Efficient, Reliable, ADA Compliant
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
HYBRIDFLUSH® Automatic Low Consumption Urinal Flushing Check Valve
$299.99
Quantity: 1
Claim Your Seller Account
HYBRIDFLUSH® Automatic Low Consumption Urinal Flushing Check Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

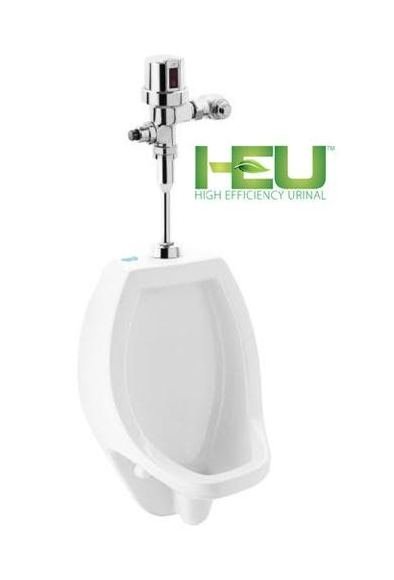

Experience advanced hygiene and water efficiency with the HYBRIDFLUSH® Automatic Low Consumption Urinal Flushing Check Valve. This top-mount system features an exposed automatic flushometer paired with a vitreous china fixture for durable performance. With innovative sensor technology and a patented hybrid design, this system offers both automatic and manual flush options, ensuring reliability and water conservation. Compliant with ADA standards, energy efficiency regulations, and industry certifications, it is the ideal choice for modern restroom facilities seeking top-tier performance and compliance.
Product Specifications
Specifications Arming Delay Time
5 s
Specifications Battery Life
>3 year
Specifications Battery Type
Four AA Alkaline Batteries
Specifications Compliance And Certifications
American Society of Mechanical Engineers (ASME) A112.19.2/Canadian Standards Association (CSA) B45.1Energy Act of 1992Americans with Disabilities Act (ADA)- With installation consideration for section 604 Water Closets, Accessibility Guidelines.International Code Council (ICC)/American National Standards Institute (ANSI) A117.1Texas Accessibility Standards (TAS) - With installation consideration for section:4.16.3. Adult seat height 17 Inch (in) (432 Millimeter (mm)) to 19 Inch (in) (483 Millimeter (mm)).Canadian Standards Association (CSA) B651 - With installation consideration for Clause 4.3.6 of the standard.International Code Council Evaluation Service Paper Money Grading® (ICC-ES PMG) Certified
Specifications Flush Mode
After Every Use
Specifications Ghost Flush
Once Every 24 Hours from Last Flush
Specifications Manual Override
Mechanical Flush Button or None
Specifications Maximum Static Pressure
80 psi
Specifications Minimum Flowing Pressure
25 psi
Specifications Minimum Flow Rate
18 gpm
Specifications Operating Water Pressure
15 to 100 psi
Specifications Operation
Hybrid (Automatic/Manual)
Specifications Outer Casing
Standard-Chrome Metal
Specifications Sensing Range
18 to 30 in | 45 to 75 cm
Specifications Sensor Angle
Adjustable Angle
Specifications Sensor Type
Infrared
Specifications Specifications
Complies with Americans with Disabilities Act (ADA) Accessible StandardsWhite ColorWall Hung Vitreous ChinaWashout Flushing ActionElongated RimIntegral Flushing RimIntegral Trap3/4 Inch (in) (19 Millimeter (mm)) I.P.S. Top Spud Inlet (Included)2 Inch (in) (50 Millimeter (mm)) National Pipe Thread (NPT) Outlet Flange (Included)100% Factory TestedHanging Bracket (1 included)
Specifications The Hybridflush Advantage
The HYBRIDFLUSH® is a revolutionary full-featured automatic/manual flush valve system. The HYBRIDFLUSH® incorporates a unique patented mechanism that allows for automatic/manual operation for unsurpassed reliability. The patented HYBRIDFLUSH® design allows for the original flush handle or push button to be used as an alternate flush option that is independent of the battery power. The HYBRIDFLUSH® by Advanced Modern Technologies Corporation is the most efficient, economical, and complete automatic flush valve system on the market.
Specifications Water Saver Mode
After Every Other Use
