HYBRIDFLUSH® Automatic High Efficiency Flushing Check Valve
HYBRIDFLUSH® Automatic High Efficiency Flushing Check Valve
SKU:HIG-13c8be
Upgrade to the HYBRIDFLUSH® Automatic Flushing Check Valve for efficiency and reliability. ASSE, ASME, CSA certified.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
HYBRIDFLUSH® Automatic High Efficiency Flushing Check Valve
$279.99
Quantity: 1
Claim Your Seller Account
HYBRIDFLUSH® Automatic High Efficiency Flushing Check Valve
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

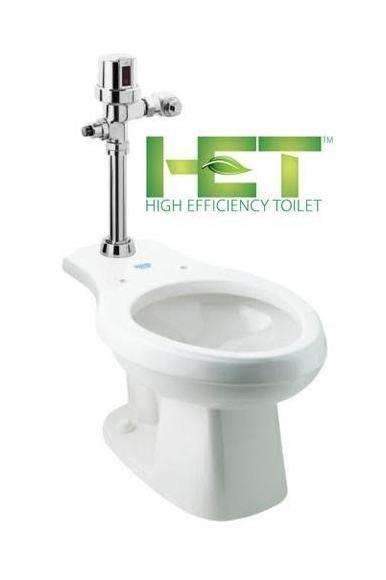

Enhance your restroom with the HYBRIDFLUSH® Automatic Floor Mount High Efficiency Flushing Check Valve. This sensor-operated system boasts a patented BRV® and Gear Motor Drive for reliable automatic/manual operation. With a durable chrome metal casing, adjustable sensor angle, and vandal-resistant design, it ensures efficient water conservation with its high back pressure vacuum breaker. Certified by ASSE, ASME, and CSA, this valve meets stringent industry standards for safety and performance.
Product Specifications
Specifications Arming Delay Time
5 s
Specifications Battery Life
>3 year
Specifications Battery Type
Four AA Alkaline Batteries
Specifications Compliance And Certifications
American Society of Safety Engineers (ASSE) 1037-2015American Society of Mechanical Engineers (ASME) A112.1035-2015Canadian Standards Association (CSA) B125.37-15
Specifications Flush Delay
3 s
Specifications Flush Mode
After Every Use
Specifications Ghost Flush
Once Every 24 Hours from Last Flush
Specifications Manual Override
Mechanical Flush Button or None
Specifications Maximum Static Pressure
80 psi
Specifications Minimum Flowing Pressure
25 psi
Specifications Minimum Flow Rate
25 gpm
Specifications Operating Water Pressure
15 to 100 psi
Specifications Operation
Hybrid (Automatic/Manual)
Specifications Outer Casing
Standard-Chrome Metal
Specifications Sensing Range
18 to 30 in | 45 to 75 cm
Specifications Sensor Angle
Adjustable Angle
Specifications Sensor Type
Infrared
Specifications Specifications
Patented BRV® and Gear Motor DriveHands Free Infrared Sensor ActivationVandal and Water Resistant DesignChrome Plated All Metal HousingQuiet OperationTrue Mechanical Override (Side) *Mechanical Button/Handle Works When Batteries are DrainedOperates on (4) âAAâ Alkaline Batteries (Included)Battery Life - 3+ YearsâLow Batteryâ Blinking LED IndicatorEasy Battery Replacement-No Water Shut Off NecessaryAdjustable Sensor AngleAdjustable Sensor DistanceOptional Three (3) Second Flush Delay ModeOptional 24-Hour Flush ModeUses Proprietary Silicone Diaphragm with Filtered Bypass1 Inch (in) I.P.S. Angle StopAdjustable TailpieceHigh Back Pressure Vacuum Breaker with Single Piece Hex Coupling NutSpud Coupling and Flange for 1-1/2 Inch (in) Top SpudSweat Solder Kit and Wall Flange with Set ScrewHigh Efficiency For Water Conservation
Specifications The Hybridflush Advantage
The HYBRIDFLUSH® is a revolutionary full-featured automatic/manual flush valve system. The HYBRIDFLUSH® incorporates a unique patented mechanism that allows for automatic/manual operation for unsurpassed reliability. The patented HYBRIDFLUSH® design allows for the original flush handle or push button to be used as an alternate flush option that is independent of the battery power. The HYBRIDFLUSH® by Advanced Modern Technologies Corporation is the most efficient, economical, and complete automatic flush valve system on the market.
