HYBRIDFLUSH® High Efficiency Washout Urinal Flushing Valve
HYBRIDFLUSH® High Efficiency Washout Urinal Flushing Valve
SKU:HIG-90d425
Innovative HYBRIDFLUSH® Urinal Flushing Valve with dual operation modes for efficient and reliable performance in commercial settings.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
HYBRIDFLUSH® High Efficiency Washout Urinal Flushing Valve
$189.99
Quantity: 1
Claim Your Seller Account
HYBRIDFLUSH® High Efficiency Washout Urinal Flushing Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

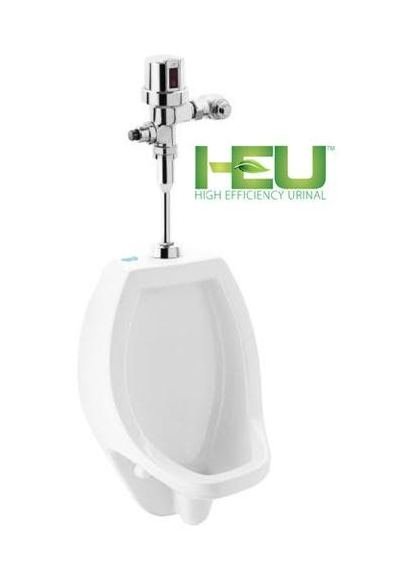

The HYBRIDFLUSH® High Efficiency Half Stall Washout Urinal Flushing Valve is a cutting-edge solution for commercial restrooms. Combining automatic and manual operation, it ensures reliable performance. With a durable chrome metal casing, sensor-operated infrared technology, and adjustable angles, this valve offers efficiency and convenience. Compliance with ADA standards, Energy Act of 1992, WaterSense® listing, and various certifications make it a smart choice for institutions seeking quality and sustainability.
Product Specifications
Specifications Arming Delay Time
5 s
Specifications Battery Life
>3 year
Specifications Battery Type
Four AA Alkaline Batteries
Specifications Compliance And Certifications
American Society of Mechanical Engineers (ASME) A112.19.2/Canadian Standards Association (CSA) B45.1Energy Act of 1992Americans with Disabilities Act (ADA)- With installation consideration for section 604 Water Closets, Accessibility Guidelines.International Code Council (ICC)/American National Standards Institute (ANSI) A117.1Texas Accessibility Standards (TAS) - With installation consideration for section:4.16.3. Adult seat height 17 Inch (in) (432 Millimeter (mm)) to 19 Inch (in) (483 Millimeter (mm)).Canadian Standards Association (CSA) B651 - With installation consideration for Clause 4.3.6 of the standard.International Code Council Evaluation Service Paper Money Grading® (ICC-ES PMG) CertifiedWaterSense® Listed
Specifications Flush Delay
3 s
Specifications Flush Mode
After Every Use
Specifications Ghost Flush
Once Every 24 Hours from Last Flush
Specifications Manual Override
Mechanical Flush Button or None
Specifications Maximum Static Pressure
80 psi
Specifications Minimum Flowing Pressure
25 psi
Specifications Minimum Flow Rate
18 gpm
Specifications Operating Water Pressure
15 to 100 psi
Specifications Operation
Hybrid (Automatic/Manual)
Specifications Outer Casing
Standard-Chrome Metal
Specifications Sensing Range
18 to 30 in | 45 to 75 cm
Specifications Sensor Angle
Adjustable Angle
Specifications Sensor Type
Infrared
Specifications Specifications
Complies with Americans with Disabilities Act (ADA) Accessible StandardsWhite ColorWall Hung Vitreous ChinaWashout Flushing ActionElongated RimIntegral Flushing RimIntegral Trap3/4 Inch (in) (19 Millimeter (mm)) I.P.S. Top Spud Inlet (Included)2 Inch (in) (50 Millimeter (mm)) National Pipe Thread (NPT) Outlet Flange (Included)100% Factory TestedHanging Bracket (1 included)
Specifications The Hybridflush Advantage
The HYBRIDFLUSH® is a revolutionary full-featured automatic/manual flush valve system. The HYBRIDFLUSH® incorporates a unique patented mechanism that allows for automatic/manual operation for unsurpassed reliability. The patented HYBRIDFLUSH® design allows for the original flush handle or push button to be used as an alternate flush option that is independent of the battery power. The HYBRIDFLUSH® by Advanced Modern Technologies Corporation is the most efficient, economical, and complete automatic flush valve system on the market.
Specifications Water Saver Mode
After Every Other Use
