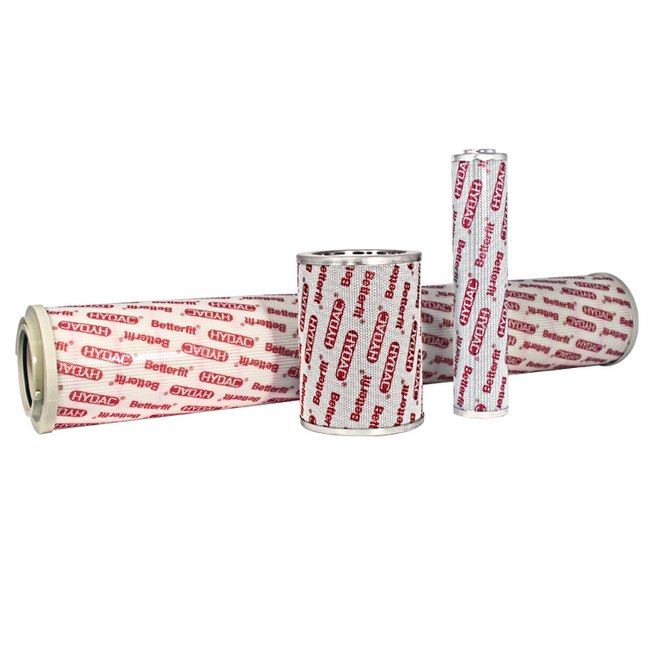

HYDAC Filter Elements RS-0950 - 10µm, Cartridge Style
HYDAC Filter Elements RS-0950 - 10µm, Cartridge Style
SKU:HYD-63ef47
Keep your hydraulic system running smoothly with HYDAC Filter Elements RS-0950. 10 µm filtration, durable polyester material, and wide temperature range for reliable performance.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
HYDAC Filter Elements RS-0950 - 10µm, Cartridge Style
$45.99
Quantity: 1
Claim Your Seller Account
HYDAC Filter Elements RS-0950 - 10µm, Cartridge Style
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your hydraulic system with the HYDAC Filter Elements RS-0950 designed for Return/Suction Filters. This hydraulic filter element features a 10 µm filter rating, polyester filter material, and sturdy steel support tube to ensure efficient filtration and durability. With a temperature range from -30°C to 100°C, and meeting stringent industry standards, this filter element is reliable for various applications.
Product Specifications
Dimensions Dimension Id1
1.89 in
Dimensions Height
7.7 in | 196 mm
Dimensions Inside Diameter 1
48 mm
Dimensions Outside Diameter 1
3 in | 77 mm
Specifications Bun
EA
Specifications Bypass Pressure
0.2 bar | 3 psi
Specifications Cap 1 Material
Plastic
Specifications Cap 1 Type
O-Ring Cap
Specifications Cap 2 Material
Plastic
Specifications Cap 2 Type
Bypass Cap
Specifications Collapse Rating
10 bar
Specifications Configuration
One Open Cap, One Bypass Cap
Specifications Filter Material
Polyester
Specifications Filter Rating
10 µm
Specifications Flow Direction
Inside - Out
Specifications K Factor
0.006 psi/gpm
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
P/HC=Polyester Fleece / Cellulose
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0950 RS 010 P/HC /-B0.2
Specifications Nominal Filter Rating
10 µm
Specifications Outer Sleeve
No
Specifications Seal
Nitrile Rubber (NBR)
Specifications Size
0950
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Steel
Specifications Type
Hydraulic Filter Element
