HYDAC MX Filter Elements for MFX Pressure Filters - BN/HC 5µm
HYDAC MX Filter Elements for MFX Pressure Filters - BN/HC 5µm
SKU:HYD-855fe0
Enhance MFX Pressure Filters with HYDAC MX Filter Elements - 99.9% efficiency, 5µm filtration, and durable design.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
HYDAC MX Filter Elements for MFX Pressure Filters - BN/HC 5µm
$49.99
Quantity: 1
Claim Your Seller Account
HYDAC MX Filter Elements for MFX Pressure Filters - BN/HC 5µm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

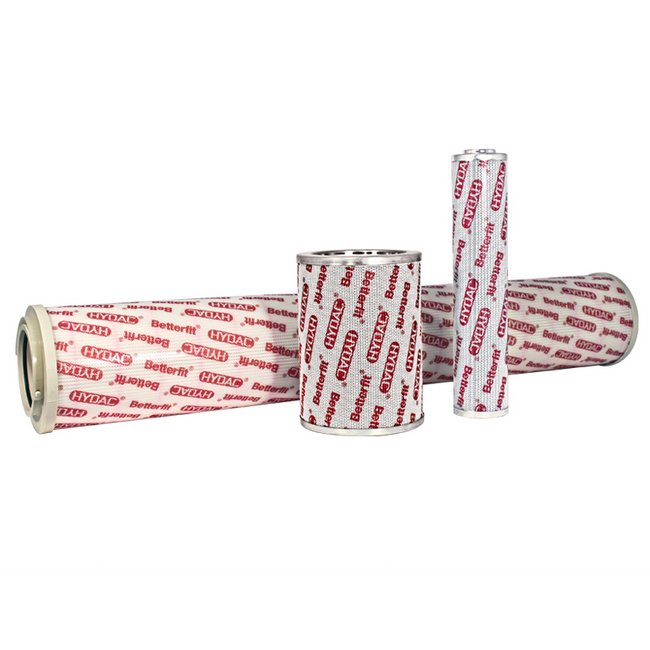

Enhance the performance of your MFX Pressure Filters with HYDAC MX Filter Elements. Featuring Betamicron® Low Collapse media type, these hydraulic filter elements ensure superior filtration efficiency of 99.9% at 5µm, meeting the most stringent cleanliness requirements. With a collapse rating of 20 bar and a bypass pressure of 3.5 bar, these elements are built for durability and reliable operation in varying hydraulic systems. The plastic construction, one bypass cap, one closed cap configuration, and outside-in flow direction make installation and maintenance hassle-free.
Product Specifications
Dimensions Inside Diameter
27.5 mm | 1.083 in
Specifications Absolute Filter Rating
5 µm
Specifications Beta Rating
Ãx(c) ⥠1000
Specifications Bun
EA
Specifications Bypass Pressure
3.5 bar | 50 psi
Specifications Cap 1 Material
Plastic
Specifications Cap 2 Material
Plastic
Specifications Collapse Rating
20 bar
Specifications Configuration
One Bypass Cap, One Closed Cap
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.9 %
Specifications Filter Rating
5 µm
Specifications Flow Direction
Outside - In
Specifications K Factor
0.291 psi/gpm
Specifications Material
Microglass
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
BN/HC=Betamicron® Low Collapse
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0200 MX 005 BN4HC /-B3.5
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-HYDAC PROPRIETARY
Specifications Size
0200
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Plastic
Specifications Type
Hydraulic Filter Element
