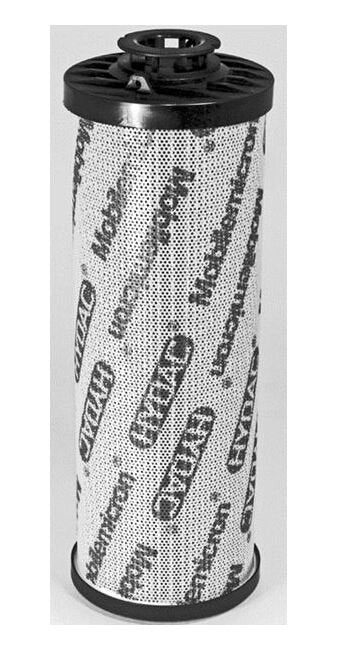

HYDAC RK Filter Elements for Multi Function Filters - Hydraulic Filter Cartridge 10 µm
HYDAC RK Filter Elements for Multi Function Filters - Hydraulic Filter Cartridge 10 µm
SKU:HYD-54c1b9
Highly efficient HYDAC RK Filter Elements for Hydraulic Systems - 10 µm rating, durable construction
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
HYDAC RK Filter Elements for Multi Function Filters - Hydraulic Filter Cartridge 10 µm
$39.99
Quantity: 1
Claim Your Seller Account
HYDAC RK Filter Elements for Multi Function Filters - Hydraulic Filter Cartridge 10 µm
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HYDAC RK Filter Elements are specially designed hydraulic filter cartridges with a filter rating of 10 µm, offering exceptional efficiency of 99.5%. Made of high-quality microglass material and featuring a double open end configuration, these filter elements ensure reliable filtration in hydraulic systems. With a temperature range from -30°C to 100°C, steel support tube, and plastic O-ring caps, these filters are durable and efficient. The outside-in flow direction and absolute 10 µm filter rating make these elements ideal for industrial applications requiring precise filtration.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Inside Diameter
48 mm | 1.89 in
Dimensions Length
13.1 in | 333 mm
Dimensions Outside Diameter
3.7 in | 95 mm
Specifications Absolute Filter Rating
10 µm
Specifications Beta Rating
Ãx(c) ⥠200
Specifications Bun
EA
Specifications Cap 1 Material
Plastic
Specifications Cap 1 Type
O-Ring Cap
Specifications Cap 2 Material
Plastic
Specifications Cap 2 Type
O-Ring Cap
Specifications Collapse Rating
10 bar
Specifications Configuration
Double Open End
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.5 %
Specifications Filter Rating
10 µm
Specifications Flow Direction
Outside - In
Specifications K Factor
0.034 psi/gpm
Specifications Material
Microglass
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
MM=Mobilemicron
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0300 RK 010 MM
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-HYDAC PROPRIETARY
Specifications Seal Material
Nitrile Rubber (NBR)
Specifications Size
0300
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Steel
Specifications Type
Hydraulic Filter Element
