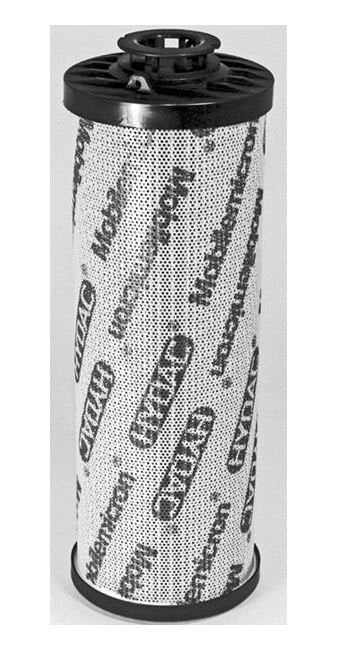

HYDAC RK Hydraulic Filter Element 0400, 15 µm
HYDAC RK Hydraulic Filter Element 0400, 15 µm
SKU:HYD-d5317b
High-performance HYDAC RK Hydraulic Filter Element - 15 µm, cartridge style, efficient filtration
Regular price
$42.99
Regular price
Sale price
$42.99
Unit price
per
Initiate Order
HYDAC RK Hydraulic Filter Element 0400, 15 µm
$42.99
Quantity: 1
Claim Your Seller Account
HYDAC RK Hydraulic Filter Element 0400, 15 µm
$42.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HYDAC Filter Element Type RK is designed for multi-function filters, offering exceptional filtration efficiency at 99.5% with a filter rating of 15 µm. Constructed with high-quality materials including Microglass and Nitrile Rubber, this cartridge-style filter element ensures reliable performance in hydraulic systems. With a flow direction of outside-in and a collapse rating of 10 bar, the HYDAC RK filter element meets stringent industry standards for hydraulic and lube filters, making it a top choice for both consumer and institutional buyers.
Product Specifications
Dimensions Inside Diameter
68 mm | 2.677 in
Dimensions Length
12.5 in | 318 mm
Dimensions Outside Diameter
4.5 in | 114 mm
Specifications Absolute Filter Rating
15 µm
Specifications Beta Rating
Ãx(c) ⥠200
Specifications Bun
EA
Specifications Cap 1 Material
Plastic
Specifications Cap 1 Type
O-Ring Cap
Specifications Cap 2 Material
Plastic
Specifications Cap 2 Type
O-Ring Cap
Specifications Collapse Rating
10 bar
Specifications Configuration
Double Open End
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.5 %
Specifications Filter Rating
15 µm
Specifications Flow Direction
Outside - In
Specifications K Factor
0.019 psi/gpm
Specifications Material
Microglass
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
MM=Mobilemicron
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0400 RK 015 MM
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-HYDAC PROPRIETARY
Specifications Seal Material
Nitrile Rubber (NBR)
Specifications Size
0400
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Steel
Specifications Type
Hydraulic Filter Element
