HYDAC RS 125 µm Hydraulic Filter Element
HYDAC RS 125 µm Hydraulic Filter Element
SKU:HYD-b8b050
Enhance filtration efficiency with HYDAC RS 125 µm Hydraulic Filter Element for hydraulic systems.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
HYDAC RS 125 µm Hydraulic Filter Element
$49.99
Quantity: 1
Claim Your Seller Account
HYDAC RS 125 µm Hydraulic Filter Element
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

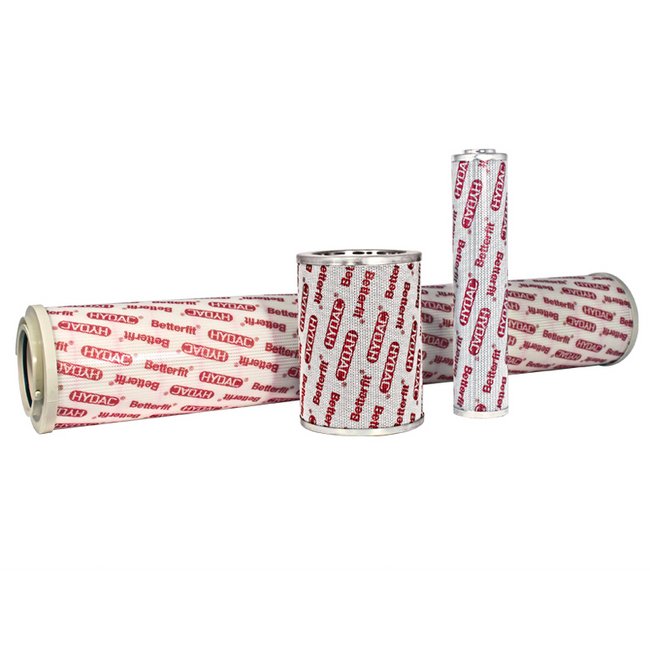

The HYDAC RS 125 µm Hydraulic Filter Element is designed for optimum filtration in return/suction filters. This cartridge-style filter boasts a stainless steel mesh material, one open cap, one bypass cap, and features a flow direction from inside to out. With a temperature range from -30°C to 100°C and a collapse rating of 20 bar, this filter ensures reliable performance in various hydraulic systems. Meeting stringent industry standards, this filter element is ideal for both consumer and institutional buyers seeking superior filtration capabilities.
Product Specifications
Dimensions Dimension Id1
0.866 in
Dimensions Height
6.9 in | 174 mm
Dimensions Inside Diameter 1
40.2 mm
Dimensions Outside Diameter 1
1.7 in | 44 mm
Specifications Bun
EA
Specifications Bypass Pressure
0.3 bar | 4.4 psi
Specifications Cap 1 Material
Plastic
Specifications Cap 1 Type
O-Ring Cap
Specifications Cap 2 Material
Plastic
Specifications Cap 2 Type
Bypass Cap
Specifications Collapse Rating
20 bar
Specifications Configuration
One Open Cap, One Bypass Cap
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Material
Stainless Steel Mesh
Specifications Filter Rating
125 µm
Specifications Flow Direction
Inside - Out
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
W=Stainless Steel Wire Mesh
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0110 RS 125 W
Specifications Nominal Filter Rating
125 µm
Specifications Outer Sleeve
No
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-HYDAC PROPRIETARY
Specifications Seal
Nitrile Rubber (NBR)
Specifications Size
0110
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Steel
Specifications Type
Hydraulic Filter Element
