Industrial Grade Large Loop Demagnetizer
Industrial Grade Large Loop Demagnetizer
Efficiently demagnetize large workpieces with the Industrial Grade Large Loop Demagnetizer. NEMA 12 compliant for industrial use.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Industrial Grade Large Loop Demagnetizer
$1,899.99
Quantity: 1
Claim Your Seller Account
Industrial Grade Large Loop Demagnetizer
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

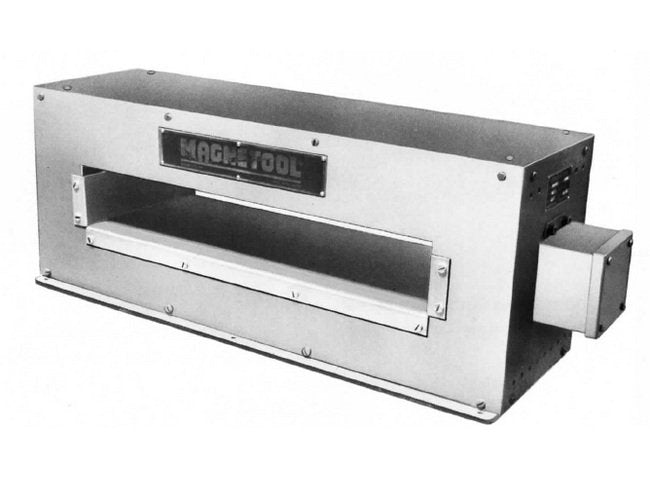

The Industrial Grade Large Loop Demagnetizer is designed for efficient demagnetization of workpieces, ensuring optimal performance and reducing magnetic interference. With a robust construction using Magnetic Steel and Non-Magnetic Stainless Steel, Aluminum, and Brass, this demagnetizer offers continuous duty at 100% efficiency. Featuring an opening height of 3 inches and width of 6 inches, it is built to demagnetize large components effectively. Meeting NEMA 12 Enclosure standards, this demagnetizer guarantees safe and compliant operation in industrial settings.
Product Specifications
Additional Information 0
Another method is to place a Surface Type Demagnetizer under the belt and if necessary, another unit suspended over the belt so the work passes between the two Demagnetizers. These Demagnetizers should be placed on a non-metallic surface to reduce the heating caused by induction.A fused disconnect switch should be inserted in the AC supply line for protection. Special demagnetizer controls can be furnished with a NEMA 12 enclosure, push buttons, pilot lamp, ammeter, voltmeter, foot pedal, and automatic timers. An alternative is to have only the belt pass through the demagnetizer.
Manufacturing Notes 0
CAUTION: Demagnetizers should not be used near sensitive electronic equipment. Special standards are available.
Specifications Current For Single Phase Voltage 230 Vac
8 A
Specifications Current For Single Phase Voltage 460 Vac
4 A
Specifications Duty Percentage
100 %
Specifications Duty Type
Continuous
Specifications Material
Magnetic Steel | Non-Magnetic Stainless Steel, Aluminum, Brass.
Specifications Net Weight
80 lb
Specifications Opening Height
3 in
Specifications Opening Width
6 in
Specifications Overall Depth
8 in
Specifications Overall Height
11 in
Specifications Overall Width
24 1/2 in
Specifications Standards
NEMA 12 Enclosure
