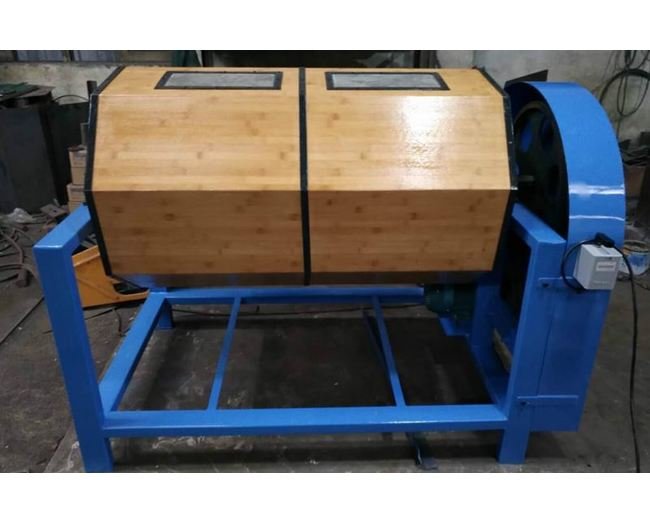

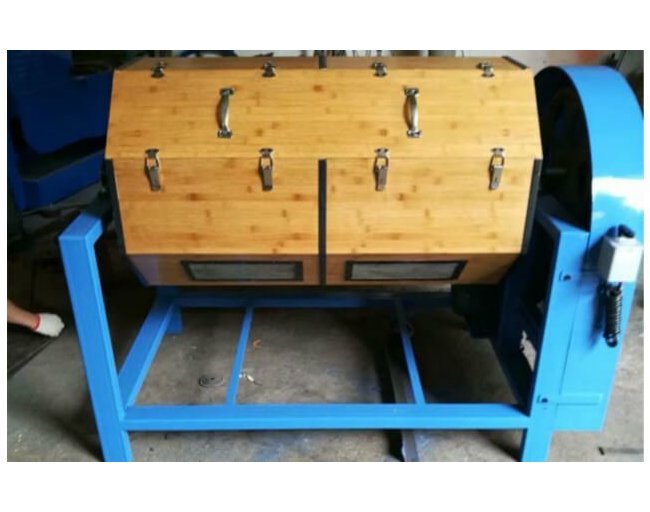

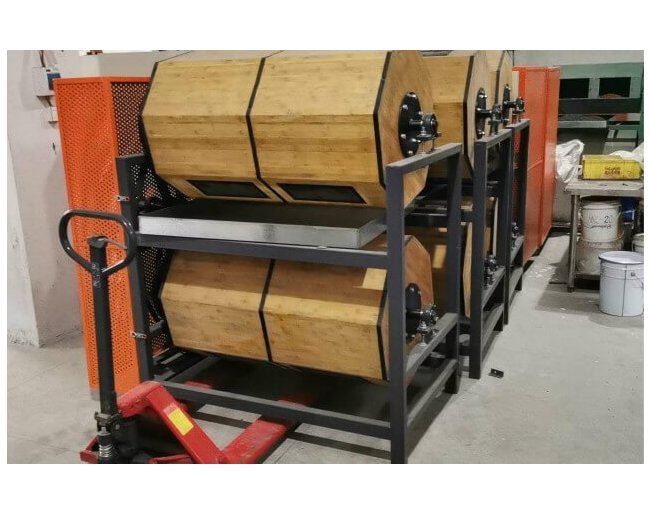

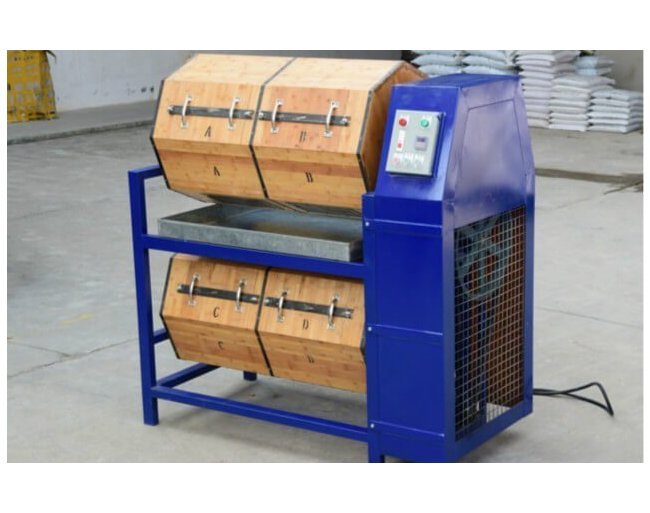

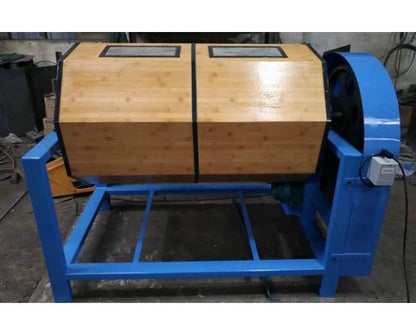

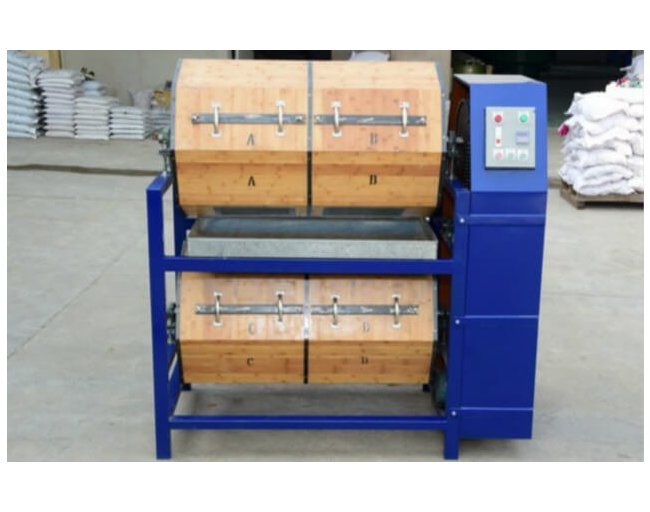

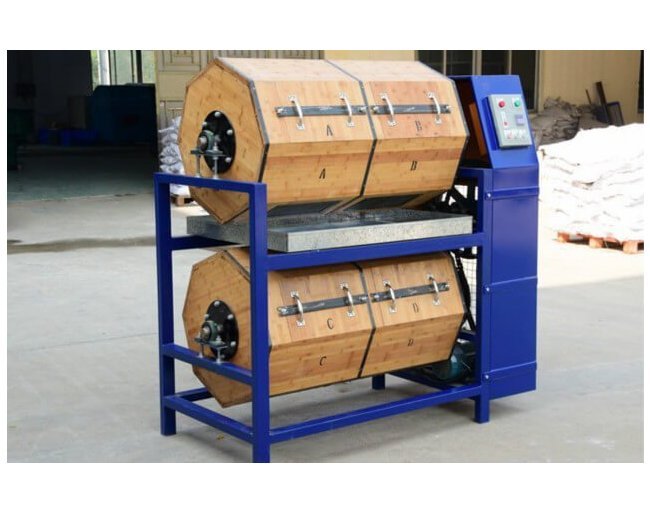

Inovatec JFH Series 300L Wood Barrel Mass Finishing Machine
Inovatec JFH Series 300L Wood Barrel Mass Finishing Machine
Achieve precision surface refinement with the Inovatec JFH 300L Wood Barrel Mass Finishing Machine. Ideal for small parts and precision components.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Inovatec JFH Series 300L Wood Barrel Mass Finishing Machine
$4,999.99
Quantity: 1
Claim Your Seller Account
Inovatec JFH Series 300L Wood Barrel Mass Finishing Machine
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Inovatec JFH Series 300L Wood Barrel Mass Finishing Machine is a top-of-the-line solution for precision surface refinement. With a 300L capacity and four wooden finishing barrels, this machine offers efficiency and environmental friendliness. Operating at 0 to 40 RPM, it ensures uniform and sleek finishes on small pieces, bearings, electronic parts, and precision components. Expert-recommended for dry-finishing metals and plastics, it meets stringent industry standards for quality results.
Product Specifications
Additional Information
For the wooden barrels, experts recommend the dry-finishing of both metals and plastic. This machine refines the surfaces of your parts at 28 RPMs. As the barrels rotate, your target parts’ surfaces get rubbed by finishing abrasives.The finishing is uniform and sleek because parts and media rub consistently.
Specifications Barrel Size
1130 x 710 mm
Specifications Capacity
300 L
Specifications Motor Power
1.5 kW
Specifications Rotary Speed
0 to 40 rpm
Specifications Weight
250 kg
Surface Dimensions Surface Height
1120 mm
Surface Dimensions Surface Length
1660 mm
Surface Dimensions Surface Width
800 mm
