Inovatec JFH Series 600L Wood Barrel Mass Finishing Machine
Inovatec JFH Series 600L Wood Barrel Mass Finishing Machine
Enhance precision finishing with the Inovatec JFH Series 600L Wood Barrel Mass Finishing Machine.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Inovatec JFH Series 600L Wood Barrel Mass Finishing Machine
$8,999.99
Quantity: 1
Claim Your Seller Account
Inovatec JFH Series 600L Wood Barrel Mass Finishing Machine
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

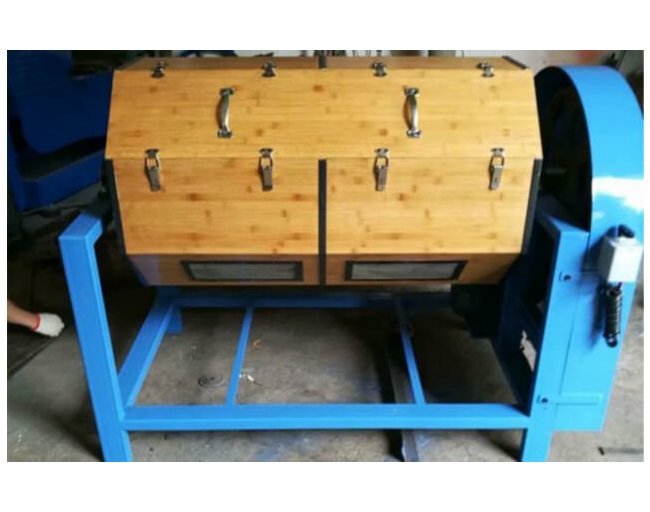

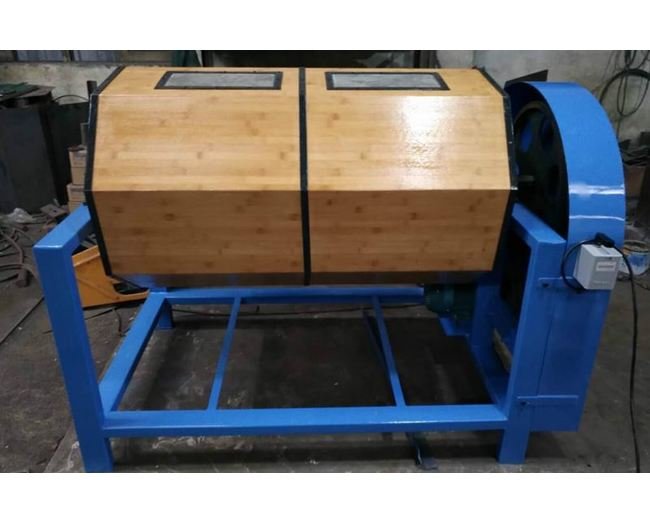

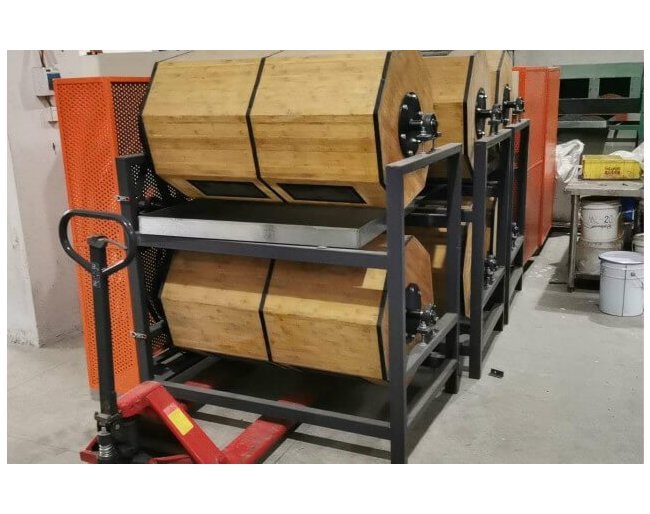

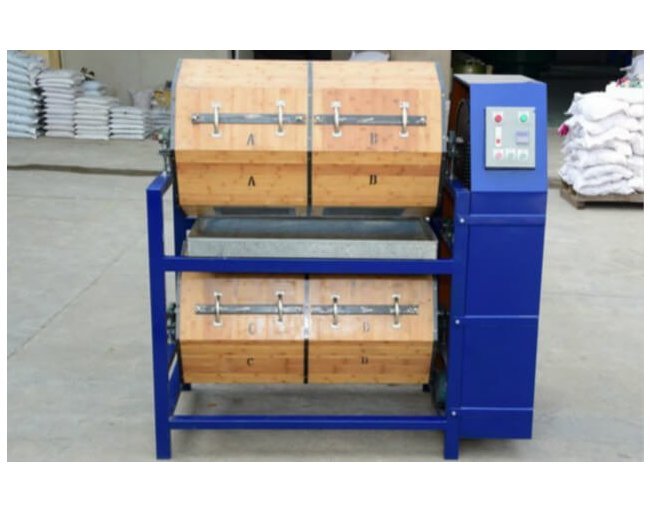

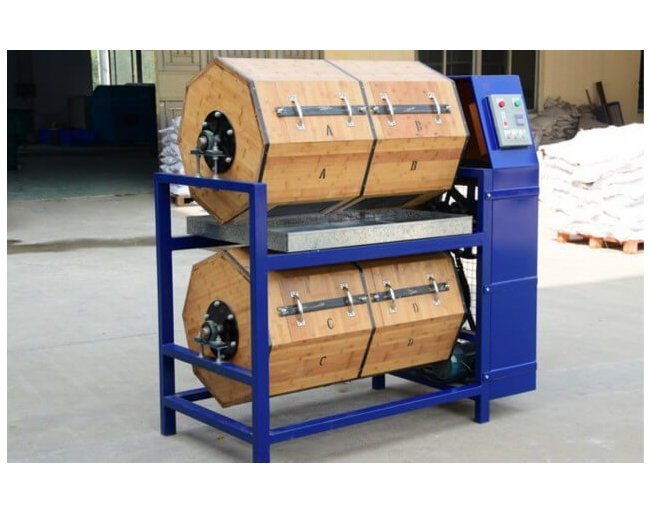

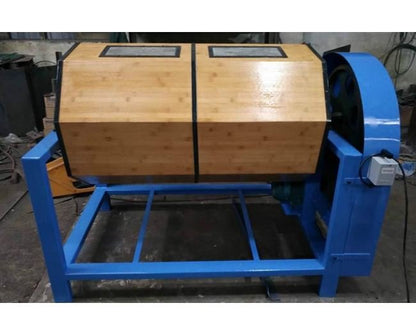

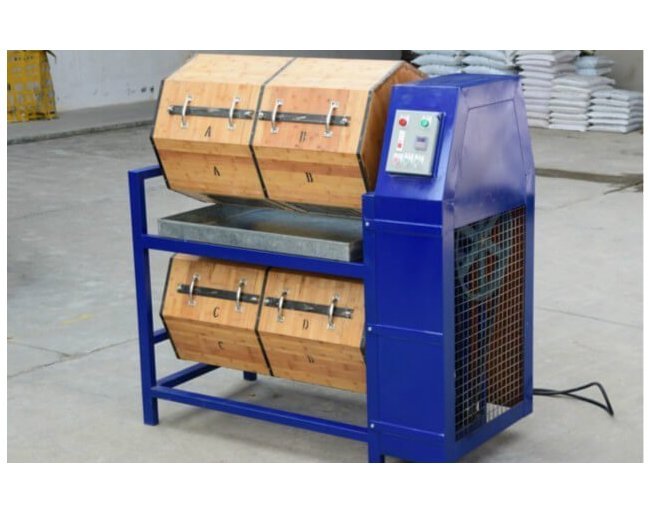

The Inovatec JFH Series 600L Wood Barrel Mass Finishing Machine is an environmentally friendly solution ideal for precision mass finishing. With a capacity of 600 liters and a motor power of 2.2 kW, this machine ensures efficient and uniform surface refinement for small pieces, bearings, and electronic parts. Featuring four wooden finishing barrels in a two-story design, it operates at speeds ranging from 0 to 40 rpm, delivering consistent and sleek finishing results. Expert-recommended for dry-finishing metal and plastic parts, this machine guarantees precision and quality in every batch.
Product Specifications
Additional Information
For the wooden barrels, experts recommend the dry-finishing of both metals and plastic. This machine refines the surfaces of your parts at 28 RPMs. As the barrels rotate, your target parts’ surfaces get rubbed by finishing abrasives.The finishing is uniform and sleek because parts and media rub consistently.
Specifications Barrel Size
1130 x 710 mm
Specifications Capacity
600 L
Specifications Motor Power
2.2 kW
Specifications Rotary Speed
0 to 40 rpm
Specifications Weight
400 kg
Surface Dimensions Surface Height
1680 mm
Surface Dimensions Surface Length
1800 mm
Surface Dimensions Surface Width
800 mm
