Internal Grabber® Universal Exhaust Extraction Nozzles
$49.99
Quantity: 1
Claim Your Seller Account
Internal Grabber® Universal Exhaust Extraction Nozzles
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

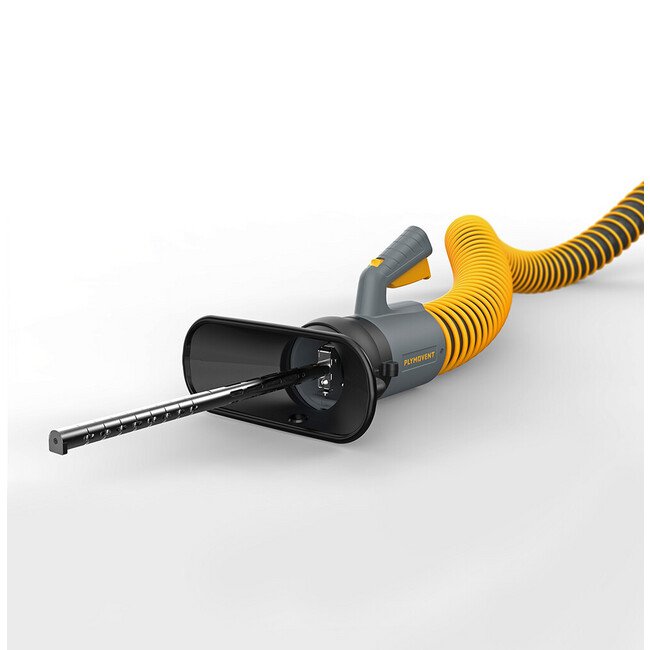

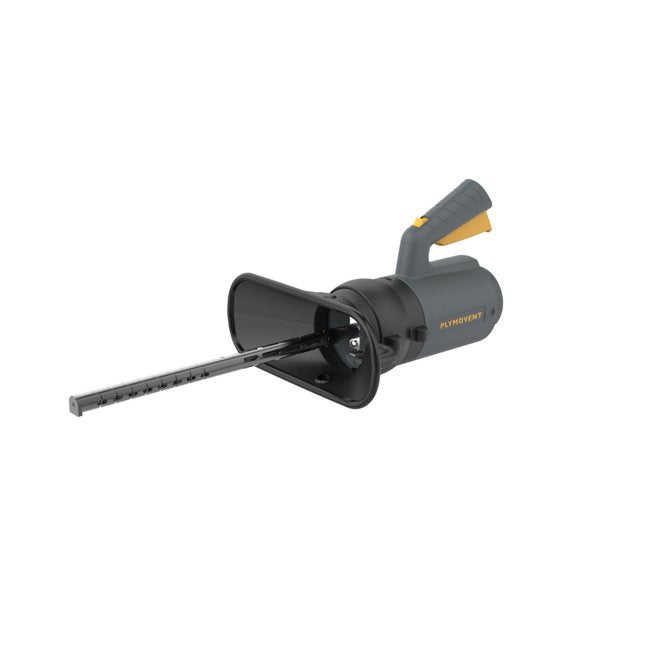

The Internal Grabber® nozzle of Plymovent is a new, universal nozzle that fits the shapes and positions of any car and pickup truck exhaust tailpipes. This patented nozzle makes other nozzles obsolete.One size fits all!The Internal Grabber® connects to standard horizontal discharges, dual tailpipes and even flush tailpipes that exit through the vehicle bumper. Due to the protruding beak and ergonomic body, the Internal Grabber® nozzle is easy to attach.The beak is composed of durable black passivated steel precision tube shackles, that easily grabs into any tailpipe. And the handle is made of an unique injection molded PA composite.
Product Specifications
Additional Information
Don't give exhaust gas a chance with one of these optionsThe Internal Grabber® can be attached to a combination of the following products:Exhaust hoses:High temperature hose: HTStandard temperature hose: STFlame retardant and vibration resistant: EG2Light-weight, high-temperature, double ply exhaust hose: SNF2Synthetic composite fabric hose up to 300ºC (572ºF): EF2Fixed extractors:Sliding Balancer Track: SBTStraight Rail: STRMini Rail Profile: MRPHose reels:Spring-operated hose reel: SERMotorized hose reel: MHRMotorized hose reel: MERHose Reel on RailHose Reel on Boom

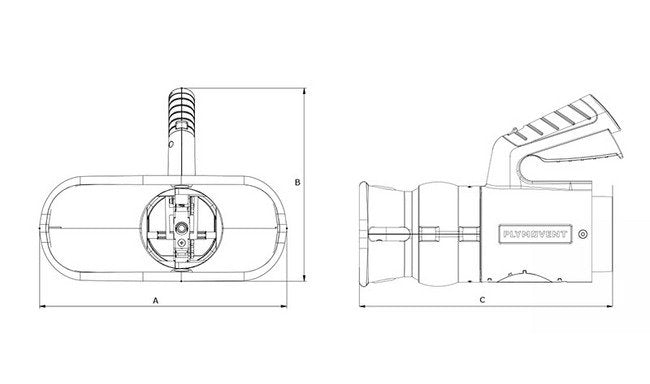

Dimensions Dimension A
13 in | 324 mm
Dimensions Dimension B
10 in | 523 mm
Dimensions Dimension C
13.5 in | 346 mm
Features

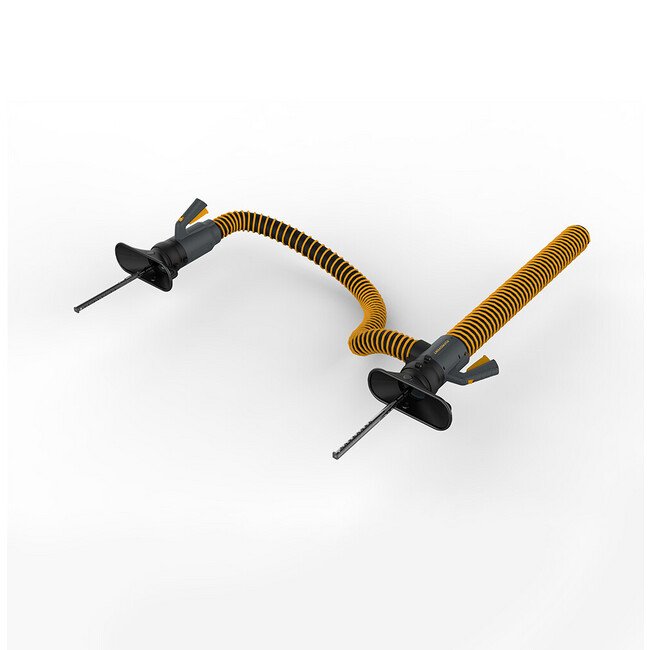

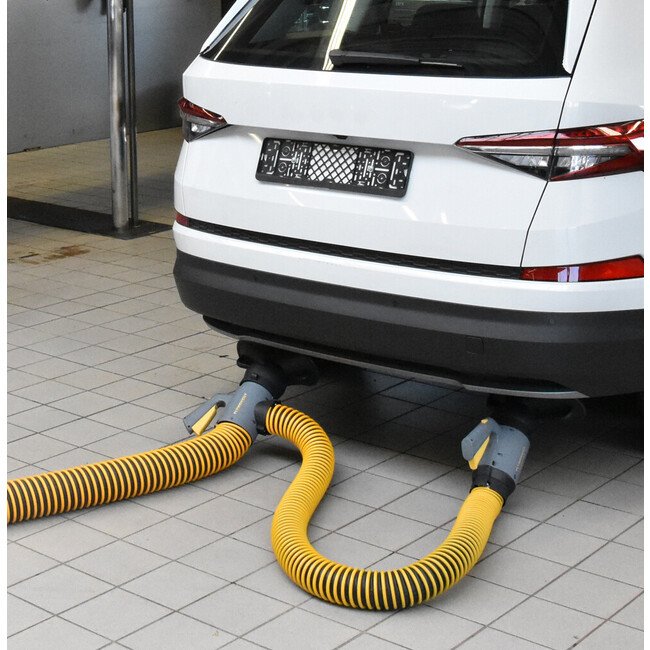

Adapts to any tailpipe shapeCompatible with a variety of hose diameters and any hose brandExtendable nozzle skirt with soft edge to optimize exhaust gas captureSelf-aligning squeeze grip for an effortless and smooth attachmentPivoting collar to accommodate dual tip tailpipesDual exhaust capabilityAutomatic damperRobust beakUnique extendable nozzle skirt with soft edgeTo optimize exhaust gas capture, the pivoting and extendable “nozzle skirt” is able to dock close to body work. Its unique design has a soft edge to protect the vehicle exterior.The 360° pivoting collar can accommodate a single tailpipe or dual tip tailpipes.Dual exhaust capabilityA second Grabber® can be easily added for dual tailpipe exhaust systems. With the “butterfly receiver” you can easily connect a secondary Internal Grabber® to the first, no tools needed. This is a very simple way to capture fumes at the source essential for the safety of you, your employees and your customers.Ergonomic and user-friendlyThis nozzle is an extremely ergonomic tool for all of your exhaust extraction needs. It features a self-aligning squeeze grip for an effortless and smooth attachment to the tailpipe. This grip is incredibly comfortable to your hand.It has a standard built in damper that opens and closes automatically.Compatible with a variety of hosesThe Internal Grabber® comes standard with a 4 inch (100 mm) hose connection. To accommodate other hose diameters, there are 3 optional adapters available. An adapter can be effortlessly connected to the Internal Grabber®. Besides the standard Internal Grabber® size of 4 inch (100 mm), the available adapters will host hose diameters of 3 inch (75 mm), 5 inch (125 mm), and 6 inch (150 mm).In addition, the Internal Grabber® is compatible with any hose brand.Quick and easy storageThe Internal Grabber® comes with a magnetic mountable storage “tripod”. This wall bracket provides you a safe and out of the way storage option.
Options And Accessories
0000120410 - Coupler Kit | 0000120412 - Wall Mount Coupler | 0000120421 - Wall Mount Internal Grabber® | 0000301953 - 100 > 75 mm (4 in. > 3 in.) Reducer | 0000301954 - 100 > 125 mm (4 in. > 5 in.) Increaser | 0000301955 - 100 > 150 mm (4 in. > 6 in.) Increaser
Order Information Article Number
120423
Order Information Numberpackage
1
Physical Dimensions And Properties Color
Iron Gray with Yellow Support Colors
Physical Dimensions And Properties Housing Materials
PA-6 (Nylon) with 15% Glass Filling
Physical Dimensions And Properties Maximum Operating Temperature
150 ºC | 300 ºF
Physical Dimensions And Properties Maximum Relative Humidity
80 %
Physical Dimensions And Properties Maximum Relative Humidity Of
80 %
Physical Dimensions And Properties Net Weight
3.1 kg | 6.8 lb
Physical Dimensions And Properties Outdoor Use Allowed
No
Physical Dimensions And Properties Storage Temperature
-5 to +30 ºC | 23 to 100 ºF

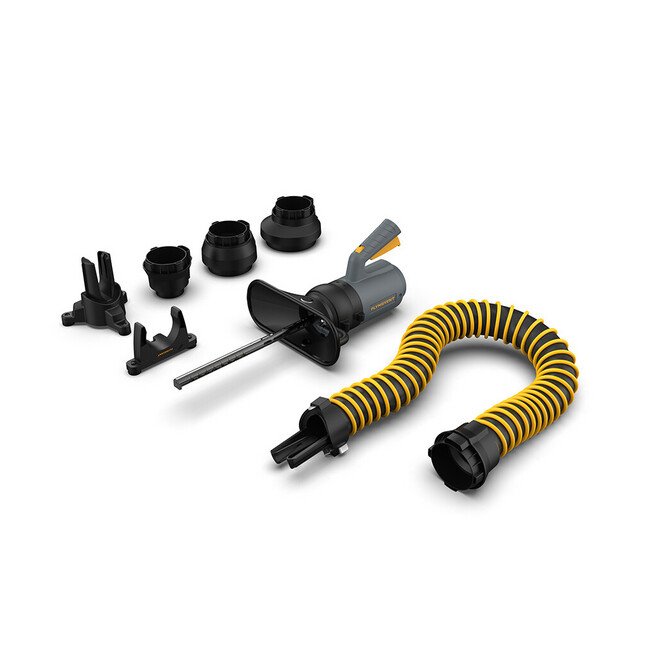

Scope Of Supply
Internal Grabber® | Wall Mount Tripod with Magnetic Feet
Shipping Data Country Of Origin
Thailand
Shipping Data Gross Weight
4 kg | 8.8 lb
Shipping Data Harmonized Tariff Code
84219990
Shipping Data Packing Dimensions
16 x 16 x 9 in | 400 x 400 x 220 mm
Specifications Recommended For
Garages Servicing Different Vehicle Types
Where Used
All vehicles with a tailpipe of Ø 25 to 75 mm (1 to 3 in.)
