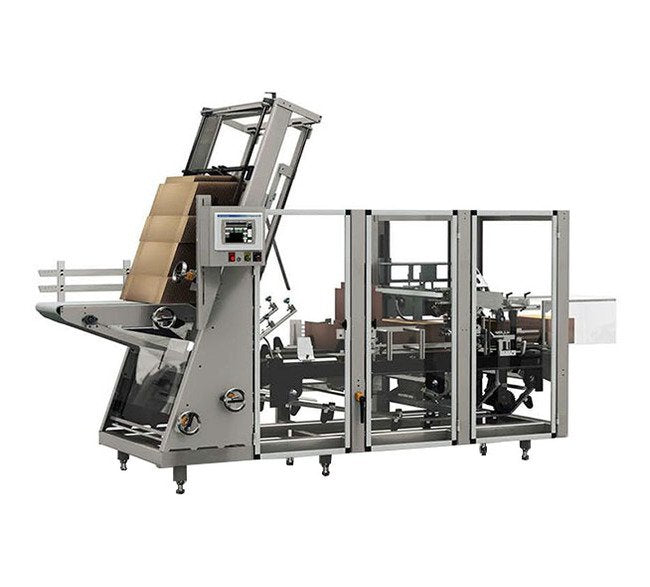

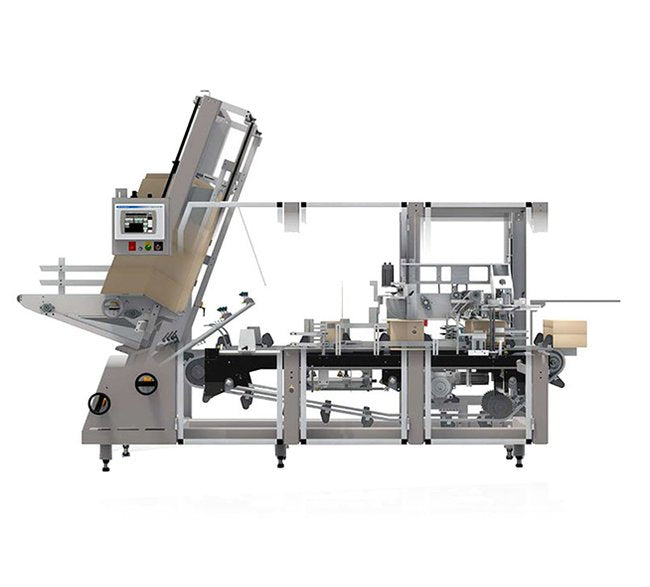

Invex® IM Case/Tray Packer - Up to 20 Cases Per Minute Speed
Invex® IM Case/Tray Packer - Up to 20 Cases Per Minute Speed
SKU:MAC-8b9d45
Experience unprecedented efficiency and flexibility with the Invex® IM Case/Tray Packer. Achieve speeds of up to 20 cases per minute with advanced design and control technology.
Regular price
$28,999.00
Regular price
Sale price
$28,999.00
Unit price
per
Initiate Order
Invex® IM Case/Tray Packer - Up to 20 Cases Per Minute Speed
$28,999.00
Quantity: 1
Claim Your Seller Account
Invex® IM Case/Tray Packer - Up to 20 Cases Per Minute Speed
$28,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Invex® IM Case/Tray Packer offers unparalleled efficiency and flexibility for mid-range applications. With a typical speed range of 0 to 20 cases per minute, this packer combines advanced design with positive drive technology to maximize performance. Featuring a powder-coated steel frame, NORDSON® Glue System, and Rockwell Automation control, it ensures precise and reliable packaging. From tool-free changeovers to PackML compatibility, this packer delivers fast, repeatable adjustments and reliable operation, meeting the stringent requirements of institutional buyers.
Product Specifications
Case Size Range Case Length
8 to 23 in
Case Size Range Case Vertical Size Range A
4 to 12 in
Case Size Range Case Vertical Size Range B
6 to 16 in
Case Size Range Case Width
8 to 22 in
Case Size Range Note For Case Size Range
L = Travel Direction
Features Features
Your Requirements, Your Package, Our Solution.The Invex® IM blends the perfect combination of technology and design to achieve high performance for mid-range case packing applications.Knowledge and experience based design ensures precise control over corrugated materials, your product, and the machine motions needed to achieve quality packages and production efficiency.Your Requirements - Our first job is to listen. Requirements regarding your product, speeds, environment and other factors are critically important for us to understand.Your Package - Your package must protect your product, be low cost, run efficiently and promote your brand.Our Solution - Our solutions attend to every detail to achieve efficiency and reliability while maintaining the integrity of your product and package.Efficient Pack Pattern Collating and LoadingOffering maximum flexibility and adaptability for rapidly changing product life cycles, the Invex® IM performs to meet production demands.Stage Push - Horizontal collation process used for handling cartons, jugs, and bottles when vertical stacking is not required.Pick and Place - Ideal for products such as tapered cups that cannot be pushed one against the other. Vacuum or mechanical end-effortors aredesigned specific to application requirements.Up Stacker, Down Stacker - Easy and cost effective method ofvertically stacking cartons, tubs, and more.Intuitive interface combined with positive servo drives simplify and enhance changeovers and operation.Recipe control of servo motor motions and timing.Fast, repeatable changeovers and simple adjustments when products or materials vary slightly.Repeatable size adjustments cover a broad size range.Electronic jog function assists with troubleshooting.On-board diagnostics provide simple troubleshooting from the HMI.PackML and PackTag-ready with standards based connectivity.
Power Alternating Current Ac Voltage
480 V
Power Frequency
50 Hz | 60 Hz
Power Note For Power
Second 480 Alternating Current (AC) Voltage drop for glue unit. Other power sources available.
Power Number Of Phase
3
Specifications Adjustments
Tool-free changeover, HMI selectable recipes, threaded screws, handwheels, and hand knobs with position pointers and digital scales.
Specifications Air Pressure
90 psi | 6.2 bar
Specifications Brand
Douglas | Invex® IM
Specifications Case Types
Knock-down cases (pre-glued manufacturer's flap) and trays.RSC, HSC or economy flaps (2" min to 6" max flap length).
Specifications Electrical
Rockwell Automation (AB) programmable logic controller, servo motors, drives and PV+ HMI. NEMA 12 wiring and enclosures. Washdown (optional).
Specifications Framefinish
Powder coated tubular and fabricated cold rolled steel. Gray metallic, DuPont 616.
Specifications Glue System
NORDSON® Mesa⢠Series 9 Glue System. NORDSON® ProBlue® 10 Optional.
Specifications Guarding
Category 3 guarding. Full length polycarbonate with extruded anodized aluminum frames.
Specifications Magazine Capacity
4 ft
Specifications Optional Magazine Capacity
6 ft
Specifications Package Type
Case | Tray
Specifications Speed
0 to 20 cases/min
