IST MFS02.PEXP.0 Flow Sensor - Temperature Range -20 to +80 ºC
IST MFS02.PEXP.0 Flow Sensor - Temperature Range -20 to +80 ºC
SKU:FLO-288d50
Discover precision and efficiency with the IST MFS02.PEXP.0 Flow Sensor, RoHS compliant with a -20 to +80 ºC temperature range.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
IST MFS02.PEXP.0 Flow Sensor - Temperature Range -20 to +80 ºC
$89.99
Quantity: 1
Claim Your Seller Account
IST MFS02.PEXP.0 Flow Sensor - Temperature Range -20 to +80 ºC
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

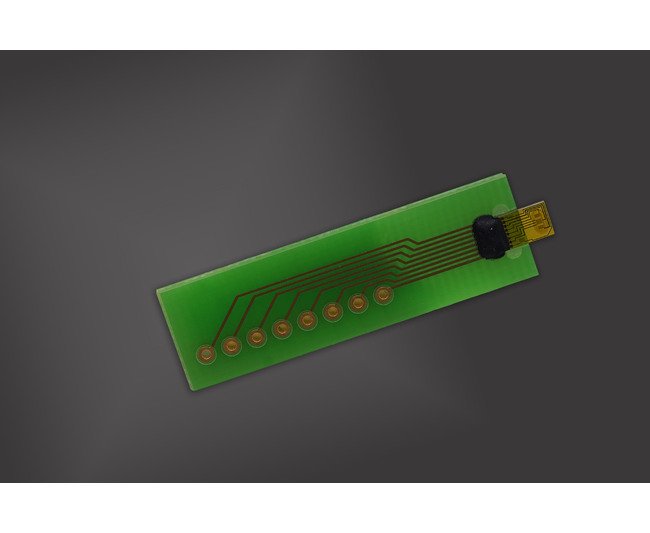

The IST MFS02.PEXP.0 Flow Sensor is a top-tier innovation by Innovative Sensor Technology's USA Division, designed with precision and efficiency in mind. With RoHS compliance and a temperature range from -20 to +80 ºC, this sensor guarantees accuracy and safety. Featuring fast response sensitivity, a flow range of 0 to 1.5 m/s in Full Bridge Mode, and dimensions of 5.0mm x 3.4mm x 0.5mm, it excels in performance and reliability for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Height
0.5 mm
Dimensions Length
5.0 mm
Dimensions Width
3.4 mm
Flow Range Flow Range Cta Mode
0 to 150 m/s | 0 to 10 L/min
Flow Range Flow Range Full Bridge Mode
0 to 1.5 m/s | 0 to 100 mL/min
Printed Circuit Board Pcb Dimensions Printed Circuit Board Pcb H
1.0 mm
Printed Circuit Board Pcb Dimensions Printed Circuit Board Pcb L
34.4 mm
Printed Circuit Board Pcb Dimensions Printed Circuit Board Pcb W
10.8 mm
Specifications Connection
Bonding Pads
Specifications Manufacturer Part Number
MFS02.PEXP.0
Specifications Old Product Code
050.00267
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Range
-20 to +80 ºC
